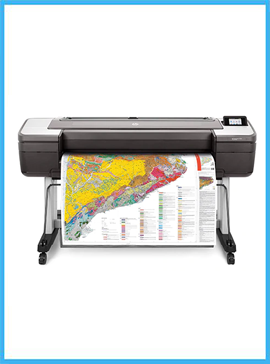

HP DesignJet T1700dr Postscript Printer 44"
-
HP DesignJet T1700 Printer series
Securely, efficiently, and accurately produce quality CAD and GIS applications up to 44 inches.- Advanced security features, authentication, and device/fleet/security management
- Reproduce layers of data with the Adobe PDF Print Engine¹
- Bright color and bold image quality—even on plain papers—with HP Bright Office Inks
- High-density printheads with 2400 nozzles per inch enable 0.1% line accuracy²
- Work uninterrupted with dual-roll options³
- Easily print project sets and PDF documents with HP Click printing software
1Requires purchase of HP DesignJet T1700 PostScript® models or optional HP DesignJet PostScript/PDF Upgrade Kit. The Adobe PDF Print Engine (APPE) is Adobe’s high speed, high fidelity print platform. Version 4 extends APPE’s leading edge for print reproduction with new performance efficiencies and breakthrough rendering features. APPE 4 enables printers to increase workflow efficiency and capitalize on the profit potential of innovations in inkjet print technology. To learn more, visit http://www.adobe.com/products/pdfprintengine.2±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23° C (73° F), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Matte Film and HP Bright Office Inks.3Dual-roll printing is available on the HP DesignJet T1700dr 44-in Printer and HP DesignJet T1700dr 44-in PostScript® Printers.-
- Model size
- 44 in
- Functions
- Speed specifications
-
- Print time line drawing (economode, D plain paper)
- 26 sec/page[1]
- Print speed line drawing (economode, D plain paper)
- 116 pages per hour[1]
- Print speed
- 116 D/hr, 26 sec/D[1]
- Memory specifications
-
- Memory
-
- 128 GB (virtual)[4]
- Internal Storage
-
- 500 GB self-encrypting
- Technical specifications
-
- Print quality (best)
- Color: Up to 2400 x 1200 optimized dpi
- Print technology
- HP Thermal Inkjet
- Number of print cartridges
- 6 (cyan, magenta, yellow, photo black, matte black, gray)
- Ink types
-
- Dye-based (C, M, Y, PK, G)
- pigment-based (MK)
- Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
http://www.hp.com/go/learnaboutsupplies
- Non-printable area (cut-sheet)
- 0.12 x 0.67 x 0.12 x 0.12 in
- Guaranteed minimum line width
- 0.0024 in (ISO/IEC 13660:2001(E))[3]
- Line accuracy
- ±0.1%[2]
- Maximum optical density (black)
- 2.15 maximum black optical density (6 L*min)
-
-
- Finished output handling
-
- Sheet feed, two automatic roll feeds, automatic roll-switching, media bin, automatic horizontal cutter
- Media types
- Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl)
- Media sizes standard (sheets, rolls)
-
- 11 to 44-in
- Media sizes, custom
-
- 8.3 x 11 to 44 x 66 in
- Roll external diameter
- 5.3 in
- Media thickness
- Up to 31.5 mil
-
Connectivity
-
- HP ePrint capability
- Yes
- Printing path
- Direct printing from USB flash drive, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint for MacOS and for iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android
- Connectivity, standard
-
- Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab)
- USB Type-A host port
- Print languages
- Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4
-
Power and operating requirements
-
- Power consumption
- < 100 W (printing); < 24 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off)
- Operating temperature range
- 41 to 104ºF
(5 to 40ºC )
- Operating humidity range
- 20 to 80% RH
-
Dimensions and weight
-
- Minimum dimensions (W x D x H)
- 70.9 x 27.4 x 39.3 in
- Weight
- 163 lb
-
What's included
-
- Warranty
- One-year limited hardware warranty
- What's in the box
- HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindles (x2), setup poster, introductory information, warranty, power cords, label kits
- Software included
-
- HP Click
- HP Utility for Mac and Windows
- HP WebJet Admin
- HP Embedded Web Server
- HP JetAdvantage Security Manager
- HP Partner Link
- HP MPS
