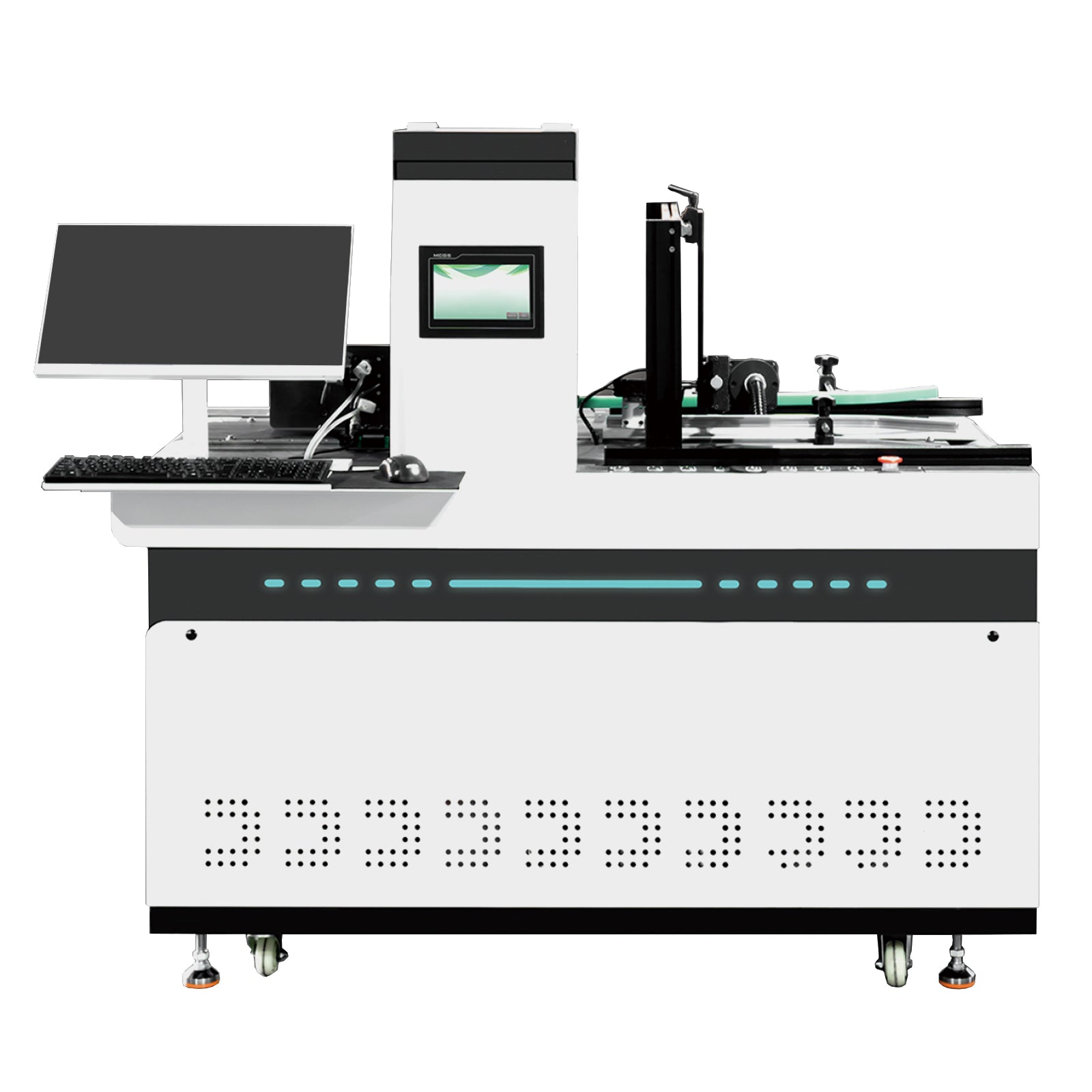

• UV One Pass Digital Printer with 90°/0° Printing
1 1

Wide Image Solutions

UV One Pass Digital Printer with 90°/0° Printing

$51,998.70
$51,998.70
    UV One Pass Digital Printer with 90°/0° Printing

    Tech Specs

    Features

    • High-precision color reproduction
    • Front and side double-sided printing
    • Plasma surface treatment
    • High-speed plateless printing
    • Heightened printing: 1.5 cm
    • High-power UV curing

    Specifications

    Parameter Specification
    Printhead Toshiba industrial printhead
    Printing accuracy 300 / 600 dpi
    Number of colors supported by a single nozzle 2 colors
    Single nozzle width 0–54 mm (0–2.13 in)
    Printing speed 0–30 m/min (0–98 ft/min)
    Inkjet technology Micro-piezoelectric technology
    Ink supply Negative pressure circulating ink supply
    Ink type UV eco-friendly ink
    Color settings CMYK + White + Varnish (Optional)
    Feed width 0–240 mm (0–9.45 in)
    Feeding method Automatic / Manual (Optional)
    Print media thickness 0–130 mm (0–5.12 in) (Optional)
    Drive system Servo motor drive
    Voltage 220 VAC, 50 Hz
    Maximum power 600 W
    Environmental requirements Temperature: 50°F–95°F (10°C–35°C)
    Relative humidity: 20%–80% (non-condensing)
    Operating noise 60–80 dB
    Operating system Win7 / Win10 / Win11
    Data interface Ethernet
    Data transmission USB 3.0 (compatible with USB 2.0)
    Frame structure Steel frame with Broussoentia papyrifera beam
    Supported image formats PDF / TIFF / JPG
    Compatible materials Plastic cups, plastic bowls, food containers, biodegradable food containers, stainless steel cups, glass cups, and other materials such as PP, PE, PC, etc.
    Printer dimensions (L x W x H) 138 x 122 x 120 cm (54.3 x 48.0 x 47.2 in)
    Net weight 177.8 kg (392 lbs)
    Packaging method Solid wooden crate
    Wooden case dimensions (L x W x H) 155 x 135 x 185 cm (61.0 x 53.1 x 72.8 in)
    Gross weight 278 kg (613 lbs)



    Application:
    Suitable for metal, coated paper, plastic and other materials.
    Customized for front and side double-sided UV printing of finished products, widely used in various industries.
