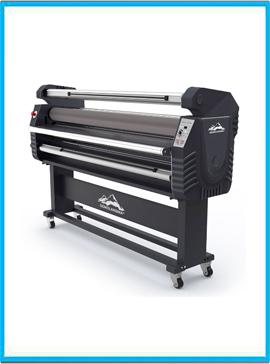

67in Wide Format Full-auto Roll-to-roll Electric Type Cold Laminator, with Heat Assisted
67in Wide Format Full-auto roll-to-roll Electric Type cold laminator, with Heat Assisted
Lite E series is new designed Full-auto roll to roll Electric type lamination machine; The accurate CNC metal cutting program secure align laminating and quality finishing; Ideal for wide format laminating or mounting application use.
Features:
1. Full electric driven lift up system
2. Drop in type interchangeable 3" aluminum shaft
3. Membrane control panel
4. Variable speed control
5.Forward and reverse direction control
6. E-stop and photocell installed for safety
7. Both auto and foot pedal switch mode
8. Thermal cut off switch in case over heat
9. Removable pressure plate
10. Heavy duty castor with brake
11. Equipped with side cutter
12. Stand assembled at customer site
| Specification | |
| Max. Working Width | 1700mm(67in) |
| Variable Working Speed | 0-20m / min (0 - 65.6ft) |
| Max. Nip Opening | 35mm(1.38in) |
| Working Temp | 40℃ (104℉) (Default max temp.) |
| Alarm Temp | 60℃ (140F) |
| Roller Diameter | 120mm(4.72in) |
| Top Roller Material | Silicone rubber |
| Bottom Roller Material | Silicone rubber |
| Drive Motor | DC110V /120W |
| Power Consumption | 2500W |
| Power Requirement | AC110V/50-60Hz ; AC230V/50-60Hz |
| lift up system | Electric type |
| Forward / Reverse | Yes |
| Foot Pedal | Yes |
| Auto Rewind Liner Pickup | Yes |
| After Laminating Pickup | Yes |
| Emergency Stops | Yes |
| Machine Size | 2120mm x 625mm x 1350mm(83.5in x 24.6in x 53in) |
| Net Weight | 240kg(529lb) |
| Package | Wooden box |
| Packing Size | 2310mm x 650mm x 1520mm(91in x 25.6in x 60in) |
| Gross Weight | 295kg(650lb) |
