Tech Specs
Description

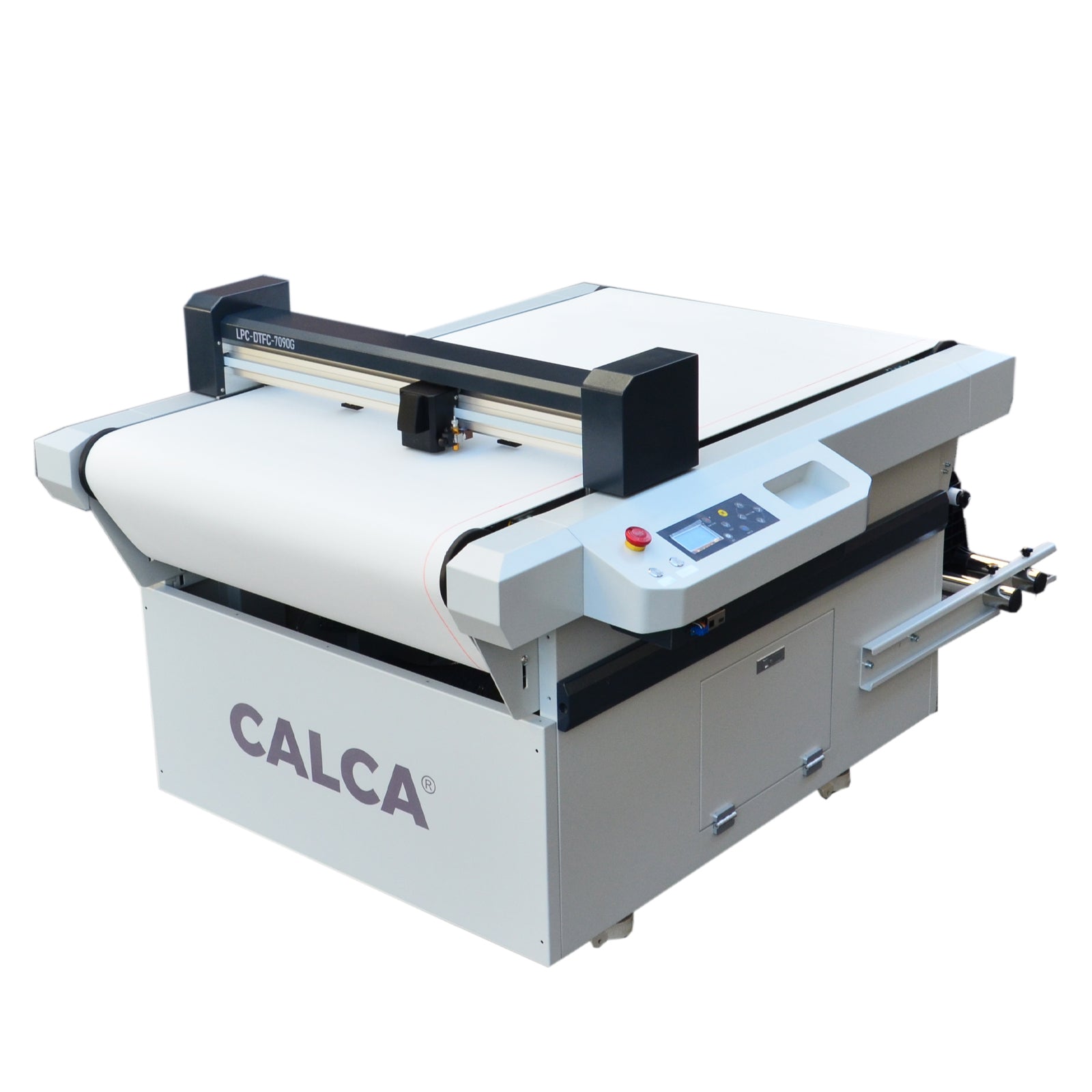

Flatbed cutter with conveyor feeding, a special purpose auto fed flatbed digital cutter for DTF industry with features optimized according to characters of material applied in the DTF field.
Super easy installation, one-key operation and high efficiency make CALCA 6090G a right-hand man for DTF, Heat transfer apparel industries.
Batch cutting, guarantee of high efficiency.
Gang sheets are widely used in the production of custom dtf heat transfers – both screen printed and digitally manufactured. CALCA roll CNC Cutter can maximize your efficiency and minimize the cost.
Compatible with: Cadlink, AutoCAD, CorelDRAW, and CALCA DTF Fairy RIP Software (Print-to-cut).
Spare Part Package includes:
-
1set x User manual
-
2pcs x Blade holder
-
6pcs x Blade
-
1set x Allen wrench
-
1pcs x Power Cable
-
1pcs x USB Cable
-
1pcs x U Disk
-
1pcs x SignWorkPro
-
1pcs x Fan with silencer
Application:
Used for fraffic signs industry, vehicle decoration, automotive aftermarket, sign makers, packaging, apparel
signing, shoes designing, bags designing, composite industry, offset printing, samples making , POP displays, and more.
It is an efficient solution of perforation cutting, half cutting, creasing, marking, etc.



Specifications
| Model | LPC-DTFC-6090G |
| Power Input | AC 110V, 60Hz |
| Power Consumption | 2.2kw, 20A |
| Max. Media Width | 810mm(31.9") |
| X axis working size | 710mm(30") |
| Y-axis working size | 910mm(35.8") |
| Material Thick | 0.05-1.5mm (0.001" x 0.06") |
| Max Cutting Speed | 600mm/s (24"/s) |
| Cutting pressure | 600g(21oz) |
| Software resolution | 0.025mm (0.001") |
| Mechanical resolution | 0.0125mm (0.0005") |
| Cutting pressure setting | Adjustable per 1 gram |
| Minimum character size | English Arabic characters are about 1mm-2mm(0.04" x 0.08") |
| Interfaces | USB2.0 U Disk |
| Method to Fix Media | Vacuum Table |
| Cutting Force Setup | Adjustable in Every 1G |
| Cutter Blade Diameters | Φ2.0mm (0.08") |
| Cutter Blade Angles | 30°, 45°, 60° |
| Dotted Lines Cutting | Included |
| Drive | AC Servo |
| IOS | Win10 / 8 / 7 / XP |
| Memory Buffer | 2MB |
| CAD/CAM Software | Windows Driver, SignWorkPro, CADtoPlotpro |
| Compatible Software | Cadlink, AutoCAD, CorelDRAW, CALCA DTF Fairy RIP |
| File Format | DXF |
| Port in Standard | USB, RS-232 |
| Registration Marks Recognition | CCD Camera |
| Cutter Holder | 1 |

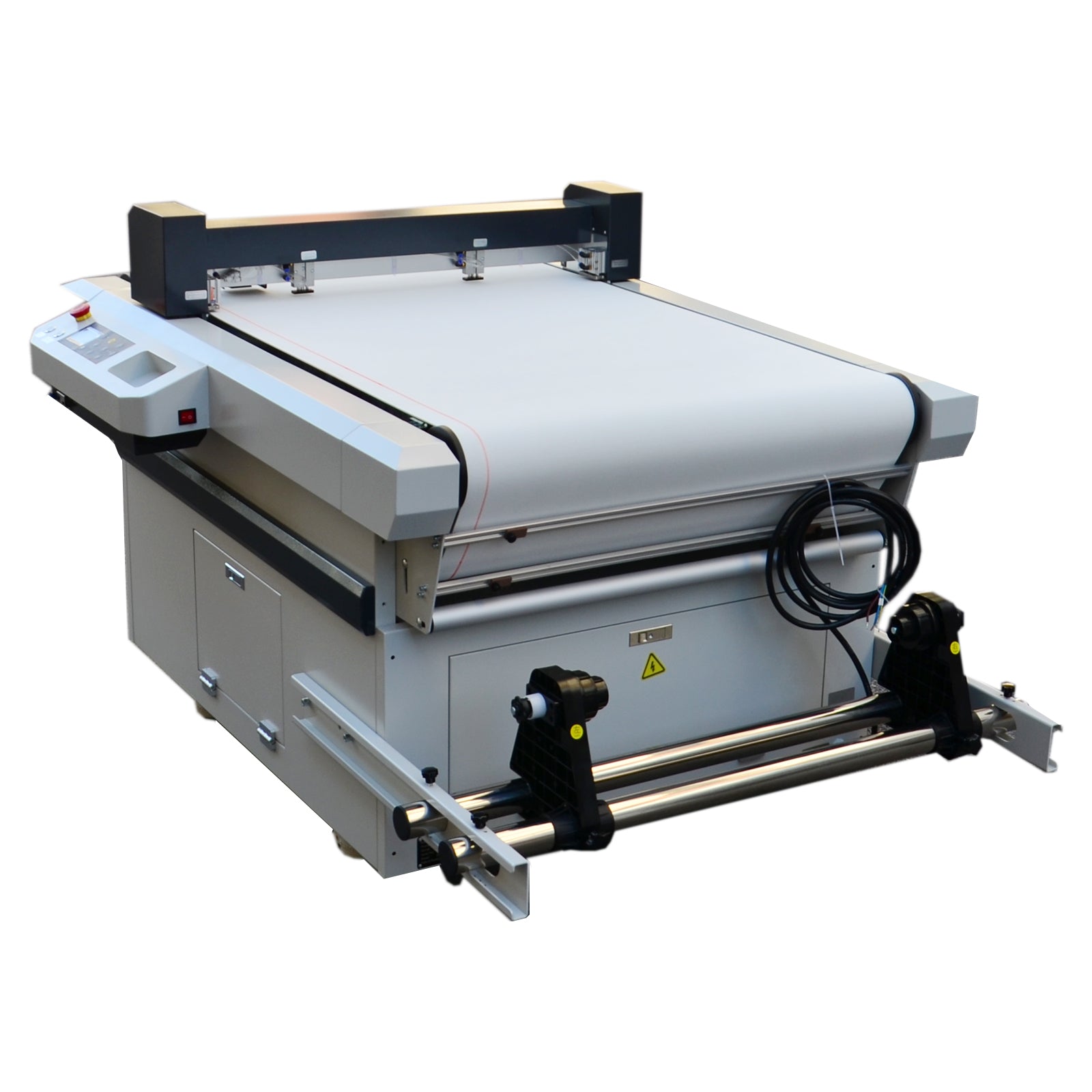

| Roll Media Bracket | Included |
