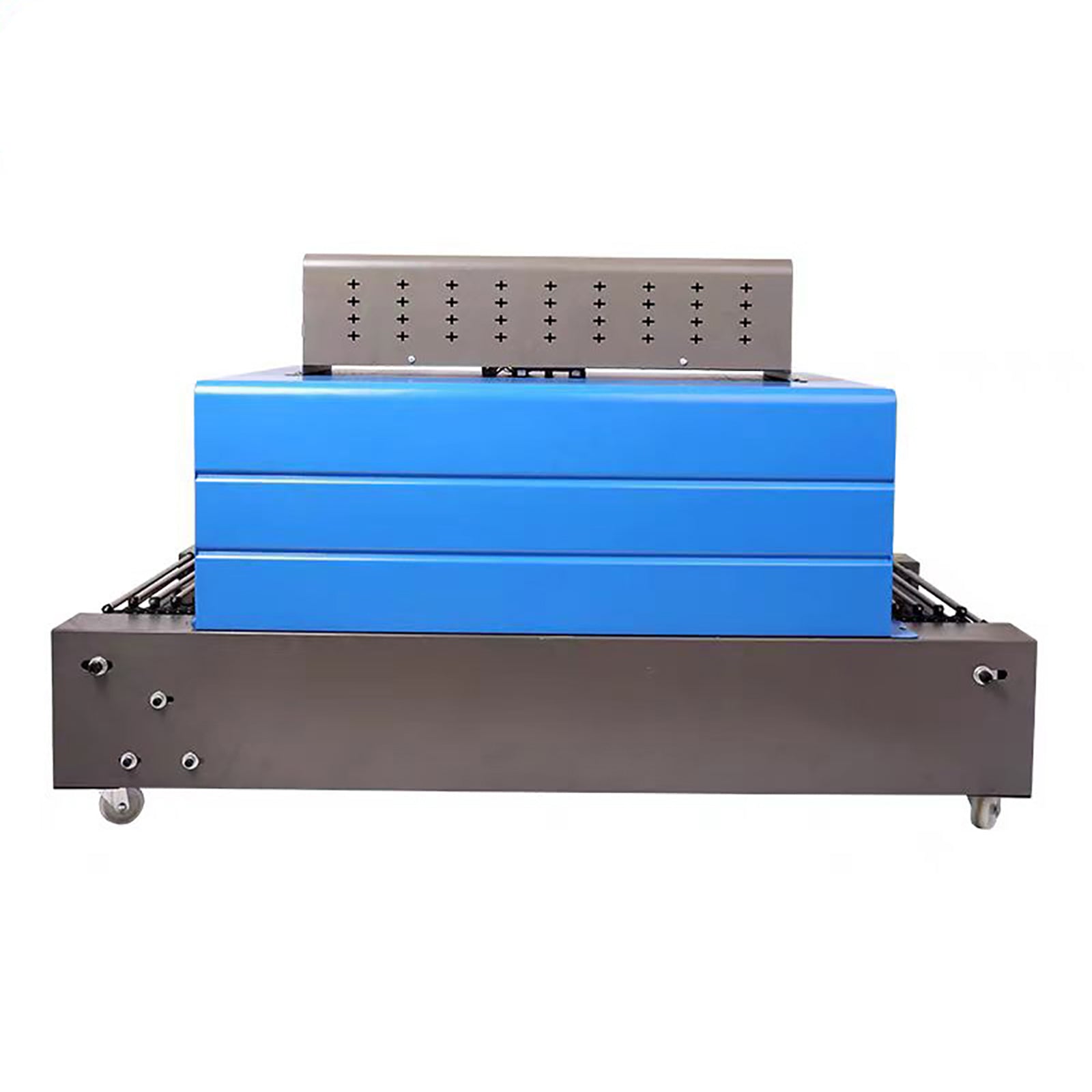

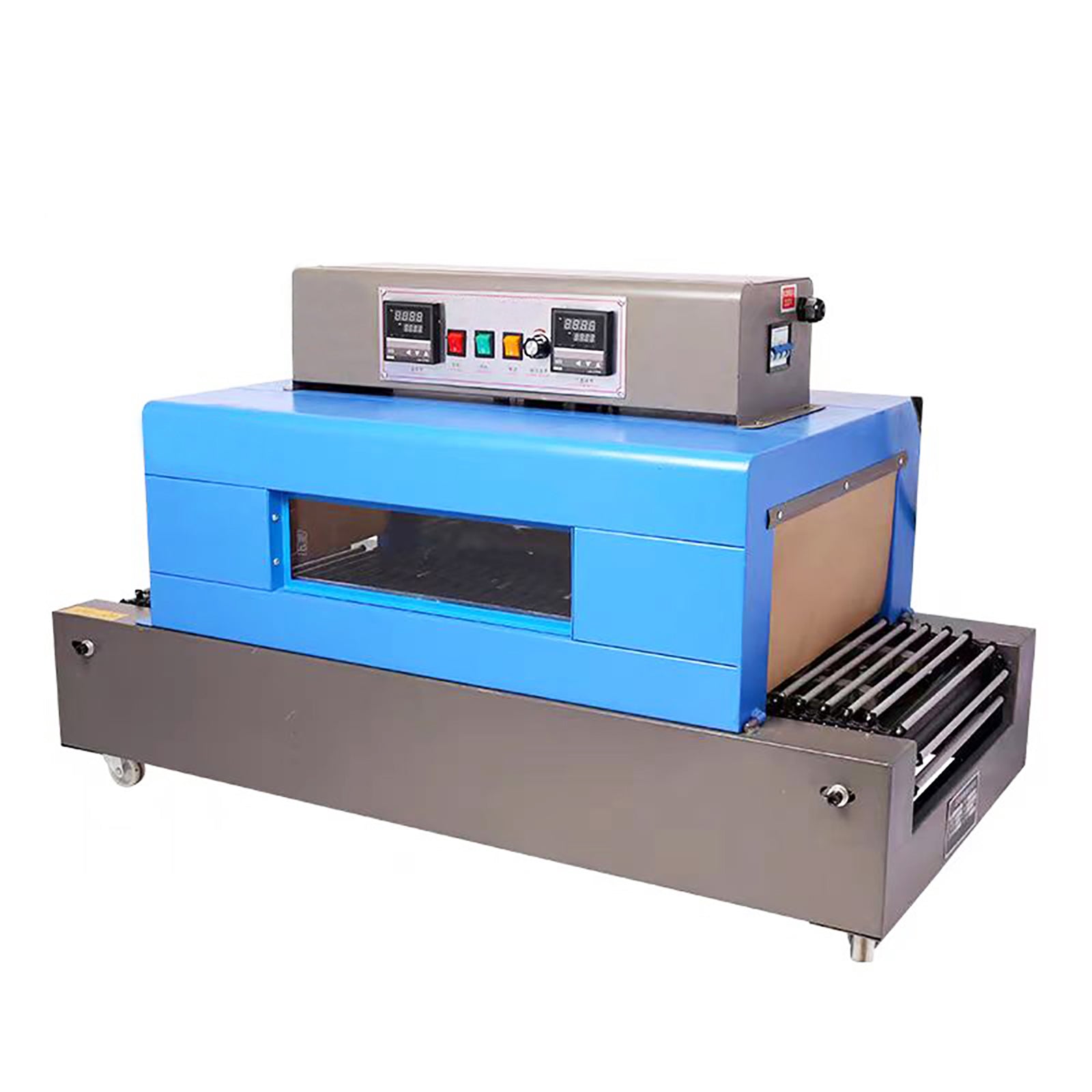

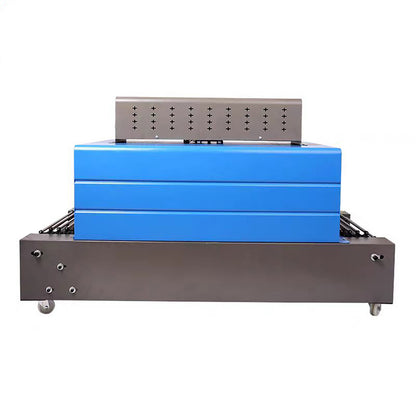

US Stock, 15.7 x 7.9in(40 x 20cm) Thermal Heat Shrink Packaging Machine Tunnels PP/ POF/ PVC for Channel Letter Package (AC220V, 1-phase)

$1,298.70
$1,298.70
    US Stock, 15.7 x 7.9in(40 x 20cm) Thermal Heat Shrink Packaging Machine Tunnels PP/ POF/ PVC for Channel Letter Package (AC220V, 1-phase)
    US Stock, 15.7 x 7.9in(40 x 20cm) Thermal Heat Shrink Packaging Machine Tunnels PP/ POF/ PVC for Channel Letter Package (AC220V, 1-phase)

    Tech Specs

    Features

    1. Visible skylight, high temperature resistant and explosion-proof
    2. Intelligent temperature control and the use of digital temperature controllers make the temperature in the furnace more stable, the shrinkage effect is better, and power is saved.
    3.The entrance has a high-temperature cloth as a shield, making the equipment safer during operation.
    4. It can be well sealed, moisture-proof, anti-pollution - shrink film under the control of the device shrinks tightly wraps products or packages, which is suitable for the packaging of regular or irregular items.
    5. Safety - Shrink-wrapped packaging provides a cushioning effect that protects the item from external shocks and reduces the likelihood of product
    6. A wide range of applications - used for food, beverages, candy, stationery, hardware tools, daily necessities, chemical products and other industries.

    Specifications

    Item Code CS-DBJ-4020
    Voltage 110VAC / 220VAC,1-phase
    power 6.6KW
    Conveyor loading 22lb(10kg) maximum
    Conveyor speed 0-10m/min  Adjustable
    Shrink film PVC, POF, PP
    Shrinkage temperature 0~300℃
    Tunnel size 30.7*15.7*7.9in (780*400*200mm)
    Machine size 43.3*22.4*26.4in (1100*570*670mm)
    Packing size 45.3*24.4*29.9in (115*62*76cm)
    Vet weight 132lbs(60kg)
    Gross weight 238lbs(108kg)



    Shrink film temperature/Time comparison table
    Shrink film Polyvinyl Chloride Polypropylene Polyolefin Shrink Film
    Abbreviation PVC PP POF
    Thickness 0.02-0.06MM 0.02-0.04MM 0.03-1.10MM
    Heating time 5-10S 6-12S 8-16S
    Shrink chamber temperature 110-130℃ 130-170℃ 130-170℃
