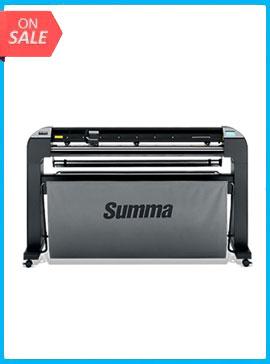

Summa Tangential S2 T120 48" Vinyl Cutter

Summa Tangential S2 T120 48" Vinyl Cutter

  • $7,589.99
  • Guardar $410


FIND EXCELLENCE IN TANGENTIAL CUTTING

The vinyl cutters of the T Series are part of Summa's top-level S Class 2 range. The T Series combines the precision of a flatbed cutter with the ease and speed of a roll-fed cutter. All of this by using our legendary True Tangential cutting head. The T Series simply cuts with more force and accuracy than any cutter in its class.

CUTTING TECHNOLOGY


Nowadays, information about cutting technology in cutting plotters is everywhere around us. It reaches us through professional trade magazines, brochures, social media or simply through word of mouth marketing. And perhaps a little bird might have told you about drag knife or tangential knife technology. But despite the overload of information from the above-mentioned channels, what exactly are these cutting technologies all about?


HOW DOES DRAG KNIFE TECHNOLOGY WORK?


The most frequently used cutting technology for plotters is the drag knife or swivel knife technology. To explain what it is and how it works I generally use the tractor plough as an analogy.

The first factor they have in common is that both tools, drag knife and plough, are being ‘dragged’ through their substrate. For the plough, this will be earth or dirt while for the drag knife this will be vinyl or foil.
The second factor they have in common is that both tools are controlled by external elements. For the plough, it will be the tractor, which makes a movement by literally ‘pulling’ the plough to orientate itself in the correct direction. For the drag knife, it will be a combination of the cutting head movement and the media movement. Both movements enable the knife facing in the right direction because the knife itself can rotate freely in the knife holder.

CUTTING TECHNOLOGY


Nowadays, information about cutting technology in cutting plotters is everywhere around us. It reaches us through professional trade magazines, brochures, social media or simply through word of mouth marketing. And perhaps a little bird might have told you about drag knife or tangential knife technology. But despite the overload of information from the above-mentioned channels, what exactly are these cutting technologies all about?


HOW DOES DRAG KNIFE TECHNOLOGY WORK?


The most frequently used cutting technology for plotters is the drag knife or swivel knife technology. To explain what it is and how it works I generally use the tractor plough as an analogy.

The first factor they have in common is that both tools, drag knife and plough, are being ‘dragged’ through their substrate. For the plough, this will be earth or dirt while for the drag knife this will be vinyl or foil.
The second factor they have in common is that both tools are controlled by external elements. For the plough, it will be the tractor, which makes a movement by literally ‘pulling’ the plough to orientate itself in the correct direction. For the drag knife, it will be a combination of the cutting head movement and the media movement. Both movements enable the knife facing in the right direction because the knife itself can rotate freely in the knife holder.

WHAT ARE THE ADVANTAGES?


While the drag knife technology has its limitations, it is still a powerful and widely used technology. That is why the SummaCut Series is one of the most popular series of vinyl cutters ever built. It offers powerful technology with a high-speed cutting head, legendary tracking and an optical positioning system at a very affordable price. Discover how you can have reliable and effortless vinyl cutting at a wallet-friendly rate with the SummaCut Series.

HOW DOES THE TANGENTIAL KNIFE TECHNOLOGY WORK?


In response to the limits of the drag knife technology and the user’s specific needs, Summa has developed the tangential knife technology. Instead of a freely rotating knife, the tangential knife will be controlled by a motor. This external motor will literally position the knife in the correct angle. Whereas the drag knife remains in the media all the time during cutting, this tangential technology will lift the knife up from the media, rotate it and lower it back into the media.

HOW DOES THE TANGENTIAL KNIFE RESPOND TO MEDIA?


The result of using the tangential knife technology will be perfectly shaped cut corners in thin media, but also in thick, rigid media. For there are no drag forces that will influence the knife’s trajectory. The tangential technology allows for much higher cutting pressures and enables you to use longer knives compared to the drag knife technology. As a result, the user will be able to cut thicker and harder substrates with the same detail and quality as if it would be cut in thin substrates. This technology is generally found on flatbed cutting machines, used to cut thick substrates. To achieve a high-quality cut in applications such as floor graphics, vehicle graphics, textile, sandblast, road and safety signs, and many more, we highly recommend using a cutting machine with the tangential knife technology.

SUMMA AND THE TANGENTIAL KNIFE TECHNOLOGY


And although bragging is not an attractive quality, honesty, for that matter, is! There is only one manufacturer that can develop cutting heads, with this remarkable True Tangential cutting technology: Summa with its S Class 2 T (Tangential) Series! Furthermore, these highly-engineered tangential cutting heads are small and light enough to fit on a roll plotter. The S Class 2 vinyl and contour cutters provide you with unrivalled, tangential technology and unmatched die-cutting precision as no other in its class.

The only other cutting device you will find with this high-end tangential technology are flatbed cutting machines. With a flatbed cutting machine, there will be no restriction in size or in weight of the cutting head. (If you are interested in a versatile flatbed cutting machine, Summa offers these in variable sizes.

WHAT ARE THE ADVANTAGES?


One of the many advantages the Summa knife technology offers is its accurate depth control. Many people think tangential cutting technology is only useful for processing thick substrates. However, the way Summa implemented this technology on their cutting plotters allows for the operator to set the cutting depth as accurately as the thickness of a human hair.

Another advantage of this technology is how easy it is to weed out the vinyl parts. As every corner is perfectly shaped and cut by means of an overcut feature, peeling away the excess material will be done in a breeze. Even cutting meticulous details in thickly laminated media becomes a child’s play.

Last but not least, I’d like to point out that perforating material and creating tear-off lines, using Summa’s FlexCut feature, is so reliable on a tangential machine, you can safely add this to your jobs, as well. While doing so, restrictions are limited to a bare, non-noticeable minimum and possibilities are as high as your imagination can take you! Taken into account all these benefits, tangential cutter users will all say the same thing: “Don’t hesitate and put all your trust into a tangential cutter. There’s nothing like it! You’ll never regret the choice!”

Make a choice you won’t regret.



SPECIFICATIONS

Our teams are happy to advise you on a model that best suits your business.

MODELS

              S2 T75           S2 T120          S2 T140           S2 T160

CUTTING TYPE

True Tangential with Drag Knife Cutting Mode Capability

CUTTING WIDTHS

S2 T75 29 inch (74 cm), (Extended Mode: width of the material)

S2 T120 47 inch (120 cm), (Extended Mode: width of the material)

S2 T140 53 inch (135 cm), (Extended Mode: width of the material)

S2 T160 62 inch (158 cm), (Extended Mode: width of the material)

CUTTING SPEED

All S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal

AXIAL ACCELERATION

Up to 4 G

MAXIMUM ACCELERATION

Up to 5.5 G diagonal

ALIGNMENT TYPE

  • OPOS CAM : Factory upgrade on all new Summa S Class 2 S75T, and S160T
  • Barcode job recognition
  • Up to 2 x 64 marks on the X-line
  • Y-Line compensation

TRACKING PERFORMANCE

Within ± 0.004 in. (± 0.1 mm) on plots up to 40 ft. long (12 m) on rolls up to 760 mm wide long
up to 4 m long (13 ft.) on rolls over 760 mm wide

ACCURACY

0.2 % of movement or 0.25 mm, whichever is greater

CUTTING FORCE

0-600 grams of down-force, in 5 gram increments

DISPLAY LANGUAGE

English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Lithuanian; Portuguese

CONNECTIVITY

USB; Ethernet

POWER REQUIREMENTS

100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum

DIMENSIONS

S2 T75 141 (W) x 68 (D) x 111 (H) cm 55.5 (W) x 26.8 (D) x 43.7 (H) in.

S2 T120 187 (W) x 68 (D) x 111 (H) cm 73.6 (W) x 26.8 (D) x 43.7 (H) in.

S2 T140 225 (W) x 68 (D) x 111 (H) cm 73.6 (W) x 26.8 (D) x 43.7 (H) in.

S2 T160 225 (W) x 68 (D) x 111 (H) cm 88.6 (W) x 26.8 (D) x 43.7 (H) in.

SHIPPING WEIGHT

S2 T75 152 lbs (69 kg)

S2 T120 189 lb (86 kg)

S2 T140 198 lbs (90 kg)

S2 T160 251 lbs (114 kg)

OPERATING TEMPERATURE

59˚ to 95˚F (15˚ to 35˚C)

STANDARD ACCESSORIES

WinPlot or MacSign Cut Software, CutterControl Parameter Software, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades, Stand and Basket.

OPTIONAL ACCESSORIES



Roll-up system for Summa S Class 2 140 and Summa S Class 2 160
