Screen Printing Kit Screen Making DIY UV Exposure Unit & Hand Screen Stretcher

Screen Making System for Screen Printing

This package is designed for screen stretching and stencil making, two important procedures in screen printing, covering necessary equipments and materials, suitable for buyers who do stretching by themselves. Full-equipped machines and materials, plus operation video could make buyers make stencil right now. Buyers do not need to worry about buying machines and several isolated materials, saving time, money and freight. As to single machine’ detailed description, video, clients can find it in our store.

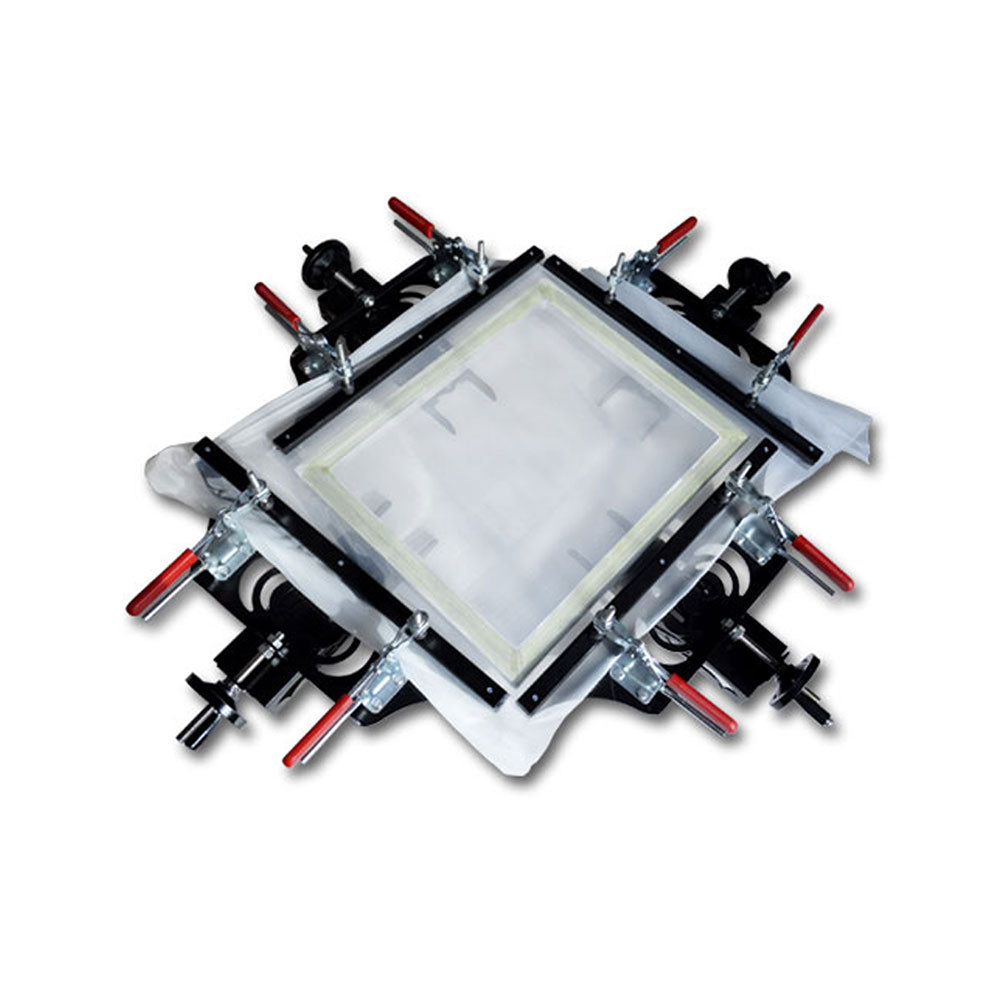

24"x24"Hand Screen Stretcher

Main Features
Consisted by four 24"(60cm) wide collets. One single set can apply to any screen frames below 24"x24"(60x60cm).
Suits for any frames below 2” thickness. Adjusting position bolt can meet your different requirement.
Wide locking bars for compressing screen are critical parts, directly influence the quality of stretching. We specially exploit concave and convex locking bars made of rubber with proper rigidity,24”width,no joints.
Made of steel,advanced electrostatic spraying.

Specifications:
Crate dimension: 27"*18"*10"(68×46×26cm)
Gross weight: 51LB(23kg)

24"x24"Hand Screen Stretcher

Main Features
Consisted by four 24"(60cm) wide collets. One single set can apply to any screen frames below 24"x24"(60x60cm).
Suits for any frames below 2” thickness. Adjusting position bolt can meet your different requirement.
Wide locking bars for compressing screen are critical parts, directly influence the quality of stretching. We specially exploit concave and convex locking bars made of rubber with proper rigidity,24”width,no joints.
Made of steel,advanced electrostatic spraying.

Specifications:
Crate dimension: 27"*18"*10"(68×46×26cm)
Gross weight: 51LB(23kg)

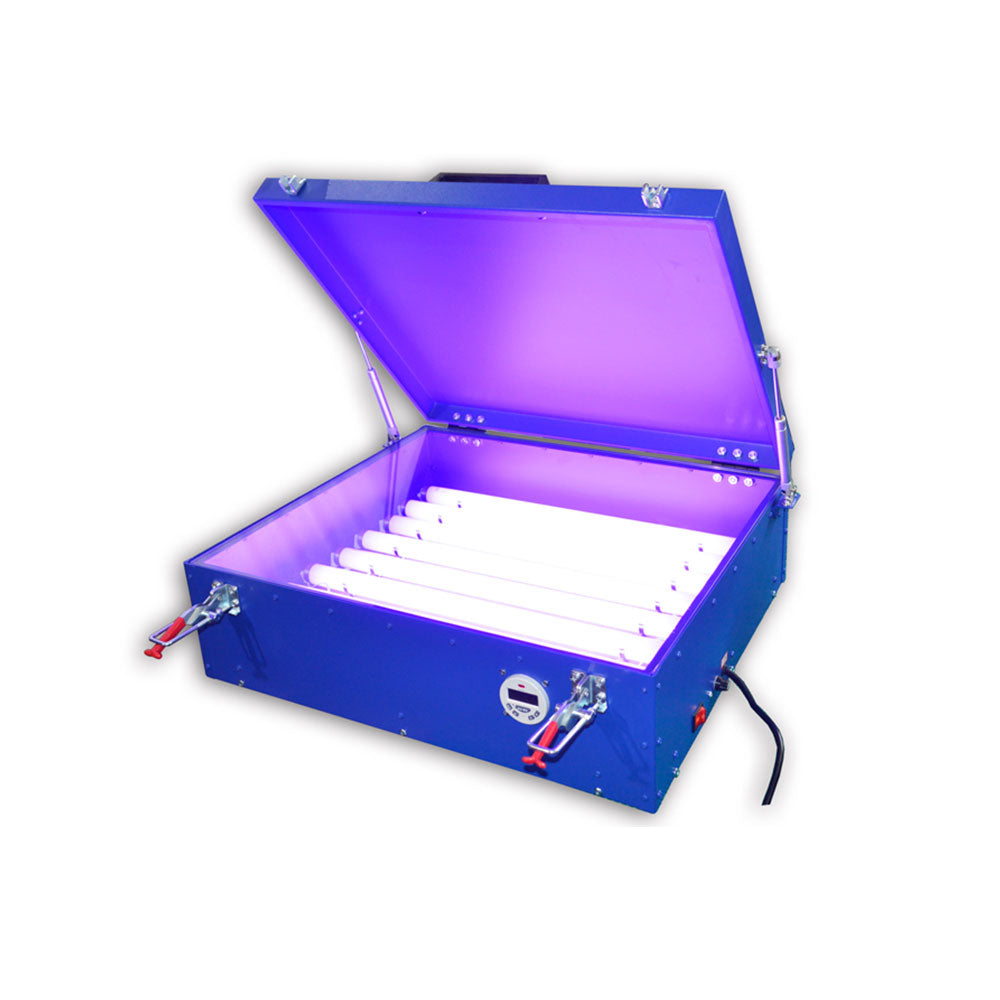

21"x25"UV Exposure Unit

Features & Parameters
Digital timer ensures precise exposure. when you use it once more, it will repeat former time setting. Power calls off by itself when count-down is over.
Upper surface is covered by 0.3"(8MM) high-strength toughened glass board, anti-pressure, uneasy to scratch skins. Once the glass is broken, it will turn into pieces without sharp edges to insure safety.

Voltage: 110V, 220V
Exposing area: 21" X 25" (53.34 x 63.5cm）
Number of Light Tubes: 8 pcs
Total Power of light tubes: 160W
Time range: 0s-999s
Crate Dimensions: 34" x 26.6" x 12" (875 x 675 x 310mm)
Gross weight: 106Lb (48kg)

Materials

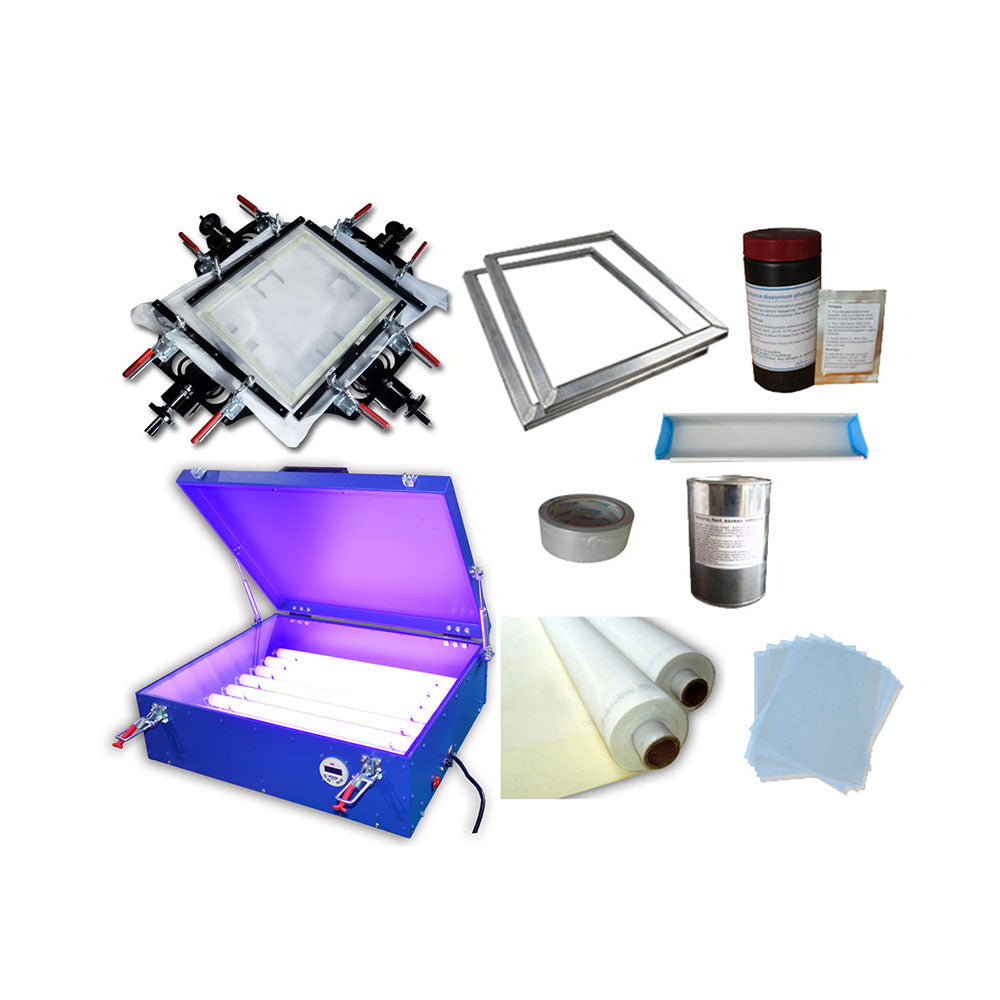

Items included:

1)1 24"x24"Hand Mesh Stretcher (006504)
2)1 21"x25" UV Exposure unit (006002)
3)2 1#Stainless Steel Spatulas (007024)
4)1 14"Emulsion Scoop Coater (007001)
5)1.39X3Yard 80#screen fabric (007203)
6)1.39X3Yard 120#screen fabric (007205)
7)2 16"x20" Screen Frame (007261)
8)10 sheets of A4 transparent Film (007003)
9)1 bottle Screen frame adhesive (008000)
10)1 self of Photographic emulsion (008401)
11)1 roll of Aluminum Foil Tape (008433)

Package:
1. Packing size:
1#68x46x26cm
2#86x64x27cm
3#40x50x20cm
2. Gross weight: 61kg
