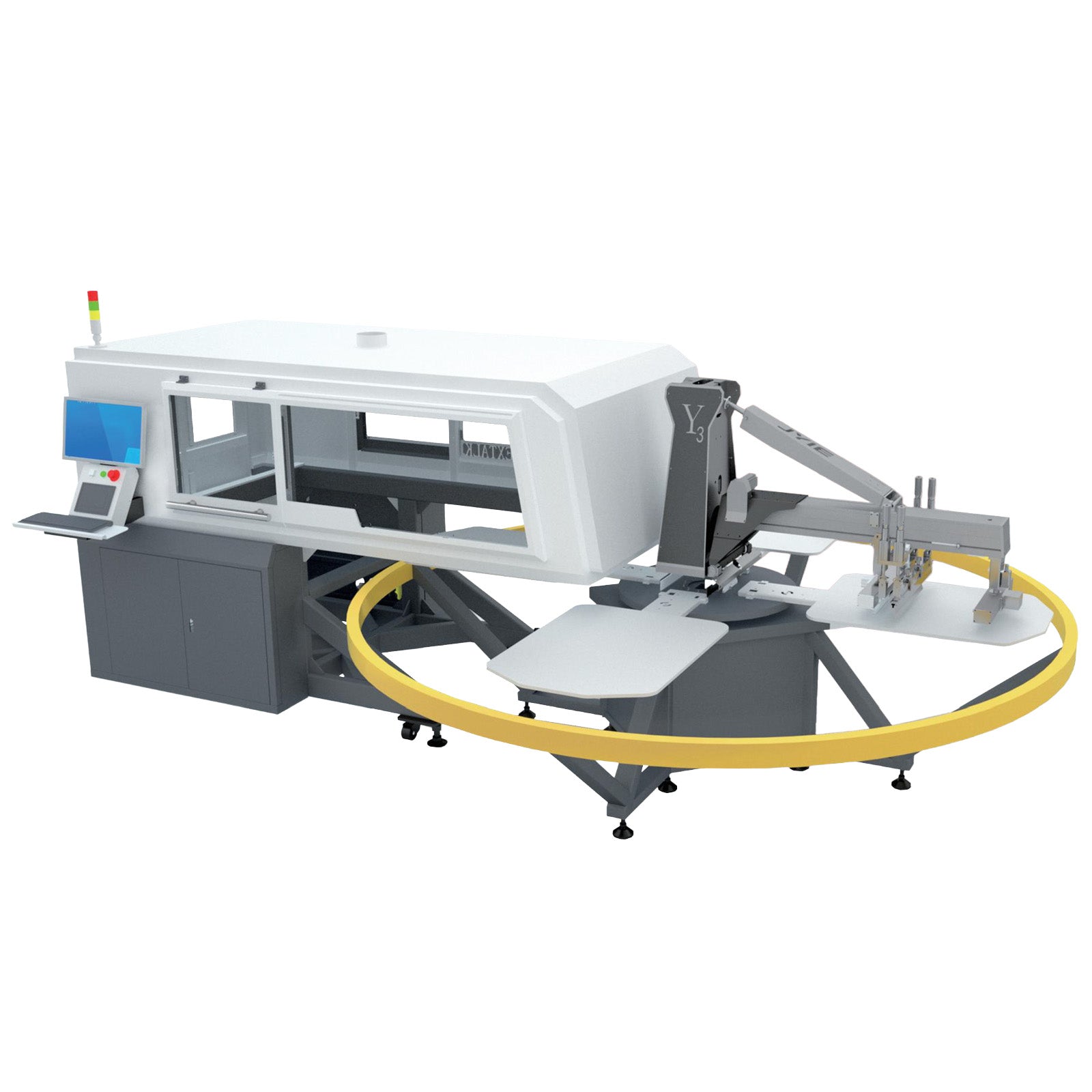

Oval Digital Printer with 4 Stations & 8 Print Heads

Description

One-piece printing and seamless order change, especially suitable for online order production.

There are no restrictions on color, pattern, or quantity.Print on demand.
White ink and CMYK ink simultaneous printing , no screen making required
Covers an area of only 12 square meters

Specifications

White cloth: 400pcs/h(2Pass); Dark cloth: 150pcs/h(4Pass)
Pallet System

• 4 Pallets: 850 x 450 mm (33.5 x 17.7 in)
• Max. Print Area: 500 x 400 mm (19.69x15.75 in)

Ink & Media

• Pigment Ink

• Compatible Substrates: pure cotton (can contain less than 10% spandex)


Electrical Specifications

• Power supply: 220VAC

• Air source requirements: 0.6MPA

• Print System: 8 integrated Ricoh GEN5 printheads

Power:

• Oval Digital Printing: 5KW

• 4 Stations: 2KW

Packing Size

• Package 1: 2500mm x 1750mm x 2200mm(98.43in x 68.9in x 86.6in)

• Package 2: 1900mm x 1800mm x 1200mm(74.8in x 70.87in x 47.24in)

• Package 3: 1400mm x 1600mm x 600mm(55.12in x 63in x 23.62in)

• Package 4: 500mm x 900mm x 1000mm(19.69in x 35.43in x 39.37in)

Gross Weight:

• Package 1: 1100kg(2425.1lbs)

• Package 2: 500kg(1102.3lbs)

• Package 3: 300kg(661.39lbs)
