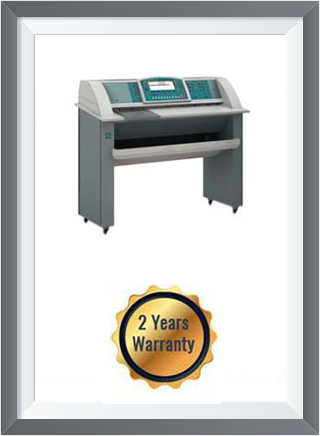

OCE TDS Plotwave 800 Scanner + 2 Years Warranty
BROCHURE
Océ TDS800 scanner Scanning technology CCD, Océ’s patented Image Logic ® realtime image processing software Scan/copy speed 10 m/min, or approximately 8 A0/min Original feed
- Face-up, left aligned
- Automatic feed off/on Output reception Integrated receiving basket or original delivery tray (for up to 150 originals) Scan and copy modes
- Lines & text
- Photo
- Grays & lines
- Printed matter
- Dark original
- Blueprint
- Cut & paste Start up Automatic start up with customer specific timers Power on/off Dimensions Width: 1320 mm Depth: 640 mm Height: 1235 mm Weight 166 kg Mains supply 100-120 V / 200-230 V, 50/60 Hz Power consumption Standby 165 W, operation 180 W Noise level
- Standby 43 dB(A)
- Run 53 dB(A)
- Pulse 9 dB(A) According to DIN EN 27779 operator position
