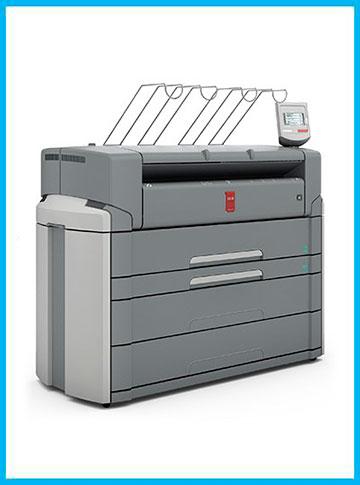

OCE 750 Plotwave

OCE 750 Plotwave

  • $6,999.99






BROCHURE

TECHNOLOGY

Product description

Productive wide format black & white print/copy/scan system with color scanning

Imaging technology

Electrophotography (LED), organic photoconductor (OPC), clean closed toner system, Océ Radiant Fusing technology

Toner/ Ink type

Océ black toner: 2 bottles per carton, 0.5 kg per bottle

Print speed

Black & white: 9 A1 size/min, 4,7 A0/min

Print resolution

600 x 1200 dpi

Configuration

Printer or multifunctional with choice of 2 scanners

Size main engine (WxDxH)

1440 x 800 x 1475 mm (including top delivery tray)

Weight main engine

290 kg

Certifications

EPA ENERGY STAR®, TüV GS, CETECOM, CE, UL, cUL, CB, FCC Class B, RoHS

Paper rolls

Default: 2 rolls, expandable to a maximum of 6 rolls and two cut sheet trays

Maximum paper capacity

Up to 200 m per roll, maximum 6 rolls

Paper weight

75 - 100 g/m2

Roll width

297 - 914 mm

Output delivery

Compact and ergonomic Top delivery tray supporting up to 100 collated plots (other options available)

Media type

Paper: Plain paper, Recycled paper, Colored paper and Transparencies
Film: Film and Vellum

CONTROLLER

Description

Océ Power Logic© controller based on Windows 7 Embedded

Processor

Intel Core 2 i5-520M @ 2.39GHz

Memory

Standard 2 Gb

Hard disk

2 x 500 GB

Interface

Ethernet 100 Mbits/s, 1 Gbit/s

Page description language

TIFF, JPEG, HP-GL, HP-GL/2, DWF, C4, Calcomp 906/907/951, CALS, NIRS, ASCII

Security

E-shredding, IPSec, HTTPS, extended security protection for administrator, audit logging

Options

Adobe® PostScript® 3/PDF file interpreter

Description

Océ TCS4 scanner with Océ Direct Scan color technology (single camera, single mirror)

Scan resolution

Optical 575 dpi, addressable 600 dpi

Scan speed

Black & white: 3 - 5 m/min Color: 1 - 4 m/min

Scan format

TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF

Scan destination

Network Directory via FTP or SMB and on Controller

Original width

200 - 1016 mm

Original length

200 mm - 22 m

Original thickness

Up to 3 mm (optional scanner up to 15 mm)

Zoom

Scale to standard format. Custom: 10 - 1000 %

Preset modes

Lines & text, Photo, Grays & lines, Dark original, Blueprint

Size scanner (WxDxH)

1353 x 670 x 1300 mm

Weight scanner

65 kg

PRODUCTIVE B&W SCANNER

Description

Océ TDS600 scanner with Océ Image Logic ® technology (single camera, single mirror)

Scan resolution

400 dpi

Scan speed

Black & white: 5 m/min – 9.7m/min at 200 dpi

Scan format

TIFF (uncompressed, G3, G4), PDF,CALS

Scan destination

Network Directory via FTP or SMB and on Controller

Original width

210 - 1020 mm

Original length

150 mm - 15 m

Original thickness

1 mm of original and up to 3 mm for binding strip

Zoom

25 - 400 % (adjustable in 1% and 0.1% steps)

Preset modes

Photo, Grays & lines, Dark original, Blueprint, Printed matter

Size scanner (WxDxH)

1340 x 583 x 1353 mm

Weight scanner

90 kg

ENVIRONMENTAL (PRINTER)

Sound pressure level

Ready mode: 18 dB(A). Active mode: 58 dB(A)

Ozone concentration

0.001 mg/m3

Power requirements

100 -240 V; 50/60 Hz; 20 - 10 A

Power consumption

Sleep mode: 2,5 W. Ready mode: 51 W. Active mode: 1.6 kW

WORKFLOW

Description

Concurrent print, copy and scan of single documents or sets

Printer drivers

Océ Wide format Printer Driver 2.0 for Microsoft Windows, Océ PostScript 3 driver for Microsoft Windows and Mac OS

Job submission

Océ Mobile WebTools for iOS, Android, Symbian and BlackBerry®, Océ Publisher Mobile for iOS, Océ Publisher Express for web, Océ Publisher Select for Microsoft Windows

Job management

Personalized Smart Inbox with history, Manage queue, Océ Express WebTools, Secure controller access, remote shutdown and restart

Accounting

Option: Océ Account Center

Hardware

Océ TCS4 color scanner, Océ TDS600 productive B&W scanner, integrated folder, delivery tray, Océ Double Decker Pro Stacker, roll loaders to reduce back strain while loading heavy media in the drawers

Software

Océ Repro Desk Suite for printing to multiple wide format devices, viewing and cost tracking

Disclaimers

All specifications subject to change without notice

[1] Océ, Océ PlotWave, Océ Power Logic are registered trademarks of Océ-Technologies

[2] Adobe®, Adobe® PDF and PostScript® 3™ are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

[3] Mac®, Mac OS® and Mac iOS are trademarks of Apple Inc., registered in the U.S. and other countries.

[4] Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

[5] ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency.

All other trademarks are the property of their respective owners.
