OCE 365 Plotwave

  • $8,499.99

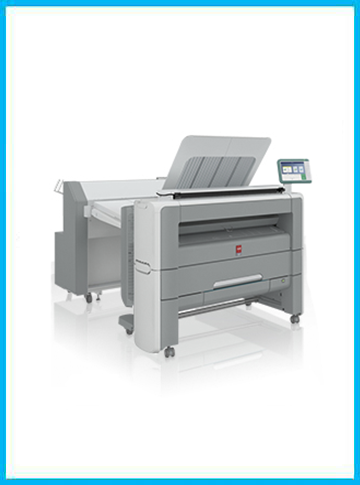

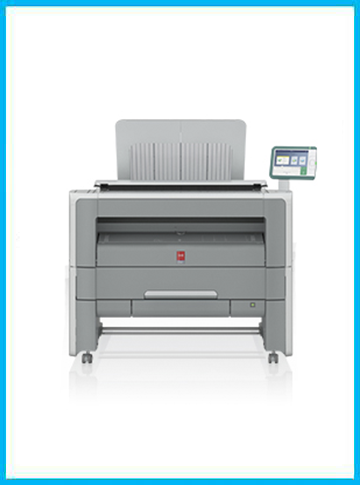

Océ PlotWave 365


The Océ PlotWave 365 produces robust, high quality, all-weather-proof technical documents securely, cost-effectively and simply. This black and white multi-function device comes with additional capabilities to the 345 model, making it ideal for growing businesses.



  • Professional output, including copying and colour scanning thanks to Océ image Logic and new Diazo copy mode
  • Superior quality with 600 x 1200 dpi pico-technology for sharp details and smooth grey areas
  • Excellent large format print efficiency, consistently producing 6 A1/D-size sheets per minute and two-fold folding
  • Enhanced productivity with instant start-up and print using Océ Radiant fusing and more powerful Windows 8 POWERsync controller
  • Increased flexibility with printing to and from cloud systems, USB sticks, mobile devices and now 'scan to and print from' Active Directory. Advanced Wave connectivity integrates with Océ and third party software.
  • Simple to use with the best-in-class Océ ClearConnect multi-touch user interface, now with uniFLOW
  • More flexible output, connecting to a two-fold folder
  • Improved security through FIPS compliant features and disk encryption
  • Human and eco friendly design, including silence in sleep mode and intuitive, tablet-based control panel, energy efficiency and super low ozone emissions
  • Convenient size based on a single footprint design and space saving ergonomic top stacker

Detailed Features

Take a look at a more detailed look into the Canon Océ PlotWave 365

Great speed and productivity, anywhere, any time

The Océ PlotWave 365 comes with enhanced workflows and delivers instant productivity wherever you are working and whatever kind of document you need, freeing you to make the most of your day. Using a WiFi router you can use your smart phone or computer to get your technical files from the cloud or send a print request to your printer using Océ Publisher Mobile, ideal for when you're out on site.

Thanks to our award-winning Océ Radiant Fusing technology you can get started quickly, with sleep to print in just 40 seconds, which saves you an hour a day and cuts energy costs in half, compared to conventional printers. For added productivity you can scan while printing and copy while printing.

Great results, easily achieved

The Océ ClearConnect 10-inch touch screen works like a tablet, for immediate usability. Plots are collated and stacked at an ergonomic height on the Top Delivery Tray, which stacks up to 50 sheets. The online folder option saves time too by generating quality two-fold documents automatically.

Increased security and outstanding document durability

Like the entire award-winning Océ PlotWave series, this multi-function device is made for the professional CAD environment. It produces high quality black and white documents that look consistently great and are resilient enough for intensive off and on site use, thanks to our water-fast prints and next generation print quality. Enjoy colour scanning too, with fewer wrinkles.

Cost-effective output by design

We keep your operational costs low with a hard working construction that outlasts many comparable systems, along with features such as energy efficiency and Océ Radiant Fusing.

Compliant security to inspire customer confidence

We include the latest FIPS 140-2 security features, supported by an embedded Windows 8 platform and POWERsync controller to protect private information. You can also protect print data using DLAP login or smart card security. The POWERsync controller allows the device to integrate with other hardware and software, such as uniFLOW, without worrying about security and operational issues.

Always environmentally sensitive

The Océ PlotWave 365 is both people and eco friendly, with low level ozone, noise and heat emissions compared to conventional systems. It is fully compliant with the latest Energy Star 2 regulations. Finally, the closed toner system prevents users from spilling and inhaling toner.



Product description


Black & white all-in-one wide format print/copy/scan system with color scanner


Imaging technology


Electrophotography (LED), organic photoconductor (OPC), clean closed toner system, Océ Radiant Fusing technology


Toner/ Ink type


Océ black toner: 0.4 kg per bottle


Print speed


Black & white: 6 A1-sizes per minute, 3 A0 sizes per minute


Print resolution


600 x 1200 dpi





Printer or multifunctional 1 or 2 rolls


Size main engine (WxDxH)


Compact design: 1527 x 803 x 1495 mm (including top delivery tray)


Weight main engine


240 kg




CE, TUV GS, CETECOM, C-UL-US, Energy Star 2.0, FEMP, Rohs, CCC, VCCC



Paper rolls


1 or 2 rolls


Paper cutting


Cutters included in the drawer for fast and easy media switching


Maximum paper capacity


1 roll: 183 m2 2roll: 365 m2


Paper weight


60 - 110 g/m2


Roll width


297 - 914 mm


Output delivery


Integrated top delivery tray


Media type


Paper: Plain paper, Transparencies, Translucent, Recycled paper, Engineering Bond, Engineering Vellum, Colored paper, Top Label Paper FSC, Red Label Paper PEFC, Black Label Paper PEFc, Green Label FSC, RecycledWhiteZero FSC, Transparent Paper, Transparent Paper FSC, Polyester film, Polyester film antistatic, Contrast Film, Clear Polyester Film, Double Matte Polyester Film, White Opaque Polyester Film, Translucent Engineering Bond, Engineering Bond, Recycled Engineering Bond, Engineering Vellum, Color Top, Recycled paper, Plain Paper recycled, Transparent





Océ ClearConnect multi-touch user interface


Size (WxDxH)


300 x 220 x 40 mm. Touch screen: 10.4"




800 x 600 pixels


Number of colors


16.2 Million




Projective capacitive touch




3 hard buttons: [Wake-up], [Stop, interupt, abort], [Home].
Multi-touch functions: pinch, swipe, flick, zoom, pan




View optimization: Tilt (-4 to +45 degrees) and turn (-45 to +180 degrees). Status light (red, orange, green). USB interface with indication light





High performance Océ POWERsync controller with Windows 8 Embedded, 64 bits




Dual-Core G1620 @ 2.70GHz




4 GB DDR3 (standard)




Intel HD Graphics, 1GHz


Hard disk


500 GB, 7200rpm (standard)




Ethernet 100 Mbits/s, 1 Gbit/s
Discovery: APIPA, WS-Discovery, SNMP


Page description language


TIFF, JPEG, HPGL, HPGL2, DWF, C4, Calcomp 906/907/951, CALS, NIRS, NIFF, PS/PDF (optional)




E-shredding, IPSec, IP filtering/Access Control Lists, HTTPS, audit logging, network protocol enable/disable, LDAP integration, Active Directory Integration (optional), User authentication on local ClearConnect user panel (LDAP/Active Directory credentials, smart card) for scan/copy/print. Configure HTTPS Certificates. Removable hard disk option, Optional FIPS 140-2 Certified Trusted Platform Module (TPM) and BitLocker based hard disk encryption, hard disk wipe (Only with Disk Encryption), Configurable CA certificate, Disable Network Ports and Protocols, Security Event Logging, Optional Single Sign-on (on device).


Cloud support


Unlimited user and or Administrator authenticated cloud support via WebDav and/or third party provider: e.g. Microsoft® SharePoint®, Dropbox®, Box.com, box.net, Google® Drive®, Microsoft® OneDrive®, Amazon Cloud Drive®, Cloudsafe®, MyDisk®, PlanWell Collaborate. The cloud user authentication can either be preconfigured by the administrator or done by the user at the time of accessing the specific cloud




Scaling; Scaling (scale-to-fit page, reduce when image too large to avoid clipping or to custom factor, scale page size to standard size) , Rotation , Shift (automatic or user defined), Adding/removing trailing/leading edge, Mirror, Black intensity in poster mode, Print optimization (standard, lines/text, poster). Color Highlight and Dark Original. Area to erase (area of interest)





Contact Image Sensor (CIS) Color scanner with Océ Image Logic technology


Scan resolution


600 x 600 dpi


Scan speed


14,6 m/min Black & white scanning;
9.7 m/min Copying;
4.8 m/min Color scanning


Scan format


TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF


Scan templates


Virtual unlimited number of scan templates to standardize common scan settings and destinations


Scan destination


Local USB flash drive, FTP, SMB, Smart In box on Controller, Optional Local Home folder( LDAP), mobile device via Océ Mobile WebTools, WebDav Clouds, PlanWell Collaborate.


Original width


208 - 914 mm


Original length


208 mm - 16 m


Original thickness


Maximum 0.8 mm (non-rigid documents)




Scale to standard format. Custom: 10 - 1000 %


Preset modes


Scale to standard format. Custom: 10 - 1000 %


Size scanner (WxDxH)


1097 x 308 x 140 mm


Weight scanner


25 kg



Sound power level


Quiet mode (Standby and sleep): less than 25 dB
Print mode: less than 55 dB


Ozone concentration


<0.001 mg/m3, < 0.000473 PPM (0,05% of permitted limit value)


Heat emission


Ready: 72 W, Active:1.6 kW


Power requirements


90 - 240 V, 50/60Hz


Power consumption


Sleep mode: 1 W
ready mode: 88 W
Active mode: 1.5 KW


Recyclability hardware


Made of steel or highly recyclable plastics: up to 95% of the engine can either be up cycled or recycled. Remaining 5% are non toxic waste.


Recyclability toner container


Bottles made of highly recyclable HDPE (High Density Polyethylene)





Concurrent print, copy and scan of single documents or sets


Printer drivers


Océ Wide format Printer Driver 2 for Microsoft® Windows®, Océ Postscript® 3 driver, Océ Mobile WebTools for iOS®, Android® and BlackBerry®, Océ Publisher Mobile for IOS® and Android®, Océ Publisher Express, Océ Publisher Select 2.


Job management


Personalized Smart Inbox with history, Manage queue, Océ Express WebTools, Secure controler access, remote shutdown and restart




Océ Account Centre (Optional)





Additional 2nd roll option, Océ Scanner Express placed on top of the printer, removable hard disk, TPM module, Estefold 2400 and 4300 series, Océ Delivery Tray to increase delivery capacity up to 200 pages.




Océ View Station, Adobe® Postscript ®3/PDF file interpreter, Océ Reprodesk, Océ Account Center.
