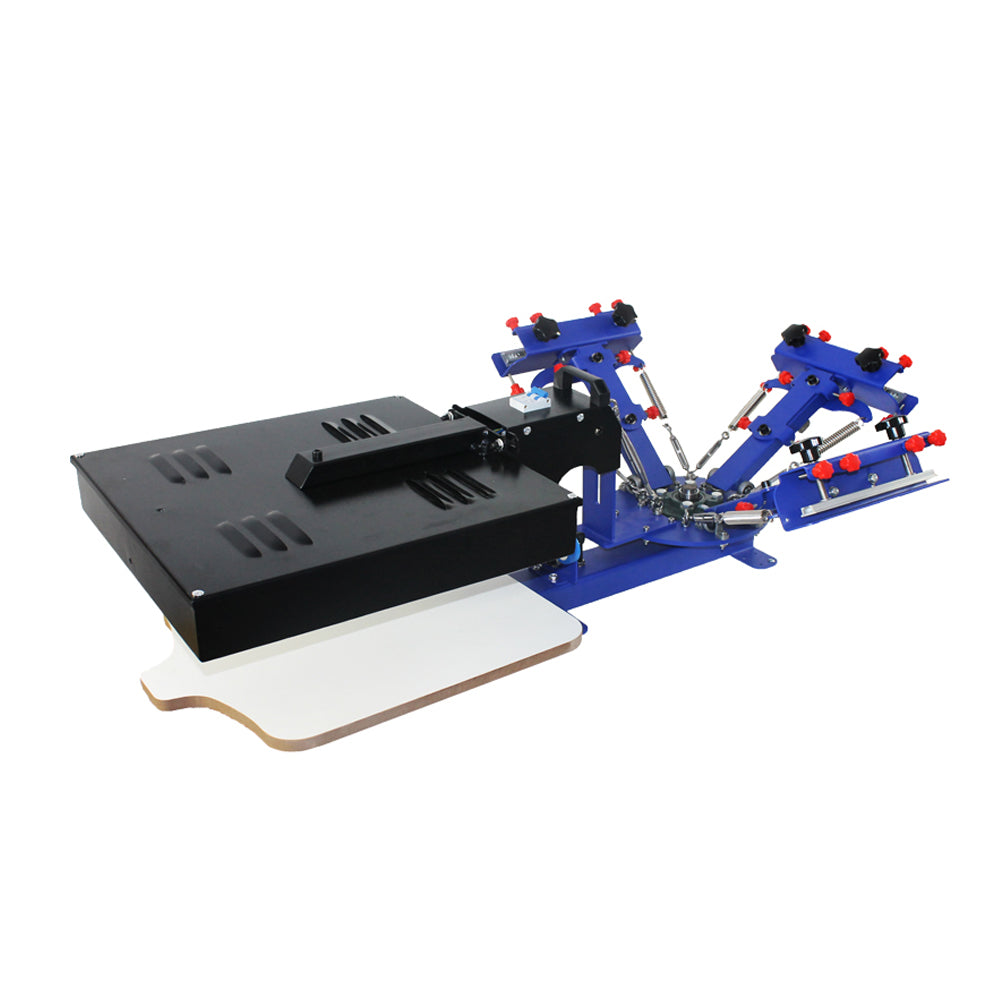

Micro-adjust 3 Color 1 Station with Dryer Screen Printing Press Machine Printer Equipment

Table Type 3 Color 1 Station Screen Press with Dryer

New Design 3 Color 1 Station Flash Dryer Screen Press is newly R&D by our company, it is 3 color over printable and there is a Infrared Flash Dryer between the arms, it will be very convenient for you to print and dry out. The flash dryer & screen frame can both rotate in 180 degree, you don't need an extra flash dryer. saving money and improve work efficiency! This is really a good news for Screen Printing industry!

Please note, the screen frames are not included.

Description:

Comparing with previous 3 color 1 station printer, this new type machine has a function of micro-adjust. If you want to do color matching, you can use those small red handles to move the screen frame right or left slightly. It will be a good choice for colorful printing.

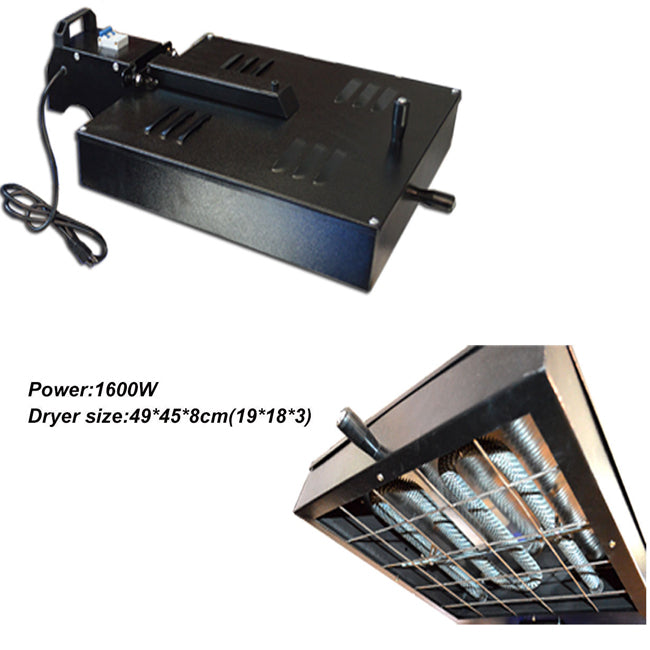

* Height of the flash dryer could be adjusted.

Parameters:

Height adjustable range for the screen frame clamp: 0.8" / 2cm.
Height adjustable range of the dryer head: 5.5"/14cm.
Platen size: 21.7 x 17.7" (55 x 45cm)
Drying Area: 15.7 x 15.7" (40 x 40cm)
Machine size:130 x 91 x 37cm(50x35x14inch)
Net weight:35.7kg /79lb

This machines is packed in 2 cartons:

1# 34x20x10inch (86 x 50 x2 5cm) 33 kg（73lb)
2# 30x20x9 inch (77 x 50 x 24cm) 12 kg（26lb）
Gross weight:45 kg (99lb)

Applications:

They can print onto clothing (especially for T-shirt), woven fabric, metal, paper, copybook, plastic, circuit board, wood, glass, ceramic tile, leather and other plane printing substrates, which is especially suitable for small businesses and individual printing shop.
Table Type and Combinatorial Design Saves Place and Convenient for Transportation.

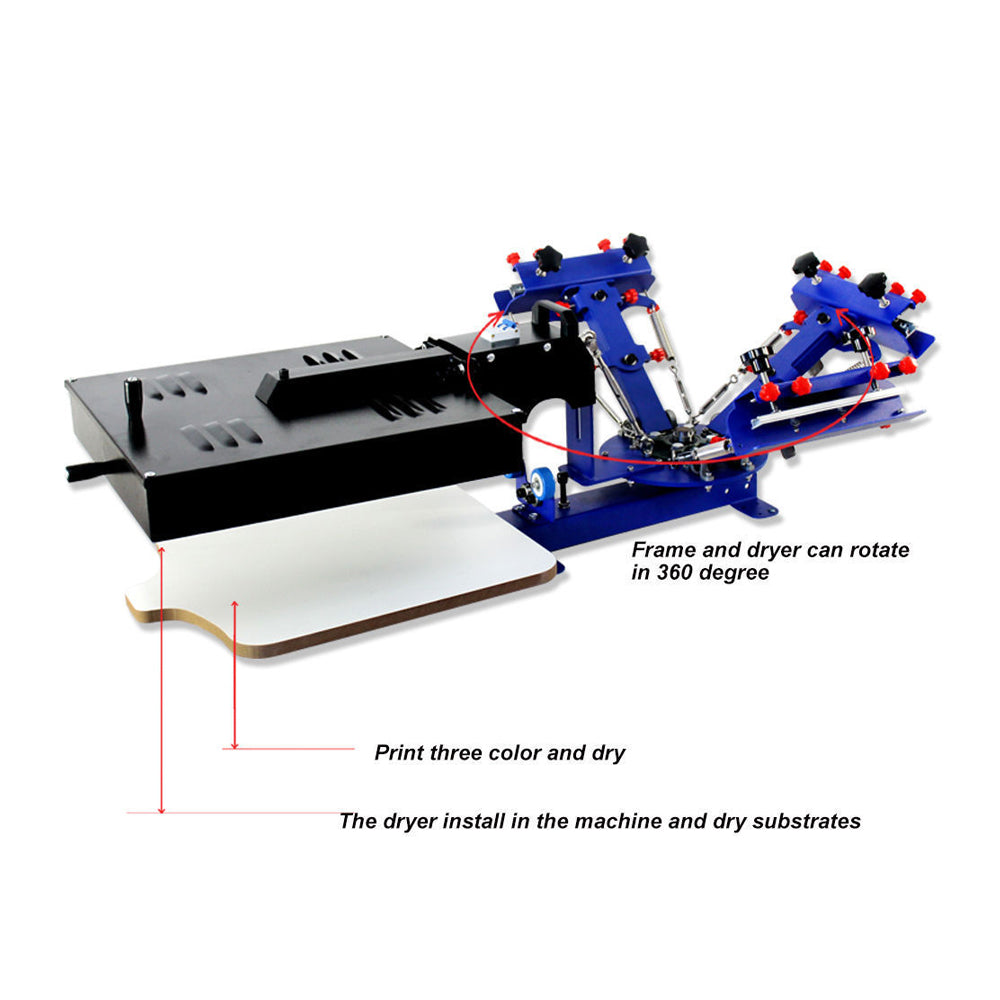

The frame & flash dryer can rotate arbitrarily in 180 Degree
Equipped with Four Handles on Both Sides of the Chuck Adjust the Screen Printing Frame

Function Introduction:

Items included:
1 set of 4 color 1 station screen press
1 set of 110v/220v flash dryer
