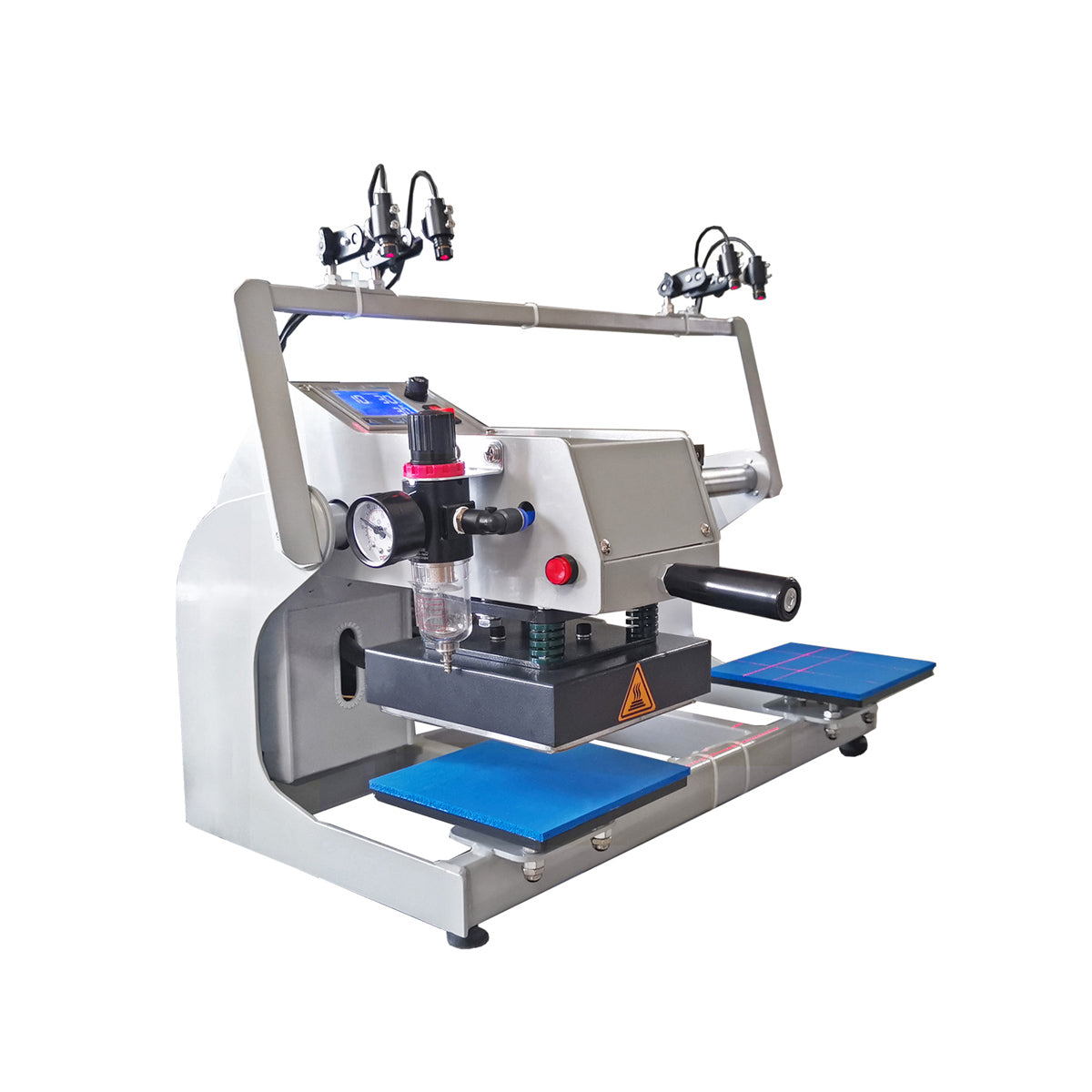

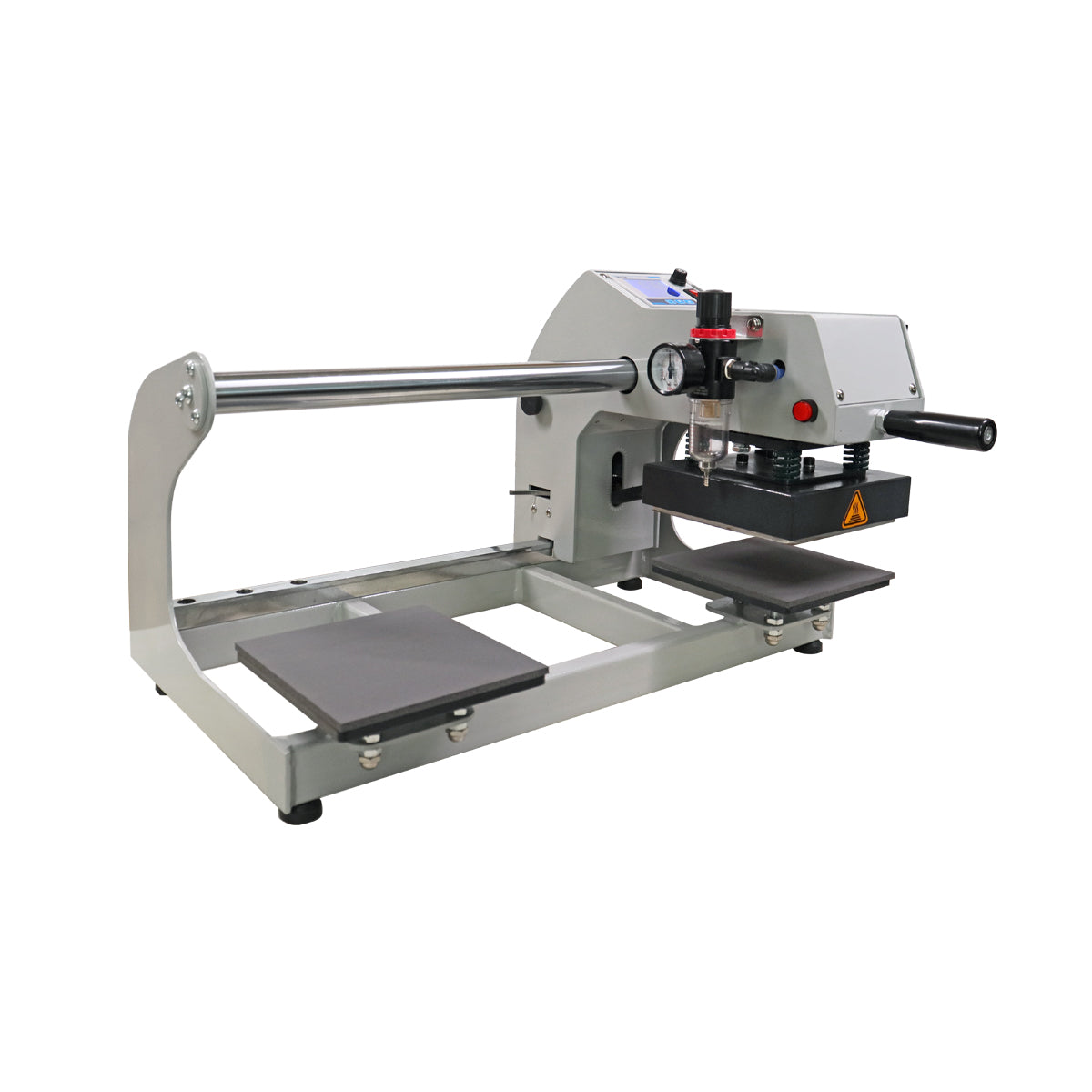

MEM 6" x 6" Semi-Automatic Pneumatic Dual-Plate Heat Press with Interchangeable Platens for Patch Heat Transfers

Description

The MEM double station heat press is engineered for durability and performance, pairing a heavy-duty solid industrial-grade pressing framework with top-tier electrical components—plus a built-in Laser Positioning System that delivers pinpoint alignment for every heat transfer job. This thoughtful design ensures operators have access to the best-in-class features and equipment needed to excel at today’s diverse range of heat transfer applications, from small-batch custom projects to high-volume production runs.

Features:

• Pneumatic double station transfer press for medium and large batches.
• Pressure balancing system on heat plate and bottom plate.
• Adjustable air pressure by air reducing valve with water separator.
• Certifications: CE, ROHS
• Ideal for patches & emblems.
• Lifetime factory on-line service.

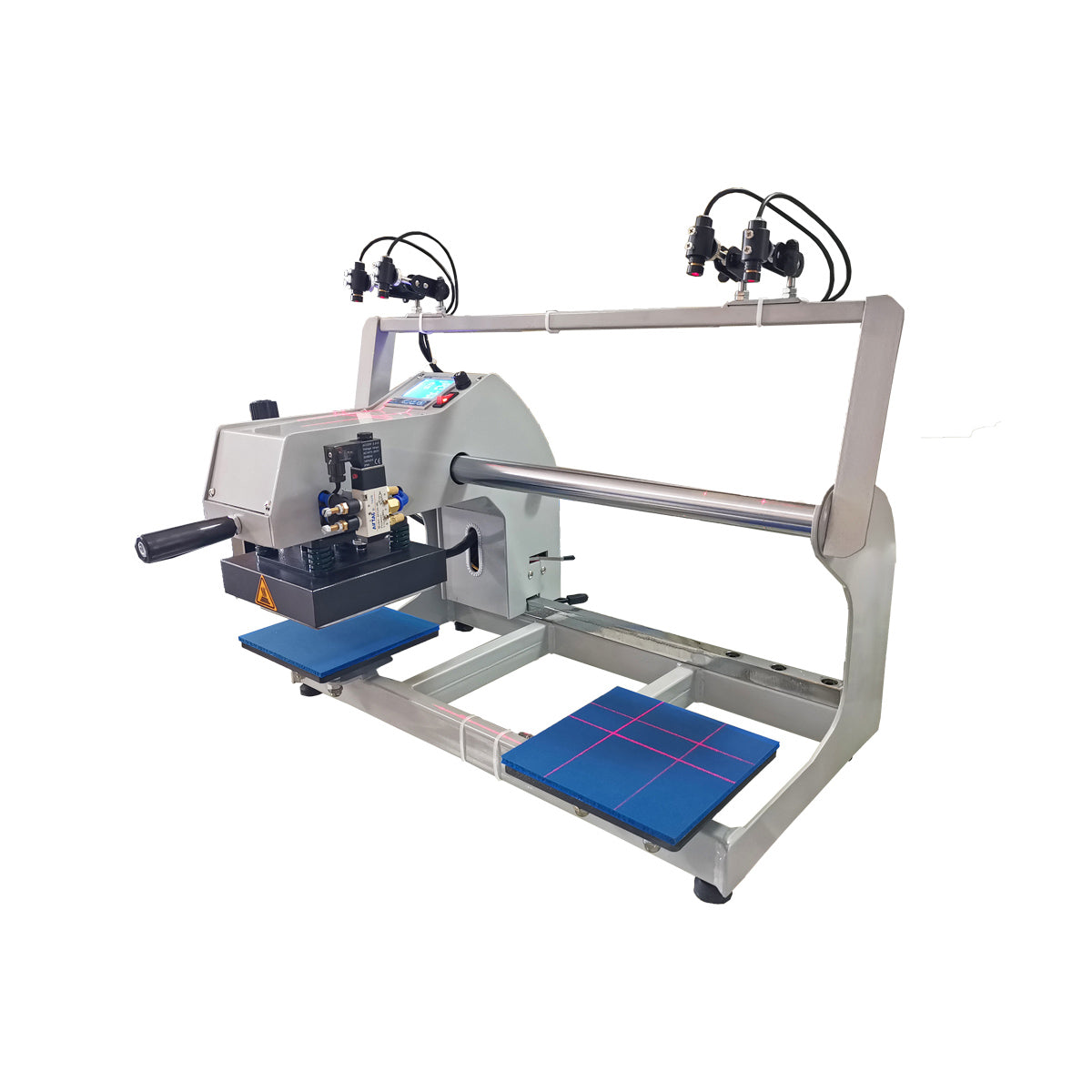

• Integrated Laser Positioning System.
• Operation: Semi-Automatic Cycling / Manual Mode.
• Included: Main machine, 2 extra platens, teflon sheet, user manual.
• Requires a standard air compressor (not included)
• Max Pressure: 0.8 MPa (~120 PSI)

Specifications:

• Voltage and power: AC110V±10%, 50/60Hz, 600W, 5.5A or AC220V±10%, 50/60Hz, 600W, 2.7A
• Verify the input voltage at the rear of the machine head.
• Time Range: 0-999sec.
• Max. Temp.: 500°F / 260°C
• Main Platen Size: 6" x 6" (15cm x 15cm)
• Additional Platens: 3.9" x 3.9" (10cm x 10cm) x 2 pcs
• Dimensions(LxWxH): 22"x17"x14" (54cm x 42cm x 36cm)
• Shipping Dimensions(LxWxH): 25"x18"x16" (64cm x 45cm x 40cm)
• Shipping Weight: 85.8lb(39kg)
• Max. press thickness: 40mm
