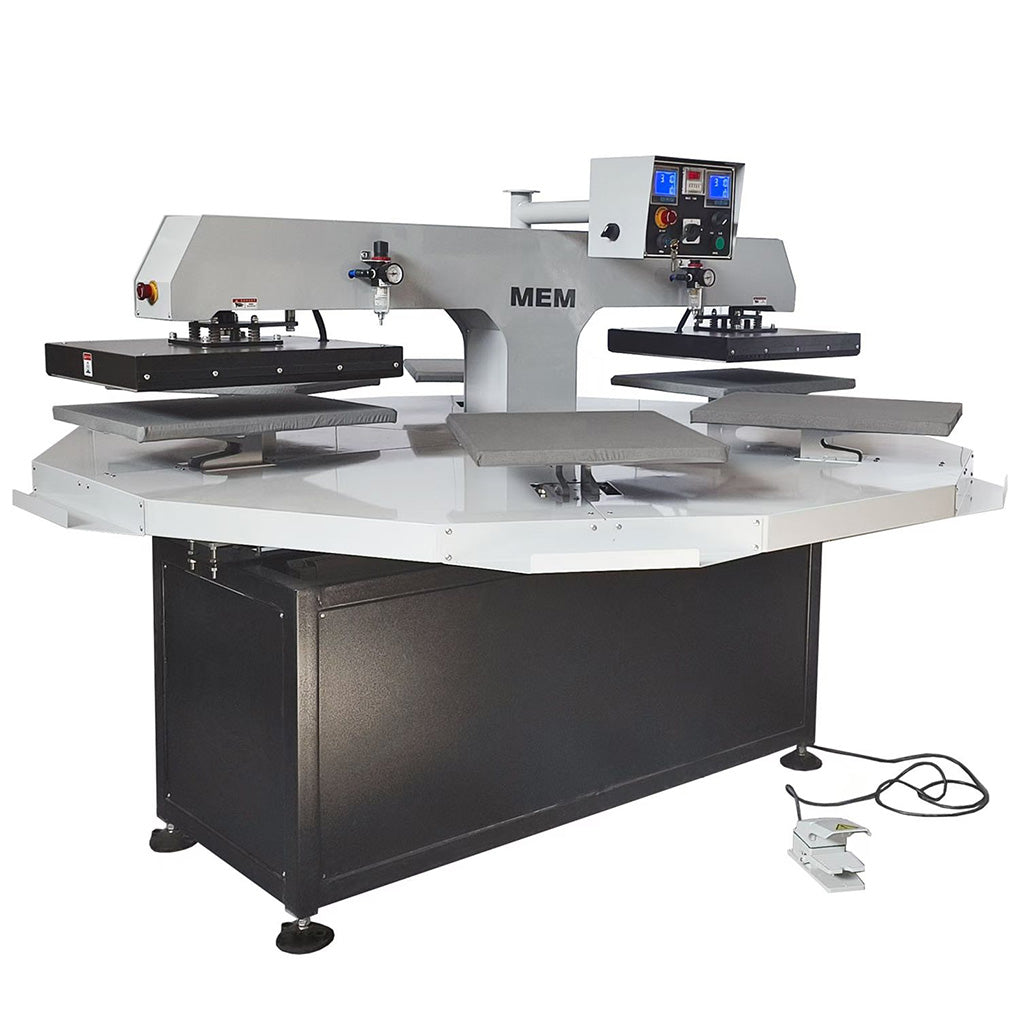

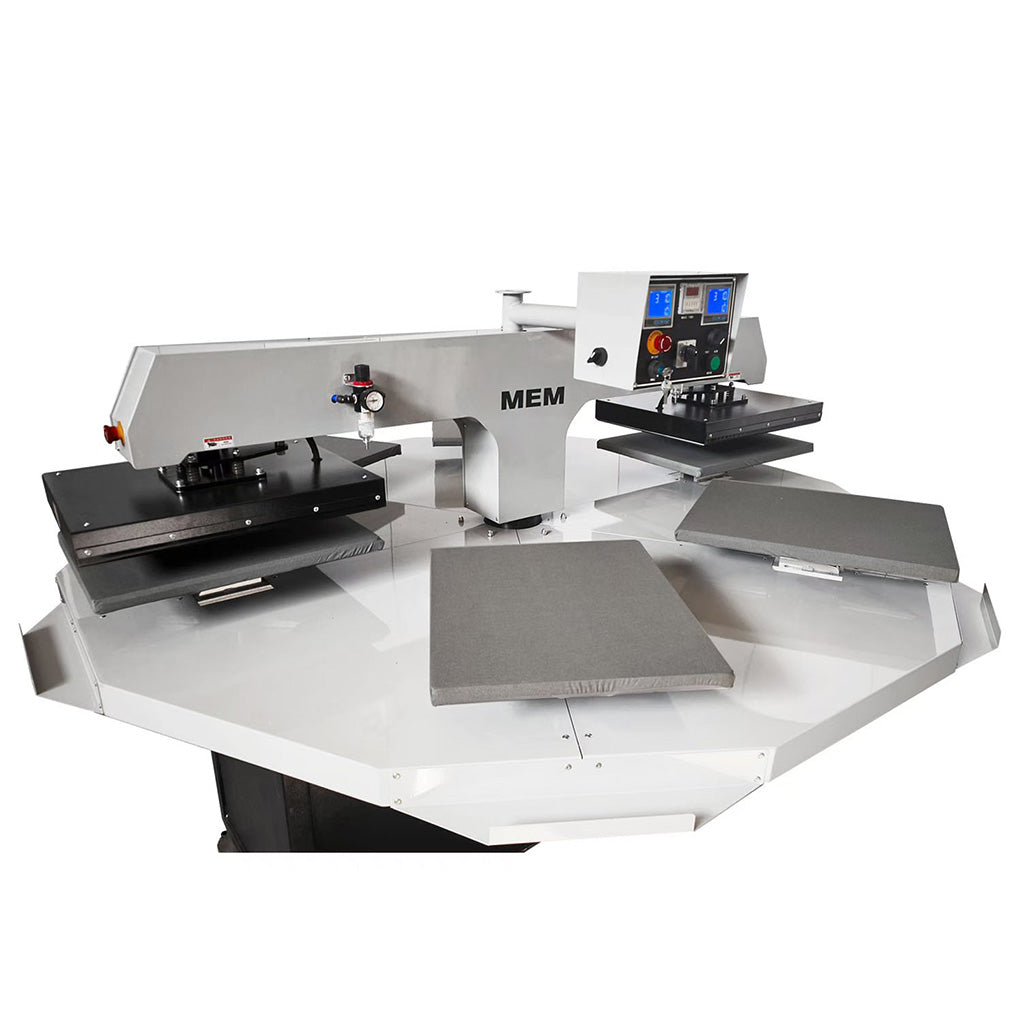

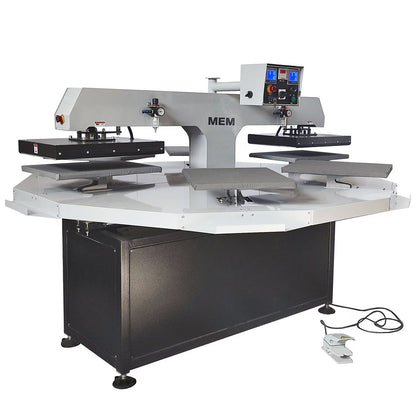

MEM 16 x 20 inch Automatic Pneumatic Carousel Heat Press 2-Head 6-Station 220V 6KW 28A with 2 Laser Positioning Systems

Warehouse
$9,007.70
$9,007.70
    MEM 16 x 20 inch Automatic Pneumatic Carousel Heat Press 2-Head 6-Station 220V 6KW 28A with 2 Laser Positioning Systems
    MEM 16 x 20 inch Automatic Pneumatic Carousel Heat Press 2-Head 6-Station 220V 6KW 28A with 2 Laser Positioning Systems

    Tech Specs

    Description

    The MEM 6 Station Presses boast a robust design that fuses a heavy-duty, industrial-grade solid pressing framework with premium electric components—delivering the optimal combination of performance, reliability, and user-centric features tailored to today’s diverse heat transfer applications. Equipped with an integrated Laser Positioning System, this six-station heat press ensures pinpoint accuracy in substrate alignment, eliminating misplacement and elevating the consistency of every transfer.

    Features

    1. Industrial grade heavy duty heat press machine 16in x 20in
    2. Thick cast aluminum heat plate for evenly distributed temperature
    3. CE & ROHS approved high quality label heat press machine
    4. 0.6 -0.7 MPa(120 PSI) for heavy pressure application.
    5. Self-pressure balancing system
    6. Powered by an air compressor with a minimum of 800w 30L / 8 galleon（Not included)
    7. Includes teflon sheet on the heat plate.
    8. Lifetime on-line service
    9. Laser Positioning System included.

    Specifications

    Voltage and power: 220V ,6000W,28A, single phase
    Time Range: 0-999sec.
    Max. Temp.: 500°F/260°C
    Heat Plate Size: 16in x 20in(400mm x 500mm)
    Max. Press Thickness: 1.65in(42mm)
    Dimensions(LxWxH): 84in x 84in x 55in(2130mm x 2130mm x 1400mm)
    Shipping Dimensions(LxWxH): 80in x 48in x 65in(2040mm x 1220mm x 1650mm)
    Shipping Weight: 1228lbs(557kg)
