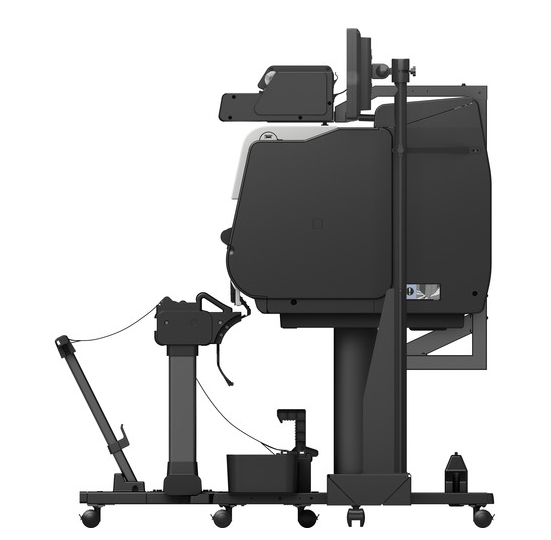

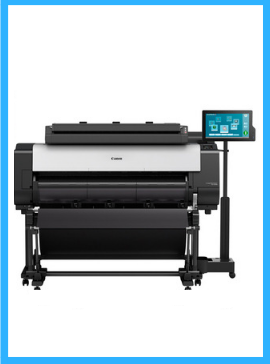

Canon imagePROGRAF TX-4000 MFP T36

  • $10,495.00


imagePROGRAF TX-4000 MFP T36

The 44-inch imagePROGRAF TX-4000 MFP T36 is a new Scan-To-Copy/File/Share integrated solution from Canon that includes an integrated printer, T36 scanner and All-In-One Computer that can work independently to improve your workflow. With increased scan speeds and advanced software capability compared to our predecessor large format printer models, this solution has everything needed to copy, scan, archive and share maps, drawings, renderings and posters.

imagePROGRAF TX-4000 MFP T36

SCANNER SPECIFICATIONS
SCANNER TYPE Contact Image Sensor (CIS) technology
SCAN ACCURACY +/- 0.1%
SPEED 13 ips monochrome, 6 ips color
OPTICAL RESOLUTIONS

1200dpi (Adjustable from 100 dpi to 2,400 dpi)

MAX. RESOLUTIONS 9600dpi interpolated
MAX. DOCUMENT SIZE

Width: 38 inch document width (36 inch image width)
Length 315" (JPG or PDF)
598" (TIFF)

THICKNESS 0.079in (2mm)
STANDARD INTERFACE USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets)
PRINTER SPECIFICATIONS
PRINTER TYPE

5-Color 44-inch Printer

NUMBER OF NOZZLES

Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each

NOZZLE PITCH

1200 dpi
Non-firing nozzle detection and compensation

PRINT RESOLUTION (UP TO) 2400×1200dpi (Max)
OS COMPATIABILITY

Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)

STANDARD INTERFACE

USB 2.0 High-Speed
10/100/1000 Base-T/TX

INK DROPLET SIZE 5 picoliter
INK CAPACITY 160 ml, 330ml or 700ml per color
INK TYPES Pigment Ink
COLOR SET Pigment: Matte Black, Black, Cyan, Magenta, Yellow
BUFFER / RAM 128 GB (Virtual) 2 GB (Physical)
HARD DRIVE 500 GB
MEDIA WIDTH

Cut Sheet - 8"- 44"
Roll Feed - 8" - 44"

MEDIA THICKNESS 0.07-0.8mm (2.8-31.4mil)
Roll: 0.07 - 0.8 mm (2.8 - 31.4mil)
MAX. ROLL PRINT LENGTH Roll Feed - 59' (18 meters)2
MAX. MEDIA ROLL DIAMETER 6.7" (170mm)
BORDERLESS PRINTING WIDTH (ROLL MEDIA ONLY)

8”, 10", 12”, 14", 16” 17", 20”, 24", 30”, 36", 42”, 44”
B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+ (12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594 mm), B1 (28.66"/ 728 mm), A0 (33.11"/841 mm), B0 (40.55”/1030 mm)

PAPER-FEED METHOD

Roll Feed: One Roll, Front-loading, Front Output
Front Loading Manual Feed: One Roll, Front Output

LANGUAGES SGRaster, HPGL/2, HP-RTL, PDF, JPEG
NOISE LEVEL (APPROX.)

Operation: 51 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.9 Bels or less

PHYSICAL DIMENSIONS 46.0“ x 62.7“ x 46.8“ (Main unit and TX Stacker)
WEIGHT approx.277 lbs (roll holder included, no inks, no print heads)
POWER SOURCE AC-100-240V (50-60Hz)
POWER CONSUMPTION

Maximum: 107W or less
Standby 3.6W or less
Power Off: 0.3W or less (Compliant with Executive Order)

OPERATING ENVIRONMENT TEMPERATURE

59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)

USER-REPLACEABLE ITEMS

Print Head (PF-06)
Maintenance Cartridge (MC-30)
Ink Tanks (PFI-110/PFI-310/PFI-710)

SOFTWARE INCLUDED TX Unified Printer Driver8, Accounting Manager, Canon Print Service, Device Management Console, Direct Print & Share2, Free Layout Tool, Media Configuration Tool, PosterArtist Lite for Windows, Printer Driver Extra Kit for Windows/Mac (Free Print Utility Layout, Advanced Preview), Optimized Driver for AutoCAD, Print Plug-in for Microsoft® Word/Excel/PowerPoint® for Windows, Quick Utility Toolbox
