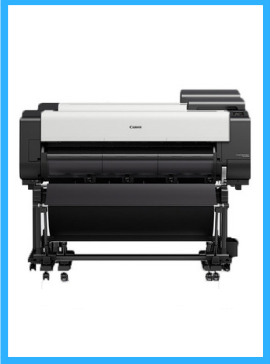

Canon imagePROGRAF TX-4000 44" Printer

Developed to expand the production aqueous inkjet technical documents market, the 44-inch imagePROGRAF TX-4000 Large-format printer is equipped to satisfy the many diverse needs of architects, engineers, construction, GIS and other professionals. With speeds as fast as 3D sized drawings a minute, stacking of up to 100 sheets, wireless printing capability, automatic roll loading and an optional Multifunction Roll Unit, the TX-4000 printer offers greater productivity, usability, and document access control sought in the CAD industry.

PRINTER SPECIFICATIONS

PRINTER TYPE: 5-Color 44-inch Printer

NUMBER OF NOZZLES:

Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each

NOZZLE PITCH

1200 dpi Non-firing nozzle detection and compensation

PRINT RESOLUTION (UP TO)(Up to) 2400×1200dpi (Max)

OS COMPATIABILITY

Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)

STANDARD INTERFACE

USB 2.0 High-Speed 10/100/1000

Base-T/TXINK

DROPLET SIZE:  5 picoliter

INK CAPACITY: 160 ml, 330ml or 700ml per color

INK TYPES:  Pigment Ink

COLOR SET: Pigment: Matte Black, Black, Cyan, Magenta, Yellow

BUFFER / RAM: 128 GB (Virtual)   2 GB (Physical)

HARD DRIVE: 500 GB

MEDIA WIDTH:

Cut Sheet - 8"- 44"

Roll Feed - 8" - 44"

MEDIA THICKNESS

0.07-0.8mm (2.8-31.4mil)
Roll: 0.07 - 0.8 mm (2.8 - 31.4mil)

MAX. ROLL PRINT LENGTH: Roll Feed - 59' (18 meters)

MAX. MEDIA ROLL DIAMETER: 6.7" (170mm)

BORDERLESS PRINTING WIDTH (ROLL MEDIA ONLY):

8”, 10", 12”, 14", 16” 17", 20”, 24", 30”, 36", 42”, 44” B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+ (12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594 mm), B1 (28.66"/ 728 mm), A0 (33.11"/841 mm), B0 (40.55”/1030 mm)

PAPER-FEED METHOD:

Roll Feed: One Roll, Front-loading, Front Output Front Loading
Manual Feed: One Roll, Front Output

LANGUAGESS

GRaster, HPGL/2, HP-RTL, PDF, JPEG

NOISE LEVEL (APPROX.)

Operation: 51 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.9 Bels or less

PHYSICAL DIMENSIONS

46.0“ x 62.7“ x 46.8“ (Main unit and TX Stacker)WEIGHTapprox.277 lbs (roll holder included, no inks, no print heads)

POWER SOURCE: AC-100-240V (50-60Hz)

POWER CONSUMPTION

Maximum: 107W or less
Standby 3.6W or less
Power Off: 0.3W or less (Compliant with Executive Order)

OPERATING ENVIRONMENT TEMPERATURE

59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)

USER-REPLACEABLE ITEMS

Print Head (PF-06) Maintenance Cartridge (MC-30) Ink Tanks (PFI-110/PFI-310/PFI-710)

SOFTWARE INCLUDED

Accounting Manager, Apple AirPrint7, Canon Print Service, Device Management Console, Direct Print & Share6, Free Layout Tool, Media Configuration Tool, PosterArtist Lite for Windows, Printer Driver Extra Kit for Windows/Mac (Free Print Utility Layout, Advanced Preview), Optimized Driver for AutoCAD, Print Plug-in for Microsoft® Word/Excel/PowerPoint® for Windows, Quick Utility Toolbox
