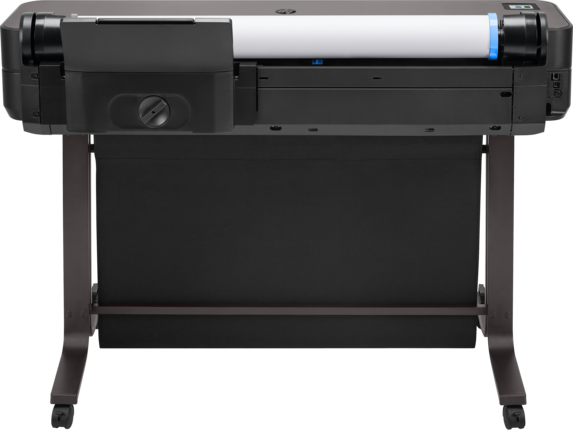

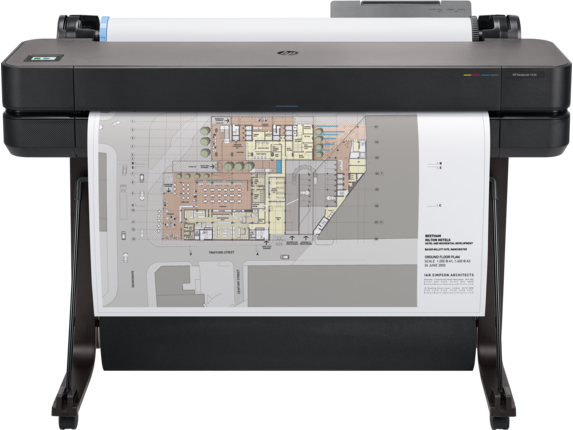

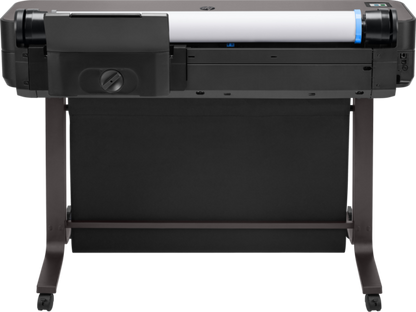

HP DesignJet T630 Large Format Wireless Plotter Printer - 36", with convenient 1-Click Printing (5HB11A)

Regular price
$1,899.00
Regular price
Sale price
$1,899.00
    HP DesignJet T630 Large Format Wireless Plotter Printer - 36", with convenient 1-Click Printing (5HB11A)
    HP DesignJet T630 Large Format Wireless Plotter Printer - 36", with convenient 1-Click Printing (5HB11A)

    Tech Specs

    HP DesignJet T630 Large Format Wireless Plotter Printer - 36", with convenient 1-Click Printing (5HB11A)

    Product specifications

    Functions

    Print

    Print speed

    30 sec/page on D, 76 D prints per hour
    [1]

    Resolution (color)

    Up to 2400 x 1200 optimized dpi

    Print Technology

    HP Thermal Inkjet

    Number of print cartridges

    4 (C, M, Y, K)

    Product disclaimer

    This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:

    http://www.hp.com/learn/ds

    Compatible ink types

    Dye-based (C, M, Y); pigment-based (K)

    Print languages

    HP-GL/2, HP-RTL, CALS G4, JPEG, URF

    Connectivity

    Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

    Memory

    1 GB

    Hard disk

    None

    Non-printable area (cut-sheet)

    0.2 x 0.2 x 0.2 x 0.2 in

    Line accuracy

    ±0.1%
    [3]

    Maximum optical density (black)

    8 L* min/2.10 D
    [4]

    Finished output handling

    Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

    Media sizes supported

    Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0

    Media sizes

    11 to 36 in

    Media types

    Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

    Roll external diameter

    3.9 in

    Media thickness

    Up to 11.8 mil

    Power

    Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max. Not dual voltage, power supply varies by part number with # Option code identifier.

    Power consumption

    <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

    Operating temperature range

    41 to 104ºF

    Warranty

    One-year limited hardware warranty

    Software included

    HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

    Dimensions (W X D X H)

    51.9 x 23.8 x 36.7 in

    Weight

    76.5 lb

    Package weight

    121.9 lb
