• High Quality 5M UV Roll To Roll Printer 3D Printing Machine For Wallpaper Printing (4, 8 or 12 heads)
1 1

Wide Image Solutions

High Quality 5M UV Roll To Roll Printer 3D Printing Machine For Wallpaper Printing (4, 8 or 12 heads)

Please choose
$110,250.40
$110,250.40
    High Quality 5M UV Roll To Roll Printer 3D Printing Machine For Wallpaper Printing (4, 8 or 12 heads)

    Tech Specs

    Description:

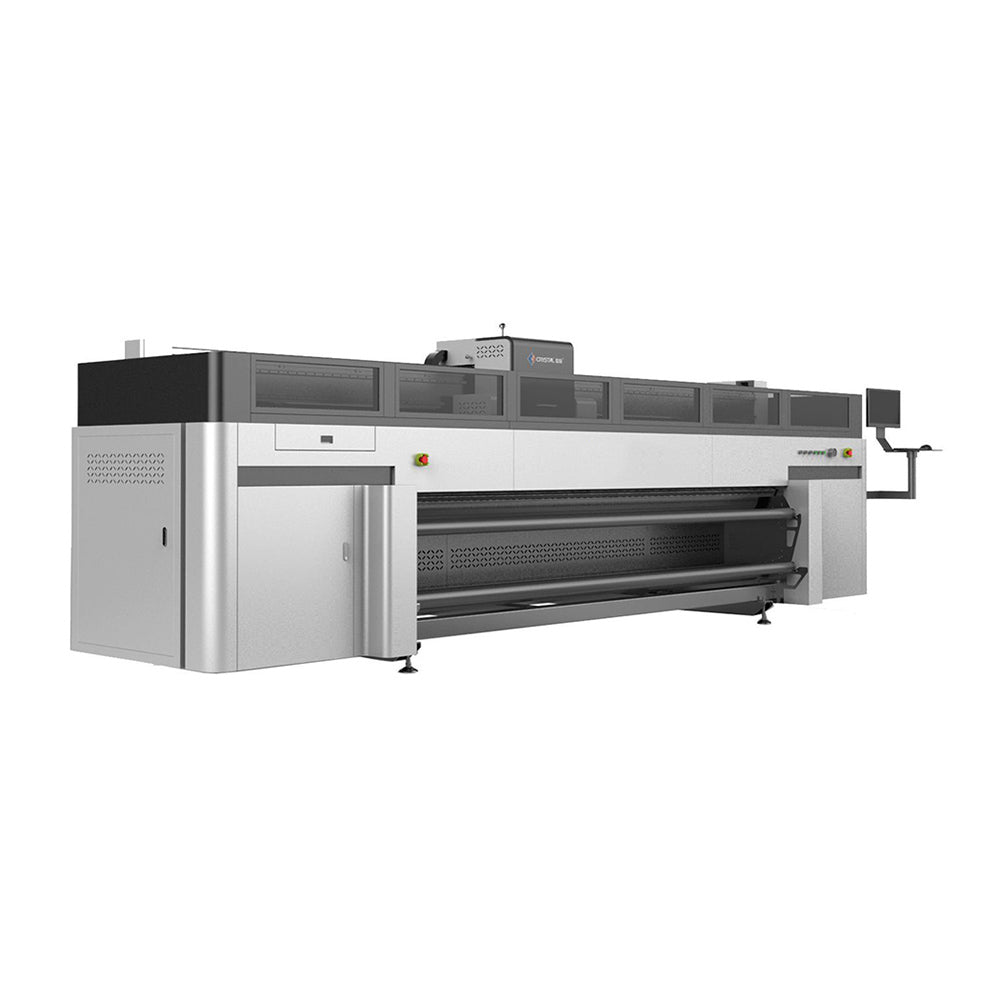

    This is a High Quality 5M UV Roll To Roll Printer, 3D Printing Machine for Wallpaper Printing.

    • ENSURE HIGH RESOLUTION OUTPUT, MORE STABLE WALKING, FASTER AND MORE
      SENSITIVE TWO-WAY SWITCHING,IT GUARANTEES FASTER PRODUCTION SPEED AND
      HIGHER PRINTING ACCURACY
    • HIGH POWER DOUBLE PANASONIC MOTOR, ENSURE FULL POWER,
      SYNCHRONOUS MODE PRINTING,CLOTH WALKING IS MORE ACCURATE
    • SUPER LARGE FOUR-STICK LINKAGE SYSTEM TO ENSURE PRINTING QUALITY,
      EFFECTIVE MATERIAL WRINKLING, ENSURE THE PRINTING ACCURACY
    • PROTECT THE DATA TRANSMISSION LINE, PROTECT THE MOTION CABLE

    Features

    1. Advanced printing control technology, save more cost of ink.
    2. Highest resolution up to 1440dpi.
    3. Highest resolution platform and material press system, durable and steady industrial level quality guarantee.
    4. 2000ml big volume ink supply sytem, fast, steady, high precision production.

    Application:

    Suitable for soft film, coated banner, light box cloth, board cloth, carpet, etc.

    Specification

    Printer Model

    K8-500 uv roll to roll

    Printhead Type

    Seiko 1024-6PL

    Number of Printhead

    4,8,12pcs

    Print Width

    5000mm

    Print Speed

    Draft mode

    363*1440 dpi (4 pass) 64㎡/h

    Standard mode

    363*2160dpi (6 pass) 48㎡/h

    High resolution mode

    363*2880 dpi (8 pass) 32㎡/h

    Ink Type

    UV ink

    Color

    K C M Y (Lc Lm)

    Cleaning System

    Intelligent cleaning

    RIP Software

    United Fancy / (Photoprint / onyx)

    Operation System

    Windows 7/Windows 8/Windows 10 warkstation

    Image Format

    TIFF / JPG / EPS / PDF

    Carriage Height

    With precision adjustment device of 2-5mm distance to platform adjustable

    Media

    Media Processing

    Roll to roll feeding and take up system

    Media Type

    Soft film, Banner, PVC flex banner, Leather, Backlit film, Wallpaper etc

    Print Information

    Working Voltage

    AC220V 50/60 HZ

    Power Specification

    Print system: 3000W    UV system: 2500W

    Working Enviomment

    Temperature: 22℃-30℃       Humidity: 15%-40% RH

    Machine Dimension

    8320mm (L) x 1740mm (W) x 1885mm (H)

    Package Dimension

    8320mm (L) x 1740mm (W) x 1885mm (H)

    Net Weight

    4250KG ± 15KG

    Gross Weight

    4250KG ± 15KG
