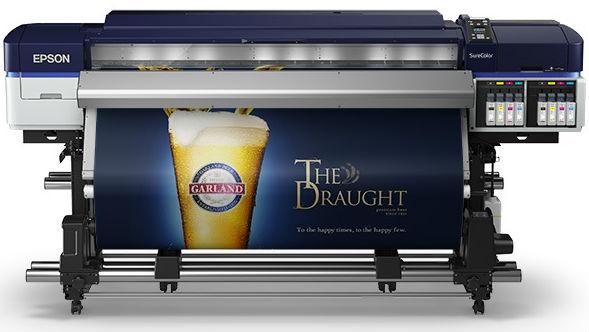

Epson SureColor S60600 Printer Solvent Production Edition 64"  15995.00

Epson SureColor S60600 Printer Solvent Production Edition 64"

  • $13,995.00

Epson SureColor S60600 Printer Dual CMYK (Replaces Epson SureColor S50670)

The Epson SureColor S60600 Printer is a production level wide format printer that delivers fast speeds on a variety of different media types. The versatility of this solvent wide format printer combined with quality engineering makes it a great choice for increasing your production and enhancing workflows.

A Performance Benchmark Has Been Set.

Introducing the all-new Epson SureColor S60600 Printer. This blazing fast printer has production print speeds of up to 550 sq. ft. per hour due to a CMYK Dual Array print head.


Utilizing a Dual-Array PrecisionCore® TFP® print head, the Epson SureColor S60600 is the printer to count on when deadlines need to be met.

 Delivering outstanding everyday production and versatility, the SureColor S60600 Printer redefines the price-performance equation, while delivering unmatched value for any size print shop.

Epson UltraChrome GS3 Solvent Ink: Newly formulated fast-drying UltraChrome GS3 Ink delivers outstanding print quality, durability, and superior media compatibility than previous SureColor S-Series printers. Individual 700 ml ink cartridges enable users to avoid production downtimes and maximize profitability. The SureColor S-Series printers are designed exclusively for use with Epson ink cartridges.

New Epson Dual-Array PrecisionCore TFP Print Head: Offers high performance and consistency, along with variable size ink droplet technology for remarkable photographic print quality. In addition, new hardware enhancements offer greater resistance to head strikes and a new Epson Precision Dot™ screening technology provides for output with less visible banding, even at the fastest of production print speeds.

New Precision Media Feeding System: Robust motorized Roll-to-Roll media handling with Automatic Tension Control technology provides extremely accurate media feed and take-up. Forty individual media Rollers with five independent pinch Rollers offer superior media skew control, drastically reducing print head strikes. And, an innovative media path optimized for consistent media feed enables true unattended Roll-to-Roll printing.

Simple Operation and Maintenance: Automatic media alignment and setup will allow for faster switching between media types. Automatic print head cleaning – including a newly-developed fabric print head wiper system – significantly reducing the need for manual print head maintenance. Air circulation system keeps the print head cleaner for extended performance in high production environments. And, for a complete workflow solution, Epson includes a full copy of ONYX® GamaPrint Pro with free profile installation for the most popular signage media types.

Epson SureColor S60600 Print Speeds:

Banner Production Speed: 550 Sq.ft/hour

Vinyl Production Speed: 310 Sq.ft/hour

Base Printing Technology
Advanced PrecisionCore TFP Print Head
8-channel, drop-on-demand, ink jet head
8-cartridge (C x2,M x2,Y x2,K x2)
Epson Ultrachrome GS3 ink
Professional-level solvent-based ink technology
Printer Nozzle Configuration Color and Monochrome; 720 nozzles per Color
Smallest droplet size is 4.2 picoliters
Resolutions 1440 x 1440 dpi; 1440 x 720 dpi;
720 x 720 dpi; 720 x 360 dpi
Dimensions 103" (W) x 34" (D) x 53" (H)
Printer Weight 635 lbs
Printer Engine Speeds


1020 sq ft/hr
550 sq ft/hr
310 sq ft/hr

310 sq ft/hr
190 sq ft/hr
Media Handling

Media Input

Cut Sheet Size

Media Core Compatibility

Input roll media diameter

Input roll media weight

Media Weight/Thickness

Roll media take-up reel

Output roll media weight

Single roll-to-roll minimum 12" wide up to 64" wide

17" x 22" up to 64" wide

2" or 3" cored media

Up to 9.8"

Up to 95 lbs.

from 45 gsm up to 1.0 mm thick

Fully automatic "wind in" or "wind out" with tension bar

Up to 95 lbs.
Acoustic Noise Level Approximately 59 dB(A) according to ISO 7779
Front-End RIP Workflow

GammaPrint Pro PANTONE licensed PostScipt
Language Level 3 compatible RIP by ONYX. Includes
full workflow software with layout, nesting, tiling,
custom media support and RIP queue functionality.

The Epson SureColor S40600 is also supported by
most leading third-party RIPs and workflows
Onyx GammaPrint Pro RIP

Server Workstation:
Windows 7, 8 or 10 (64-bit only)
3.2 GHz Intel i7 or better 8 GB memory recommended

Client Workstation
Macintosh 10.5+, Windows 7, 8 or 10 (64-bit only)
Printer Interfaces Includes as standard one Hi-Speed USB 2.0 (1.1
compatible) and one Gigabit Ethernet port
Epson Ultrachrome GS3 Ink Black, Cyan Magenta, and Yellow
Limited Warranty and Service
Standard one-year on site next business day service
with toll-free phone support Monday thru Friday.

Optional Epson SureColor S60600 Extended service
plans available for purchase for up to three years of
total coverage.
Printable Area

Maximum Paper Width

Minimum Paper Width

Left and right margins

Maximum printable width



0.20: (0.40" total)

63.6 -inches

* The printer is designed exclusivley for use with
EPSON cartridges for grater reliability.
Media Heating System

Pre Heater

Platen Heater

Post Heater

Off or 86 to 122 F (off or 30 to 50C)

Off or 86 to 122 F (off or 30 to 50C)

Off or 86 to 131 F (off or 30 to 55C)

*Independently controlled via control panel or front-
end RIP
Epson Intelligent Ink

Cartridge fill volume

Ink cartridge shelf life

700 ml each x 4 colors total

2 years from printed production date or 6 months
after open
Image Permanence Ratings

Full Color - Up to 3 Years

Test Results based upson Epson Testing Labs using
the ISO 18930 print surability standard.
All print results are upon un-laminated prints printed
on adhesive back vinyl.
Durability numbers above are estimates of maximum
image permanence.
Your actual results may vary depending upson media
type used. environmental display conditions and
other factors.
Epson does not warrant durability.
Please visit 3M and Avery web site for laminated
durability claims using their warranty programs.

Temperature Operating

Relative Humidity

Recommended Storage

Installation Requirements

50 to 95F (10 to 35C)
-4 to 104F (-20 to 40C)

20 to 80% (40 to 60% recommended)

5 to 85% (no condensation)

Virtually any location with a typical air conditioning or
other air ventilation system. No forced ventilation or air
purification systems required.
Electrical Requirements



Power Consumption

Standby Heaters ON
Standby Heaters OFF
Power Off
Power Off

Requires Two 110v Outlets
AC 100-120 V, AC 200-240 V
50-60 Hz
20A at AC 110-120 V or 10A at AC 200-240 V

AC 100-120 V, AC 200-240 V
50-60 Hz
1A at AC 110-120 V or 0.5A at AC 200-240 V

Approx. 650W or Less
Approx. 520W
Approx. 30W or less
Less than 3.5W
Less than 0.6W or less
Approx. 45W
Approx. 0.3W
Less than 0.6W
