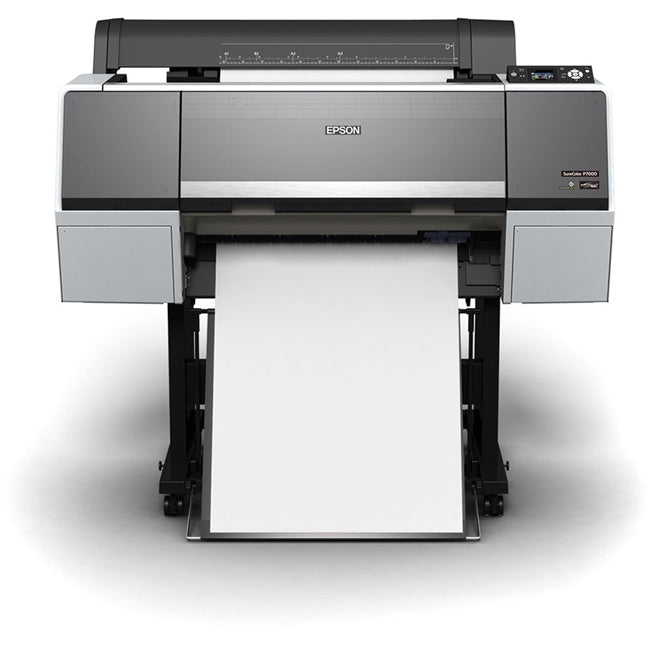

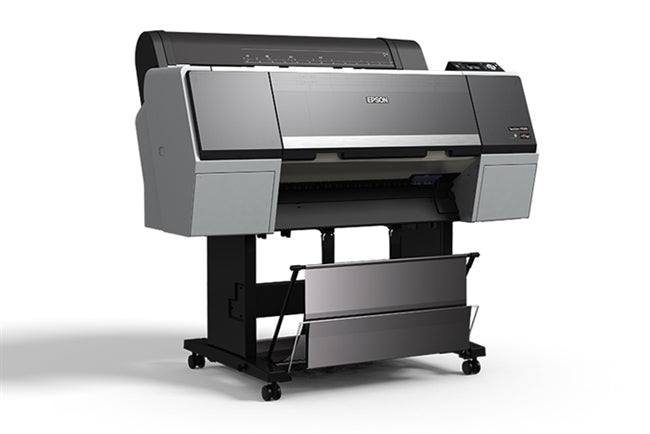

Epson SureColor P7000 24" Wide Format Printer
Print:
Printing Technology:
PrecisionCore TFP Print Head
Maximum Print Resolution:
2880 x 1440 dpi; 1440 x 1440 dpi; 1440 x 720 dpi;
Print Speed:
16" x 20" prints from 2:02 to 6:58; Production is 4:16
20" x 30" prints from 3:40 to 12:25; Production is 7:36
40" x 60" prints from 11:15 to 40:05; Production is 24:20
Nozzle Configuration:
Color and Monochrome; 360 nozzles x 10
Ink:
Ink Type:
Epson UltraChrome HDX pigment inks, 11-ink, 10-color
Standard Edition Ink Configuration: C, LC, VM, VLM, Y, LK, LLK, O, G and PK or MK
Replacement Ink:
Ink Cartridge (150 ml)
Photo Black T834100
Cyan T834200
Vivid Magenta T834300
Yellow T834400
Light Cyan T834500
Vivid Light Magenta T834600
Light Black T834700
Matte Black T834800
Light Light Black T834900
Orange T834A00
Green T834B00
Violet T834D00
Ink Cartridge (350 ml)
Photo Black T824100
Cyan T824200
Vivid Magenta T824300
Yellow T824400
Light Cyan T824500
Vivid Light Magenta T824600
Light Black T824700
Matte Black T824800
Light Light Black T824900
Orange T824A00
Green T824B00
Violet T824D00
Ink Cartridge (700 ml)
Photo Black T804100
Cyan T804200
Vivid Magenta T804300
Yellow T804400
Light Cyan T804500
Vivid Light Magenta T804600
Light Black T804700
Matte Black T804800
Light Light Black T804900
Orange T804A00
Green T804B00
Violet T804D00
Fade Resistance / Print Longevity:
Color: Up to 200 years
Black-and-White: Up to 400 years
General:
Operating Systems:
Apple macOS® 10.13.x-10.12.x, OS X®: 10.11x-10.7x
Microsoft® Windows®: 10, 8.1, 7 (32-bit, 64-bit)
Temperature:
65° to 75°F (18° to 24°C)
Humidity:
40 to 60% (no condensation)
Dimensions:
54" x 26" x 48" (L x W x H)
Weight:
223 lbs (101 kg)
Ink Supply System:
Ink Supply Fill Volume:
150 ml, 350 ml, or 700 ml each x 11 colors total
Ink Shelf Life:
2 years from printed production date or 6 months after open
Printable Area and Accuracy:
Maximum Paper Width:
24" (SC-P7000)
Minimum Cut-sheet Size:
8.5" x 11"
Line Accuracy:
+/- 0.2% of specified length (+/- .26mm minimum)
Maximum Printable Length:
529"
Sheet Media Handling:
Sheet Loading:
Auto-loading if less than .5mm thick
Thickness:
0.8mm to 1.5mm
Single Sheet, Top-loading:
up to 24" wide (SC-P7000)
Left/Right Margins:
3mm each side; 6mm or 0.24" total
Top/Bottom Margins:
3mm / 15mm
Roll Media Handling:
Roll Cutting:
High-speed internal rotary cutter; auto or manual
Printer Details:
Printer Language:
EPSON ESC/P® raster photographic drivers standard
Interfaces:
One Hi-Speed USB 2.0 port (1 port)
1000Base-T Ethernet (1 port)
Power:
Rated Voltage:
AC 100-240 V
Rated Frequency:
50-60 Hz
Power Consumption:
Printing: Approx. 65 W
Ready: Approx. 19 W
Power Off: Less than 0.5W
Rated Current:
Less than 2A
Auto-switching Black Ink Technology:
Black Ink Conversion Times, Normal Mode:
Matte to Photo Black: approx. 2:55
Photo to Matte Black: approx. 2:07
Black Ink Conversion Times, Quick Mode:
Matte to Photo Black: approx. 7.2 mL
Photo to Matte Black: approx. 1.12 mL

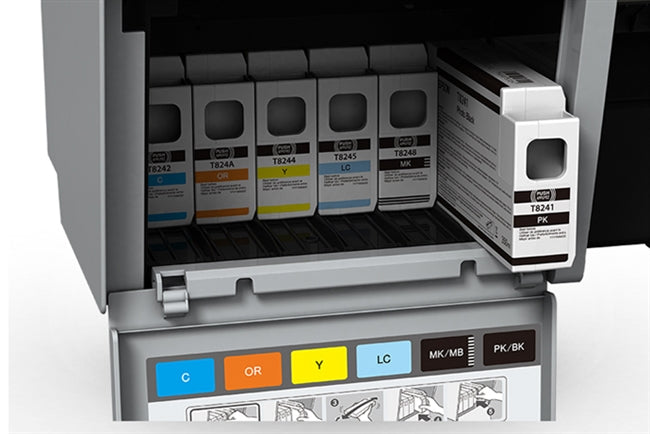

Epson Intelligent Ink Cartridges:
In-box Cartridge Fill Volume:
110 mL each color x 11 colors total
Retail Cartridge Fill Volume:
150, 350 or 700 mL each color x 9 colors total
Ink Cartridge Shelf Life:
2 years from printed production date or 6 months after opened. Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.
