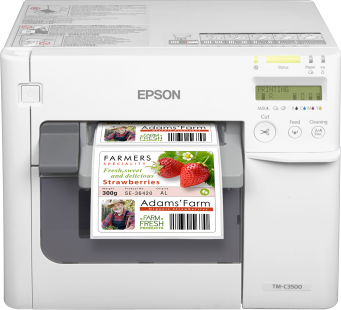

Epson ColorWorks C3500 Color Label Printer

Epson ColorWorks C3500 Color Label Printer

  • $1,550.00


Print Other:

Printing Technology:
MicroPiezo® inkjet technology, Automatic NozzleChecking

Print Resolution:
Speed Mode: 360 dpi x 360 dpi
Quality Mode: 720 dpi x 360 dpi

Print Width:
4.1" (104mm) max.

Print Speed:
High-speed mode: 360 dpi x 180 dpi
2.7"/sec. (4.1" print width)
3.3"/sec. (2.8" print width)
3.7"/sec. (2.2" print width)
Fine mode: 360 dpi x 360 dpi
1.4"/sec. (4.1" print width)
1.7"/sec. (2.8" print width)
1.9"/sec. (2.2" print width)

Ink:

Ink Type:
Pigmented ink, individual CMYK cartridges

Ink Configuration:
GJIC22P(C)   Cyan    C33S020581
GJIC22P(K)   Black    C33S020577
GJIC22P(M)   Magenta C33S020582
GJIC22P(Y)   Yellow   C33S020583

General:

Operating Systems:
Windows® XP 32-bit (SP3)/64-bit (SP2)
Windows Vista® 32-bit/64-bit (SP2)
Windows 7 32-bit/64-bit (SP1)
Windows 8 32-bit/64-bit

Temperature:
Operating: 10-35 degrees C
Storage: -20-40 degrees C

Humidity:
Operating: 20-80% RH humidity
Storage: 5-85% RH humidity

Sound Level:
Approx. 58 dBA

Dimensions:
Printer: 12.2" x 11.1" x 10.3" (W x D x H)
Shipping: 17.5" x 15.5" x 16.8" (W x D x H)

Weight:
Printer (without ink): 26 lbs (12.2 kg)
Shipping: 41 lbs (12.2 kg)

Safety Approvals:
EMI: FCC / ICES-003 Class B
Safety standards: UL60950-1/CSA C22.2 No.60950-1
Warranty: One year depot repair

Fonts:

Barcode:
UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1DataBar Omnidirectional, GS1 DataBar Truncated, GS1DataBar Limited, GS1 DataBar Expanded, PDF417, QRCode, Maxi Code, GS1 DataBar Stacked, GS1 DataBarStacked Omnidirectional, GS1 DataBar ExpandedStacked, DataMatrix, Aztec Code

Media Handling:

Width:
Roll feed: 1.2" – 4.25" (30 – 108mm)
Fan fold: 2.0" – 4.25" (50 – 108mm)

Type:
Roll-fed or fanfold; die cut or continuous; single layeror adhesive labels on liner; plain paper, fine paper, PETfilm, synthetic

Thickness:
4.7 – 7.5mils (0.12 – 0.19mm)

Roll Diameter:
O.D. 4.0" (102mm) max.
Core diameter 1.75" (44mm) to 2.25" (57mm)

Roll-fed Width:
1.2" – 4.25" (30 – 108mm)

Sensors:
Gap, black mark, media cut

Black Mark Size:
Min. 0.20 x 0.16" (5.0 x 4.0mm) (W x H)

Die-cut Label Gap:
Min. 0.12" (3.0mm)

Connectivity:

Standard Connectivity:
USB 2.0 High-speed, Ethernet 10/100 BASE-T

Display Terminal:


Ethernet:
Ethernet 10/100 BASE-T

Power:

Rated Voltage:
AC 100-240 VAC

Rated Frequency:
50-60 Hz

Power Consumption:
Printing: 30 W (average printing)
Standby: 2.5 W
Power Off state: 0.3 W

Power Source:
AC power adapter with line cord
