• COMPLETE SOLUTION - HP Latex 360 64" Printer - Refurbished (1 Y-Warranty) + 64" Graphtec FC8600-160 Vinyl Cutting Plotter (1 Y-Warranty) + 63" Cold Laminator with Heat Assisted + 51" x 98" Flatbed Lamination Table for All Size Prints
1 1

www.wideimagesolutions.com

COMPLETE SOLUTION - HP Latex 360 64" Printer - Refurbished (1 Y-Warranty) + 64" Graphtec FC8600-160 Vinyl Cutting Plotter (1 Y-Warranty) + 63" Cold Laminator with Heat Assisted + 51" x 98" Flatbed Lamination Table for All Size Prints

$22,496.99
$22,496.99
    COMPLETE SOLUTION - HP Latex 360 64" Printer - Refurbished (1 Y-Warranty) + 64" Graphtec FC8600-160 Vinyl Cutting Plotter (1 Y-Warranty) + 63" Cold Laminator with Heat Assisted + 51" x 98" Flatbed Lamination Table for All Size Prints

    Tech Specs

    Business Financing Available

    Note - Printer does not include inks or Starter Supplies, those are sold separately

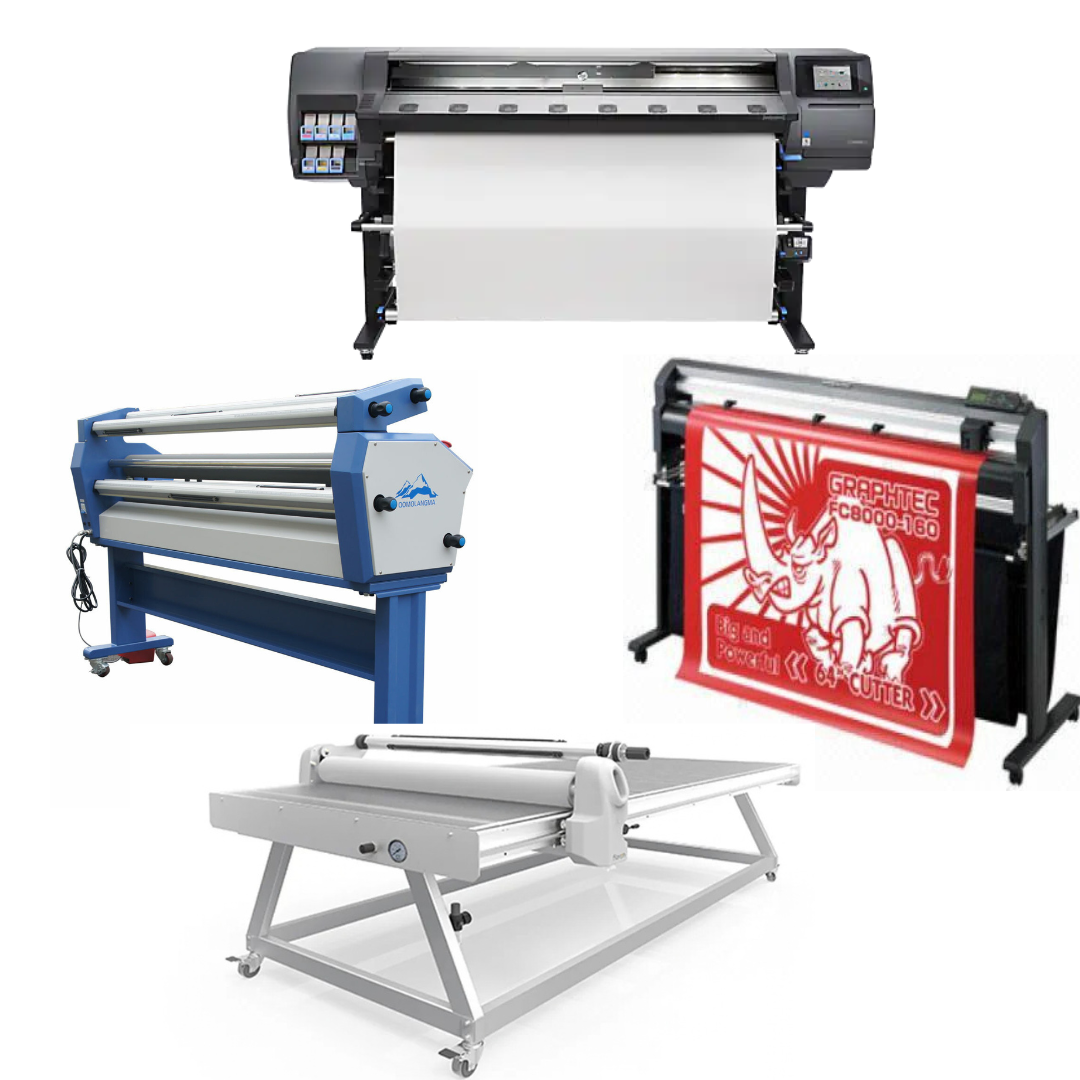

    This Package includes:

    • HP Latex 360 64in Printer - Refurbished (1 Year Warranty)
    • 64" Graphtec FC8600-160 High Performance Vinyl Cutting Plotter (1 Year Warranty)
    • 63" Full-auto Low Temp. Wide Format Cold Laminator, with Heat Assisted
    • Qomolangma 51" x 98" Flatbed Lamination Table for All Size Prints and Kinds of Board

    HP Latex 360 64in Printer

    HP Latex inks have many benefits over even eco-solvent inks, as they are odourless, of a high-quality and have significant health advantages. You don’t need to specially ventilate this printer, or attach hazard labels to it – the water-based inks are nickel-free, non-flammable and non-combustible.

    The versatility makes the HP Latex 360 ideal for print companies providing a range of different services for their clients. As well as the ability to print on various substrates, including textiles, users have access to an intuitive 8-inch touchscreen, through which they can save print profiles and fine-tune jobs to achieve the best possible results every time.

    Printing times are speedy too – the maximum speed the 360 can print at is 91m²/hr (980ft²/hr); 31m²/hr (334ft²/hr) on its high-speed outdoor quality setting, and 17m²/hr (183ft²/hr) on indoor quality.

    Thanks to the HP Latex 360’s innovative inks and curing processes, prints also come out dry and odourless. This means there are no special ventilation requirements, so the printer can be placed almost anywhere in your studio or office – great for those normally restricted by a lack of space.

    Key features

    • Maximum printing speed is 91m²/hr (980ft²/hr).
    • Print up to 64 inches.
    • Print a wider variety of signage and graphics, including billboards, hoardings, taxi wraps, outdoor banners, and more.
    • Achieve high-quality, 1200 dpi images with six colours.
    • No additional ventilation, hazard labels or HAPs are required, and the ink is nickel-free.
    • Perfect for producing outdoor prints, as they last up to five years when laminated, three when not.

    Technical specifications

    Printing

    Printing modes

    91 m²/hr (980 ft²/hr) - Max Speed (1 pass)
    31 m²/hr (334 ft²/hr) - Outdoor High Speed (4 pass)
    23 m²/hr (248 ft²/hr) - Outdoor Plus (6 pass)
    17 m²/hr (183 ft²/hr) - Indoor Quality (8 pass)
    14 m²/hr (151 ft²/hr) - Indoor High Quality (10 pass)
    6 m²/hr (65 ft²/hr)- Backlits, Textiles, and Canvas (16 pass)
    5 m²/hr (54 ft²/hr) - High Saturation Textiles (20 pass)

    Print resolution

    Up to 1200 x 1200 dpi

    Margins

    5 x 5 x 0 x 0 mm (0.2 x 0.2 x 0 x 0 in) (without edge holders)

    Ink types

    HP Latex Inks

    Ink cartridges

    Black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer

    Cartridge size

    775 ml

    Printheads

    6 (2 cyan/black, 2 magenta/yellow, 1 light magenta/light
    cyan, 1 HP Latex Optimizer)

    Color consistency

    <= 2 dE (95% colors)
    <= 1 dE average22

    Media

    Handling

    Roll feed; take-up reel; automatic cutter (for vinyl, paperbased media, backlit polyester film)

    Media types

    Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, textiles

    Roll size

    254 to 1625-mm (10 to 64-in) rolls (580 to 1625-mm (23 to 64-in) rolls with full support)

    Roll weight

    42 kg (92.6 lb)

    Roll diameter

    250 mm (9.8 in)

    Thickness

    Up to 0.5 mm (19.7 mil)

    Applications

    Banners, Displays, Double-sided banners, Exhibition, Event graphics,
    Exterior signage, Indoor posters, Interior decoration, Light boxes – film,
    Light boxes – paper, Murals, POP/POS, Posters, Textile, Vehicle graphics

    Connectivity

    Interfaces (standard)

    Gigabit Ethernet (1000Base-T)

    Dimensions (w x d x h)

    Printer

    2561 x 840 x 1380 mm (101 x 33 x 54 in)

    Shipping

    2795 x 760 x 1250 mm (110.1 x 30 x 49.3 in)

    Weight Printer

    207 kg (456 lb)

    Shipping

    301.5 kg (665 lb)

    54" Graphtec FC8600-130 High Performance Vinyl Cutting Plotter

    Description:
    The FC8600 series high performance cutting plotter is an industry leader for sign makers, graphic artists, automotive aftermarket professionals, countertop installers and other related users. The FC8600 series features a maximum cutting speed of 58.5 in/sec, 4.0G maximum acceleration, and 20 to 600g selectable cutting forces, allowing users to process diamond grade, high-intensity reflective film, sandblast resist rubber, automotive window & paint protection films, self-adhesive vinyl, Amberlith™  and Rubylith™ , among other media types.

    Features:
    • 3 inch wide user-friendly LCD control Panel, a Dual configuration function (two-user set and save customized conditions), included Ethernet capability (run multiple machines from one location), and an option for additional push rollers with 3 tension settings and the new 5th Generation ARMS system (automatically detects registration marks with color variants).

    • Graphtec’s next generation ARMS system adjusts for several types of potential print distortions, allowing for accurate contour cutting of pre-printed images and decals.
    New Features of the New ARMS
    •  Optical Sensor for Auto Alignment
    •  Sensitivity adjustment for registration mark detection on various media and colors.

    PERF CUT ENABLED high performance cutters finish the job!
    • With its included perf cut enabled custom tool settings—you have the ability to perforate cut all the way through your pre printed vinyl media for pop-out full-color stickers and decals without damaging your blade or cutting plotter machine.



    • New manufacturing technologies, along with the latest engineering advancements, have allowed Graphtec to make an unprecedented move forward in the industry. High performance features have been added to the new series yet its competitive pricing remains.
    • With the world’s fastest throughput performance and superb accuracy, the new FC8600 series accommodates the most demanding cutting and plotting projects and provides users with the versatility needed for a wide variety of applications.

    Specifications
    Model
    CPM-FC8600-130
    CPU
    32-Bit
    Configuration
    Digital Servo Friction feed with MicroGritroll™ drive
    Contour Cutting
    Automatic
    Class
    Pro Vinyl Cutters
    Intended Use
    Professional

    Max. cut width
    (expanded mode)
    1372 mm (54 in)

    Max Cutting Length
    15,240mm (600 in)
    Mountable media
    Max. width
    1529 mm (60.2 in)
    Min. width
    50 mm (2 in)
    Max. cross cut area
    1496 mm (58.9 in)
    Max. cutting speed (Axial)
    1485 mm / sec (58.5 in/s) at a 45° angle
    Max. axial acceleration
    4.0 G (39.2 m/s2)
    Cutting pressure
    20 g to 600 g (0.196 N to 5.88 N) in 48 steps
    Min. character size*1
    3 mm (0.125 in) alphanumeric Helvetica med. Font
    Mechanical resolution
    0.005 mm (0.0002 in)
    Programmable resolution
    GP-GL : 0.1 / 0.05 / 0.025 / 0.01 mm , HP-GL™ : 0.025 mm
    Repeatability*2
    Max. 0.1 mm / 2 m (0.0039 in / 80in)
    Tools
    Accepts (1) cutting blade, (1) plotting pen, or (1) pouncing tool ; Second penholder (optional)
    Motor Type
    Servo
    Blade types
    Supersteel (0.9 mm or 1.5 mm), Sapphire(1.5 mm)
    Pen types
    Water-based fiber-tip, oil-based ballpoint, and disposable ink pens
    Pouncing tool type
    Requires optional pouncing tool : (PPA33-TP12, 1.2-mm pin diameter)
    Media types
    Self-adhesive vinyl film, diamond grade, fluorescent film, reflective film, AmberlithTM , RubylithTM , window film, high-intensity reflective film*3 , paint protection film, up to 0.25 mm tick , sandblast resist rubber up to 1 mm thick, etc.
    Compatible paper for pouncing
    Regular paper from 0.06 to 0.13 mm thick
    Standard interfaces
    RS-232C / USB2.0 (Full speed), Ethernet
    Buffer memory
    2 MB
    Command sets
    GP-GL / HP-GLTM*4
    LCD display Graphic type
    3 inches LCD backlight type
    Power supply
    100 to 240 VAC/50 to 60 Hz (Auto switching)
    Power consumption
    160 VA max.
    Operating environment
    Temperature: +10°C to +35°C
    Humidity: 35 % to 75 % (non-condensing)
    Guaranteed accuracy environment
    Temperature: +16°C to +32°C
    Humidity: 35 % to 70 % (non-condensing)
    External dimensions (W x D x H) including stand*5
    1878 x 715 x 1219 mm
    73.9 x 28.1 x 48 in
    Weight including stand
    54 kg (119 lbs)
    Compatible OS
    Windows 2000 / Windows XP / Windows Vista Macintosh OS 10.2 or later
    Certifications
    UL, CUL, CE marking, RoHS, China RoHS



    67in x 126in Flatbed Hot and Cold Laminator for Rigid & Flex Media

    Flatbed Laminator is designed to enable easy and precise applications of foil and self-adhesive vinyl on a wide variety of materials / panels (e.g. sheet metal, plastic, glass and banners), it can be used as well for panels mounting and industrial applications.
    Suitable for flex signs, self-adhesive applications and rigid panels etc.

    Suitable Materials:
    Flexible media, boards, plastic, glass, PVC banners, wide format graphics for exhibitions and events, Road signs, many more.

    Advantages:
    • Flatbed applicator that guarantees the best results for efficiency and quality; it is ergonomic, easy-to-use, precise and safe.
    • Fully equipped multipurpose work table that gives you access to the superior production method provided by the Flatbed Applicator technique.
    • Affordable solution to increase the productivity of operators of visual communication and digital printing as the road sign makers.
    • Working table made on glass and covered with a self-healing Cutting Mat. The table is illuminated thanks to fluorescent tubes; complete with media roll-holder for side pocket.
    • Rubber roller very simple to move that allows bubble-free results.
    • Mounted on wheels.

    Main Configuration:
    • Move gantry forward and backward to laminate
    • Air cylinder for nip-gap and pressure adjustment
    • Variable pressure silicon roller locks the substrates into place
    • Illuminated table is ideal to apply multi - colored or translucent graphics
    • Imported silicon roller for heavy-duty work. Roller can be automatically adjusted in height to accommodate different substrates
    • Exchangeable top and bottom silicon rollers for labor and cost saving
    • Side tray for easy storage
    • Miracle static-free device for safety
    • Infrared temperature control system provides accurate temperature for different medias
    • Heat-assist cold flatbed laminator, max temp 120℃ (248℉)
    • Pneumatic lifting roller guarantee stable lamination
    • Air cylinder for height and pressure adjustable, oil-water separator for pressure adjustment
