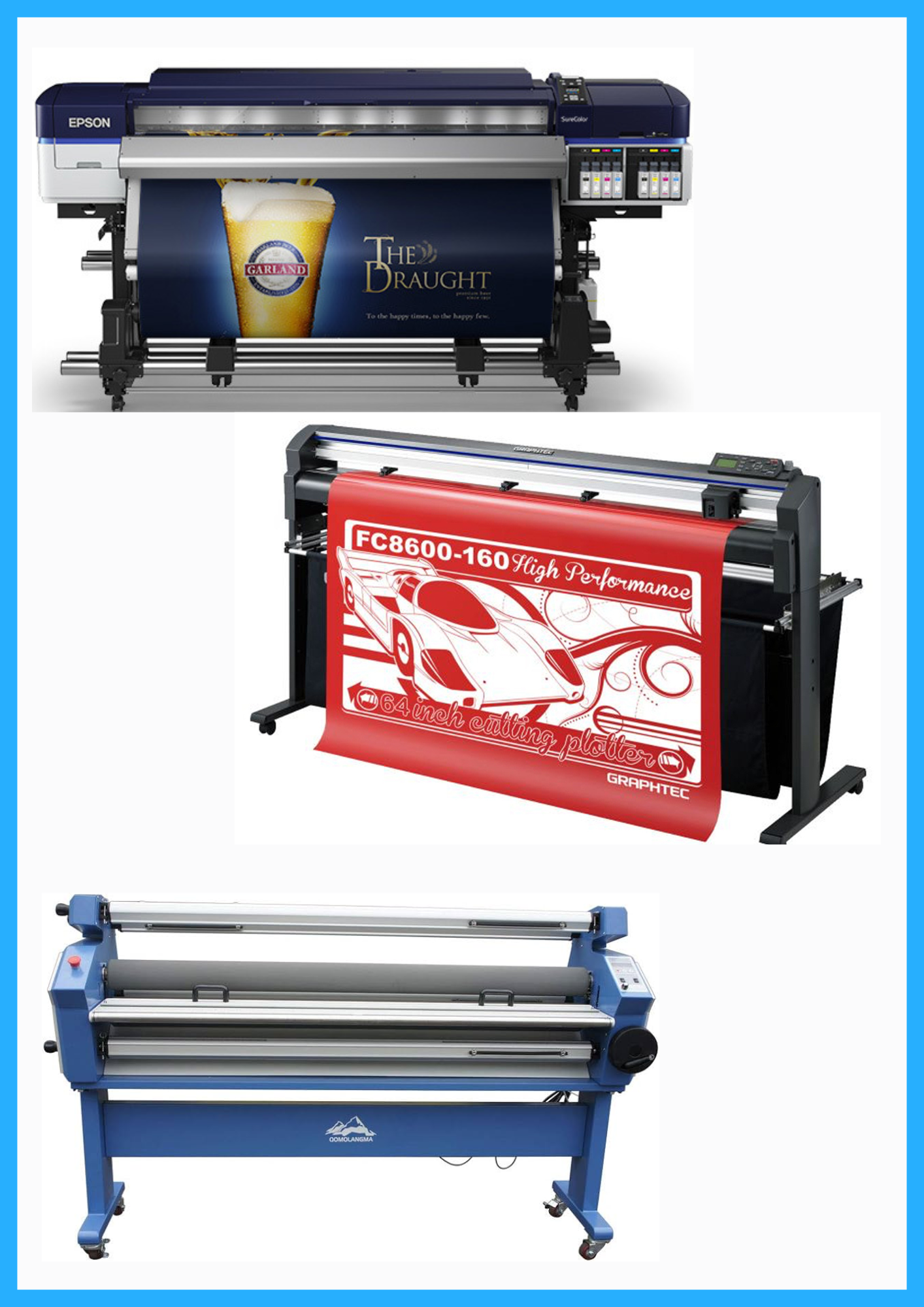

COMPLETE SOLUTION - Epson SureColor S60600 Production Edition Printer - Refurbished (1 Year Warranty) + 64" Graphtec FC8600-160 Vinyl Cutting Plotter - Refurbished (1 Year Warranty) + 55" Full-Auto Wide Format Cold Laminator with Heat Assisted - New

Regular price: $16,097.00
Regular price: ~~$16,497.99~~
Sale price: $16,097.00

Tech Specs

This Package includes:

Epson SureColor S60600 Production Edition 64" Roll-to-Roll Solvent Dual CMYK Printer - Refurbished (1 Year Warranty)
64" Graphtec FC8600-160 Vinyl Cutting Plotter - Refurbished (1 Year Warranty)
55" Full-Auto Wide Format Cold Laminator with Heat Assisted - New

Note: Epson printers don't come with Inks or starter supplies, those are sold separately

Printer Overview

Epson SureColor S60600 Printer Dual CMYK (Replaces Epson SureColor S50670)

Value affordable 64" roll-to-roll signage printer

High-speed performance outdoor production speeds up to 550 sq ft/hr and indoor-quality production speeds up to 310 sq ft/hr

UltraChrome GS3 Ink proven dual 4-color solvent-based ink system

Productivity Epson Precision DotTM technology allows for band-free printing at high speeds

Easy media setup set up new media in minutes

Simple maintenance fabric wiper and air filtration system to ensure continuous, reliable production

Epson UltraChrome GS3 Inks

Production capacity - high-capacity ink cartridges at 1400 ml per color (700ml per cartridge)

Extreme color gamut - produce vibrant images using just four colors

Superior media compatibility - print on virtually any media type from adhesive vinyl to banner material

Same day lamination - first solvent printers to offer same day lamination

Environmentally responsible - no special ventilation or air purification is required.

PrecisionCore TFP Print Head

Consistent Color - efficient, precise and repeatable performance with excellent image quality

Precision - low vibration meniscus control for highly accurate dot shape and placement

PrecisionCore TFP printhead - one-inch wide print head with 720 nozzles per color

Epson Precision Dot - delivers best-in-class image quality at commercial-level print speeds

Robust Print Head Design - designed specifically for the high-demands of production environments

Epson SureColor Solvent Printers

Replacing Maintenance Parts SureColor S60600 Printer

How to clean nozzles - SureColor S60600

How to run a nozzle check - SureColor S60600

SPECIFICATIONS

Base Printing Technology	Advanced PrecisionCore TFP Print Head 8-channel, drop-on-demand, ink jet head 8-cartridge (C x2,M x2,Y x2,K x2) Epson Ultrachrome GS3 ink Professional-level solvent-based ink technology
Printer Nozzle Configuration	Color and Monochrome; 720 nozzles per Color Smallest droplet size is 4.2 picoliters
Resolutions	1440 x 1440 dpi; 1440 x 720 dpi; 720 x 720 dpi; 720 x 360 dpi
Dimensions	103" (W) x 34" (D) x 53" (H)
Printer Weight	635 lbs
Printer Engine Speeds Banner Draft Production Quality Vinyl Draft Production Quality	1020 sq ft/hr 550 sq ft/hr 310 sq ft/hr N/A 310 sq ft/hr 190 sq ft/hr
Media Handling Media Input Cut Sheet Size Media Core Compatibility Input roll media diameter Input roll media weight Media Weight/Thickness Roll media take-up reel Output roll media weight	Single roll-to-roll minimum 12" wide up to 64" wide 17" x 22" up to 64" wide 2" or 3" cored media Up to 9.8" Up to 95 lbs. from 45 gsm up to 1.0 mm thick Fully automatic "wind in" or "wind out" with tension bar Up to 95 lbs.
Acoustic Noise Level	Approximately 59 dB(A) according to ISO 7779
Onyx GammaPrint Pro RIP Requirements	Server Workstation: Windows 7, 8 or 10 (64-bit only) 3.2 GHz Intel i7 or better 8 GB memory recommended Client Workstation Macintosh 10.5+, Windows 7, 8 or 10 (64-bit only)
Epson Ultrachrome GS3 Ink	Black, Cyan Magenta, and Yellow
Printable Area Maximum Paper Width Minimum Paper Width Left and right margins Maximum printable width	64-inch 12-inch 0.20: (0.40" total) 63.6 -inches * The printer is designed exclusivley for use with EPSON cartridges for grater reliability.
Media Heating System Pre Heater Platen Heater Post Heater	Off or 86 to 122 F (off or 30 to 50C) Off or 86 to 122 F (off or 30 to 50C) Off or 86 to 131 F (off or 30 to 55C) *Independently controlled via control panel or front- end RIP
Epson Intelligent Ink Cartridge Cartridge fill volume Ink cartridge shelf life (recommended)	700 ml each x 4 colors total 2 years from printed production date or 6 months after open
Image Permanence Ratings	Full Color - Up to 3 Years Test Results based upson Epson Testing Labs using the ISO 18930 print surability standard. All print results are upon un-laminated prints printed on adhesive back vinyl. Durability numbers above are estimates of maximum image permanence. Your actual results may vary depending upson media type used. environmental display conditions and other factors. Epson does not warrant durability. Please visit 3M and Avery web site for laminated durability claims using their warranty programs.
Environmental Characteristics Temperature Operating Storage Relative Humidity Operating Recommended Storage Installation Requirements	50 to 95F (10 to 35C) -4 to 104F (-20 to 40C) 20 to 80% (40 to 60% recommended) 5 to 85% (no condensation) Virtually any location with a typical air conditioning or other air ventilation system. No forced ventilation or air purification systems required.
Electrical Requirements Printer Voltage Frequency Current Voltage Frequency Current Power Consumption Printer Operating Standby Heaters ON Standby Heaters OFF Sleep Power Off Operating Sleep Power Off	Requires Two 110v Outlets AC 100-120 V, AC 200-240 V 50-60 Hz 20A at AC 110-120 V or 10A at AC 200-240 V AC 100-120 V, AC 200-240 V 50-60 Hz 1A at AC 110-120 V or 0.5A at AC 200-240 V Approx. 650W or Less Approx. 520W Approx. 30W or less Less than 3.5W Less than 0.6W or less Approx. 45W Approx. 0.3W Less than 0.6W
