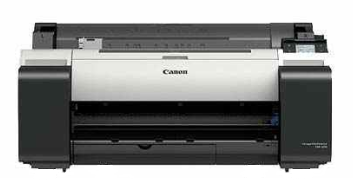

Canon imagePROGRAF TM-200 24" Printer without Stand

Canon imagePROGRAF TM-200 24" Printer without Stand

  • $1,880.00


Printer Type


5-Color 24-inch Printer

Number of Nozzles


Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch


1,200 dpi
Non-firing nozzle detection and compensation

OS Compatibility


Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh OS X v10.10.5-v10.12x

Standard Interfaces


USB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)

Ink Droplet Size


5 picoliter

Ink Capacity


130 ml or 300ml per color

Ink Droplet Size


Pigment Ink

Color Set


Pigment: Matte Black, Black, Cyan, Magenta, Yellow

Buffer Ram


2 GB (Physical)

Media Width


Cut Sheet - 8- 24
Roll Feed - 8 - 24

Media Thickness


0.07-0.8mm

Maximum Roll Print Length


Roll Feed - 59' (18 meters)

Maximum Media Roll Diameter


5.9 (150mm)

Borderless Printing Width


8, 10, 12, 14, 16 17, 20, 24 B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm)

Paper Feed Method


Roll Feed: One Roll, Top-loading, Front
Output Cut Sheet: Top Loading, Front Output

Languages


SGRaster, HPGL/2, HP-RTL, JPEG

Noise Level Approx


Operation: 44 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 6.0 Bels

Physical Dimensions


42.0 x 38 x 34

Weight


approx.112 lbs (roll holder included, no inks, no print heads)

Power Source


AC100-240V (50-60Hz)

Power Consumption


Maximum: 69W or less
Standby 3.6W or less
Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment


Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)

User-replaceable items


Print Head (PF-06)Maintenance Cartridge (MC-31)Ink Tanks (PFI-120/PFI-320)Cutter Blade (CT-08)

Software Included


TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor
