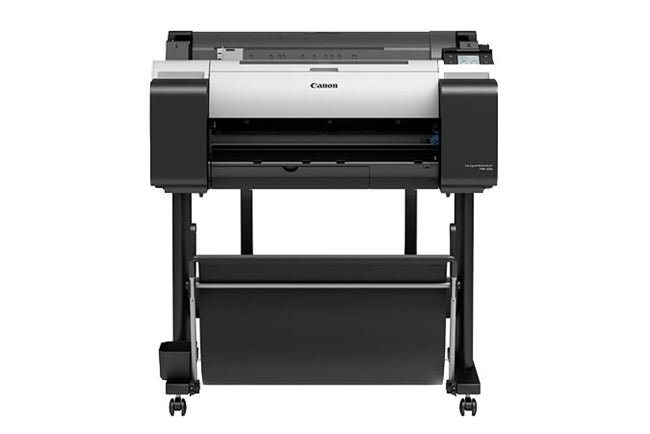

Canon imagePROGRAF TM-200 24" Printer
Printer Type
5-Color 24-inch Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1,200 dpi
Non-firing nozzle detection and compensation
Non-firing nozzle detection and compensation
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh OS X v10.10.5-v10.12x
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh OS X v10.10.5-v10.12x
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
Ink Droplet Size
5 picoliter
Ink Capacity
130 ml or 300ml per color
Ink Droplet Size
Pigment Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram
2 GB (Physical)
Media Width
Cut Sheet - 8- 24
Roll Feed - 8 - 24
Roll Feed - 8 - 24
Media Thickness
0.07-0.8mm
Maximum Roll Print Length
Roll Feed - 59' (18 meters)
Maximum Media Roll Diameter
5.9 (150mm)
Borderless Printing Width
8, 10, 12, 14, 16 17, 20, 24 B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm)
Paper Feed Method
Roll Feed: One Roll, Top-loading, Front
Output Cut Sheet: Top Loading, Front Output
Output Cut Sheet: Top Loading, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, JPEG
Noise Level Approx
Operation: 44 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.0 Bels or less
Standby: 35 dB (A) or less
Acoustic Power: 6.0 Bels or less
Physical Dimensions
42.0 x 38 x 34
Weight
approx.112 lbs (roll holder included, no inks, no print heads)
Power Source
AC100-240V (50-60Hz)
Power Consumption
Maximum: 69W or less
Standby 3.6W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Standby 3.6W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-06)Maintenance Cartridge (MC-31)Ink Tanks (PFI-120/PFI-320)Cutter Blade (CT-08)
Software Included
TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor
