Tech Specs
Regularly $6,072 - now only $5,497
Description

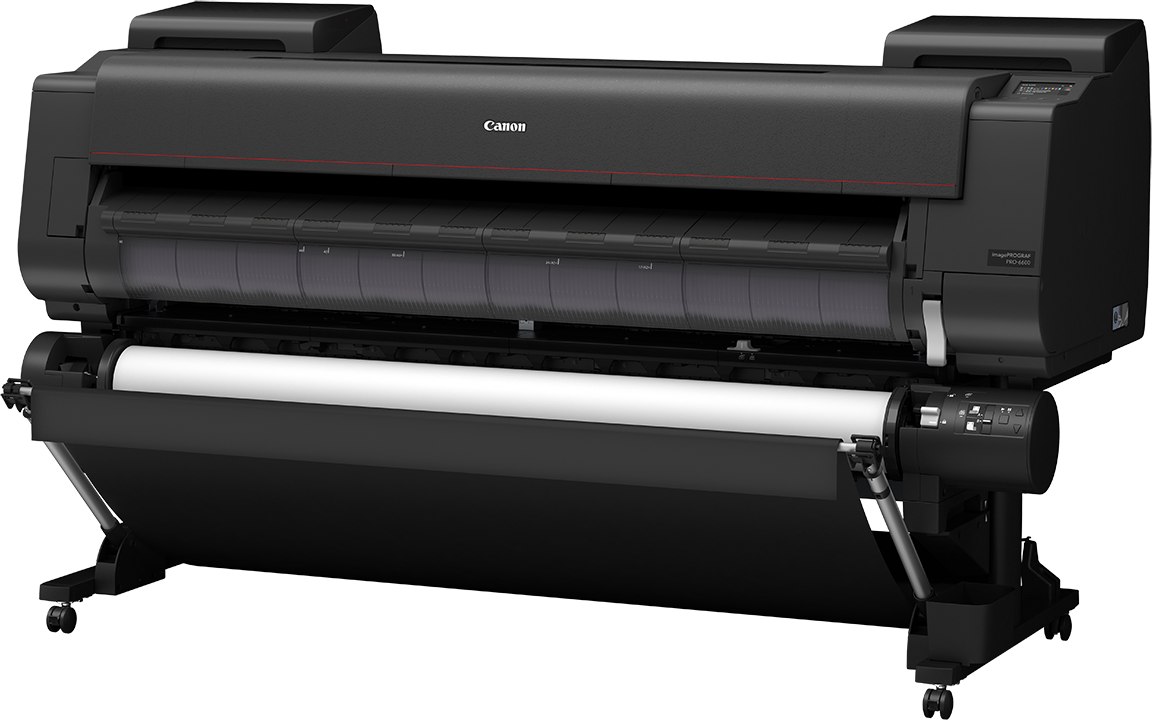

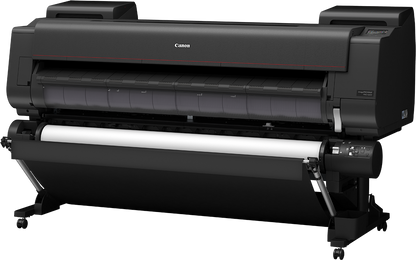

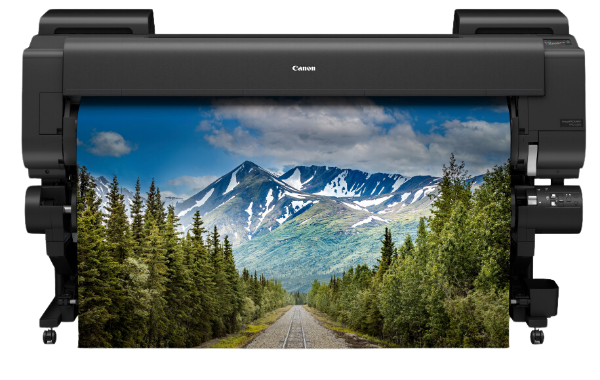

The Canon imagePROGRAF 60" PRO-6600 professional large-format printer offers an 11-color plus Chroma Optimizer Ink System that will bring your photos and reproductions to life. This Large Format Photo and Fine Art Printer contains a newly developed ink set* which offers high-scratch resistance and improved lightfastness** designed to provide exquisite prints and impeccable details. A multi-function roll unit, intelligent media handling technology, color calibration, sub-ink tank system, translucent media & ink tank covers, and internal light preview systems are just a few of the technologies built into this printer. Registered as EPEAT Gold—first in the imagePROGRAF PRO Series— and as ENERGY STAR certified, this series is replacing EPS packaging materials with cardboard packaging. Available for this printer there is a host of creative and workflow software solutions, such as Professional Print & Layout, PosterArtist (Online and Lite versions), Free Layout Plus, Direct Print Plus, Accounting Manager, and more, to help with your everyday business needs!
Setting the standard for prestige image quality.
The new imagePROGRAF PRO series transcends ordinary printing; it’s a tool that transforms photographic skills and client demands into tangible art with exceptional clarity and precision. For any photographer or print service provider committed to their craft, it's not just a printer – it's a source of confidence, empowering you to realize the artistic potential in each print. Available in 24", 44" and 60".
Key Features:
- Reformulated LUCIA PRO II Ink ***
- High light resistance for long-term preservation of inks
- Improved black density with a wider dark-color gamut range
- High scratch resistance
-
Color Calibration

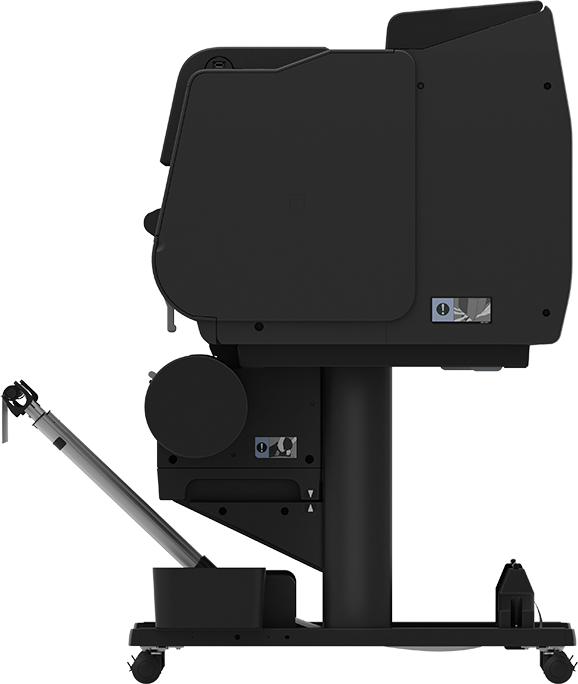

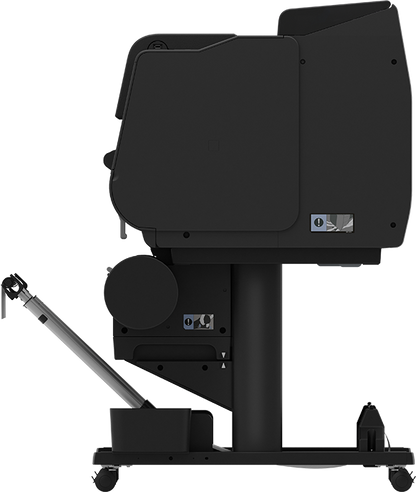

Printer Size & Dimensions (with stand and basket open)
- Width (printer): 78.7 inches
- Depth (printer): 38.7 inches
- Height (printer): 46 inches
- Weight (printer): 377 lbs
Package Size & Dimensions (main unit with pallet)
- Width: 87.7 inches
- Depth: 36.0 inches
- Height: 40.4 inches
- Weight: 489.4 lbs
Package Size & Dimensions (multifunction roll unit, physically strapped to printer)
- Width: 84.0 inches
- Depth: 22.1 inches
- Height: 18.1 inches
- Weight: 92.6 lbs
Premium image quality
Deliver print perfection with exceptional color gradation for striking photography and fine art pieces with new LUCIA PRO II inks. With Chroma Optimiser, it enhances dark density and produces deeper blacks with precision.
Seamless workflows
Simplified workflows, streamlined media handling, auto media loading, dual rolls, and free-size borderless printing help you to maximize productivity while maintaining full control of the output and quality of your work.
Increased durability
New inks substantially improve scratch resistance. Very light-resistant pigments dramatically increase color fastness, with prints that can be preserved for 200 years.
Environmental considerations
We reduced packaging waste by 89.5%. It also achieves a 'Gold' rating on the U.S. EPEAT Registry for eco-friendliness, thanks to its low power consumption.
Technical Specifications
| Print Head | PF-10 |
| Number of Nozzles | 1,536 nozzles x 12 colors: 18,432 nozzles |
| Droplet Size | 4 Pictoliters per Color |
| Ink Type | Pigment: BK, MBK, C, M, Y, PC, PM, GY, PGY, R, B, +CO |
| Ink Tank |
Shipped with printer: 330 ML of each color Replacement: 160 ml PFI-3100 (BK, C, M, Y, PC, PM, GY, PGY, R, B, CO), 160 ml PFI-2100 (MBK), 330 ml PFI-3300 (BK, C, M, Y, PC, PM, GY, PGY, R, B, CO), 330 ml PFI-2300 (MBK), 700 ml PFI-3700 (BK, C, M, Y, PC, PM, GY, PGY, R, B, CO), 700 ml PFI-2700 (MBK) |
| Printer RAM |
Standard Memory: 3 GB Hard Disk: 500 GB |
| Media Feed | Front-Loading Roll Feed: Two* Rolls, Front Output |
| Media Width |
Roll Feed: 6” - 60” (152.4 - 1,524 mm) Cut Sheet: 6” - 60” (152.4 - 1,524 mm) |
| Media Cutter | Automatic horizontal cutting (Rotary cutter): standard |
| Media Thickness | 0.002” - 0.03” (0.07 mm - 0.8 mm) |
| Media Core Sizes | 2” Core Standard. 2”/3” Core Roll Holder Set (RH2-66) |
| Maximum Roll Outer Diameter | 6.7” or less (170 mm or less) |
| Media Output | Catch Basket |
| Printing Software Utilities | Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Canon Print Service, Professional Print & Layout, Quick Utility Toolbox |
| Operating System | Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), MacOS v10.15.7- MacOS 13 |
| Print Language | Printer: SGRaster (Swift Graphic Raster), PDF, JPEG |
| Interface |
Standard (Built-in): USB 2.0 Hi-Speed, 10/100/1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g/n) ■ |
| Power Supply | AC 100 – 240V (50 – 60 Hz) |
| Power Consumption |
Max: Approx 85W Standby: Approx. 1.7W Power Off: Approx 0.1W |
| Certifications |
Environmental Certifications ENERGY STAR® (Worldwide), EPEAT Gold |
| Operational Environment |
Temperature: 59 – 86 °F (15 – 30 °C) Relative Humidity: 10 – 80% (Non Condensation) |
| Printer Dimensions (W x D x H) and Weight | (with stand and basket open) 78.7” x 38.7” x 46”, 377 lbs |
| Package Dimensions (W x D x H) and Weight |
(main unit with pallet) 87.7” x 36.0” x 40.4”, 489.4 lbs Multifunction Roll Unit (physically strapped to printer) 84.0” x 22.1” x 18.1”, 92.6 lb |
| Options |
• 2”/3” Roll Holder Set (RH2-66) User Replaceable Items • Ink Tank: PFI-3100 (160 ml)/PFI-2100 MBK (160 ml), PFI-3300 (330 ml)/ PFI-2300 MBK (330 ml), PFI-3700 (700 ml)/PFI-2700 MBK(700 ml) • Print Head (PF-10) • Maintenance Cartridge (MC-30) • Cutter Blade (CT-07) |
