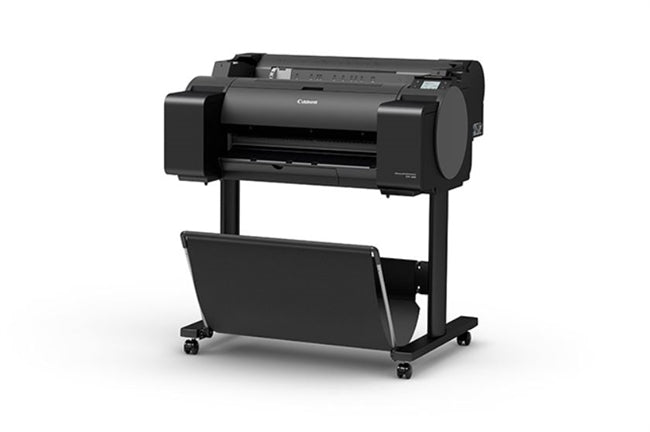

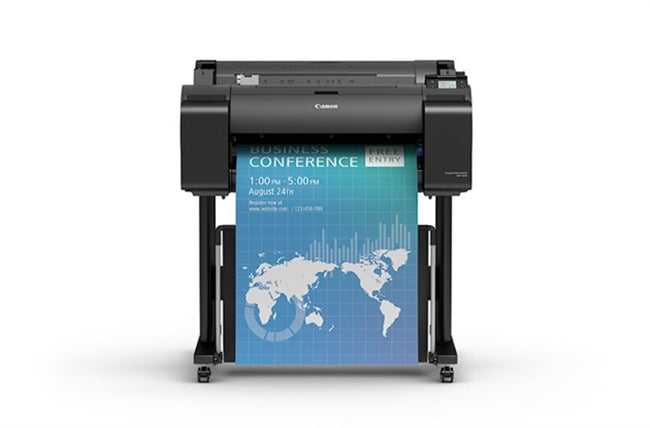

Canon imagePROGRAF GP-200 24" Printer
Printer Type
5-Color plus Fluorescent Pink Ink 24-inch Printer
Number of Nozzles
Total: 15,360
C, M, Y, BK, MBK, FP: 2,560 nozzles each
C, M, Y, BK, MBK, FP: 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit), 2019
Macintosh OS X v10.10.5-v10.12x or later
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit), 2019
Macintosh OS X v10.10.5-v10.12x or later
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
Ink Droplet Size
5 picoliter
Ink Capacity
130 ml or 300 ml per color
Ink Types
Pigment Ink Plus Fluorescent Pink Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow and Fluorescent Pink Ink
Buffer Ram
2 GB (Physical)
Media Width
Cut Sheet - 8”- 24”
Roll Feed - 8” - 24”
Roll Feed - 8” - 24”
Media Thickness
0.07-0.8mm
Maximum Roll Print Length
Roll Feed - 59' (18 meters)
Maximum Media Roll Diameter
5.9”
Borderless Printing Width
8”, 10, 12”, 14, 16” 17, 20”, 24”
B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm)
B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm)
Paper Feed Method
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top Loading, Front Output
Cut Sheet: Top Loading, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, JPEG
Noise Level Approx
Operation: 49 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 6.7 Bels
Standby: 35 dB (A) or less
Acoustic Power: 6.7 Bels
Physical Dimensions
42” (H) x 39” (W) x 35” (D) (Basket Open)
Weight
approx. 110 lbs (roll holder included, no inks, no print heads)
Power Source
AC100-240V (50-60Hz)
Power Consumption
Maximum: 71 W or less
Standby 2.0 W or less
Power Off: 0.3 W or less (Compliant with Executive Order)
Standby 2.0 W or less
Power Off: 0.3 W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
- Print Head (PF-07)
- Maintenance Cartridge (MC-31)
- Ink Tanks (PFI-120/PFI-320)
- Cutter Blade (CT-08)
Software Included
Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, PosterArtist Lite (PC only), PosterArtist (Available for purchase, PC only), Printer Driver Extra Kit (Free Layout and Advanced Preview), Direct Print Plus (PC only), Free Layout Plus (PC only)
