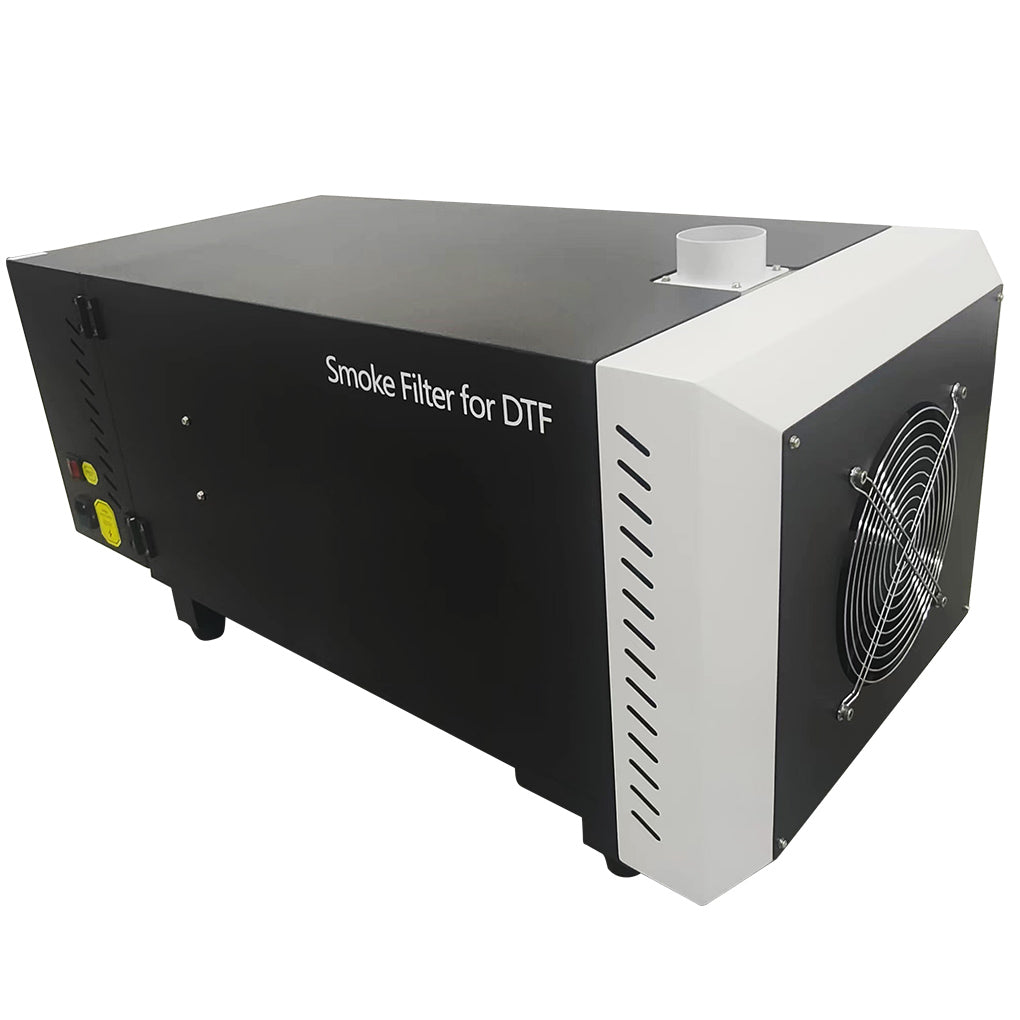

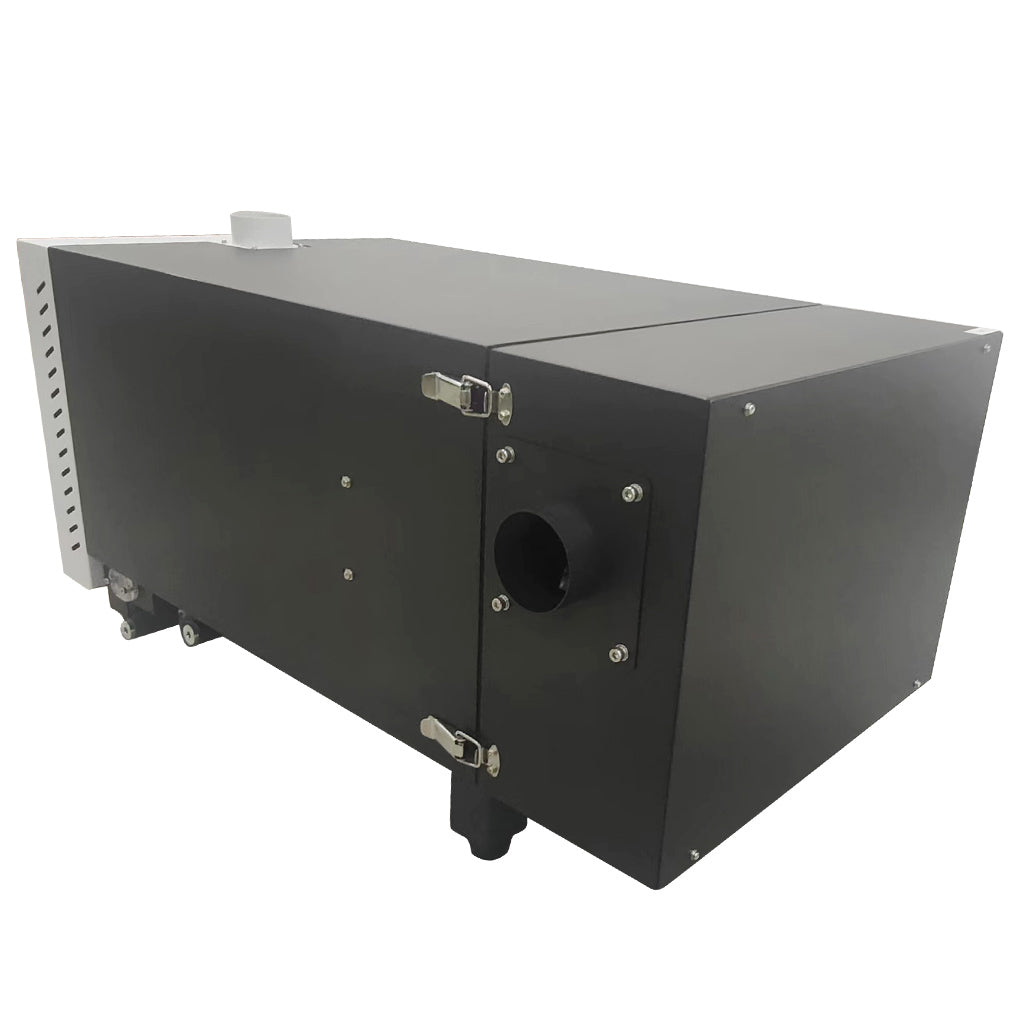

CALCA Universal Filterless Electrolytic Fume Extractor, 330m³/h for DTF Powder Shakers and Sublimation Heater

Applications:

CALCA Electrolytic smoke lampblack filter / electrolyte fume filter is designed to effectively discharge and eliminate smoke and oil in the drying process from the DTF powder applicator / powder shaker, sublimation printer and heater. This will improve the quality of processed dtf transfers, and provide a clean and smoke-free working environment.

Features:

• Filter free

• Brushless motor

• Electrolytic filtration technology: No consumables, no extra cost, worry-free after sales.

• No change in suction power for several years of continuous use.

Specifications:

• Rated Voltage: AC /220V± 5%

• Rated Current: 1.5A

• Rated Power: 325W

• Max air amount: 330m³/h

• Negative Pressure: 350pa

• Internal Air Inlet and Outlet Diameter: Φ59mm

• Filter Effect: Up to 0.5μm99.9%

• Noise: ≤ 64db

• Machine Size: 32.7in x 17.5in x 16.5in (830mm x 445mm x 420mm)

• Machine Weight: 70.5lbs (32kg)

• Package Size: 35in x 18.5in x 17.3in (890mm x 470mm x 440mm)

• Gross Weight: 72.8lbs (33kg)

Package Includes:

• 1 x Fume Extractor

• 1 x Extraction pipe

• 1 x Power cord
