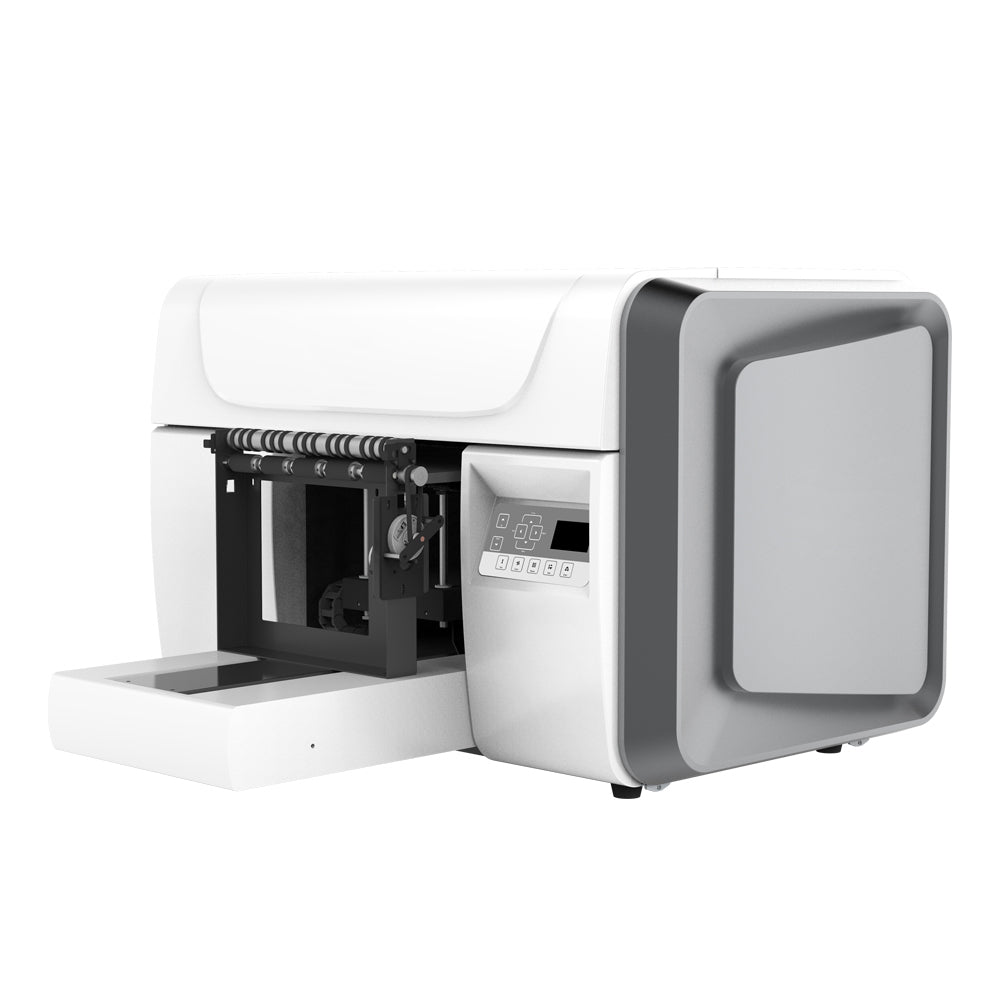

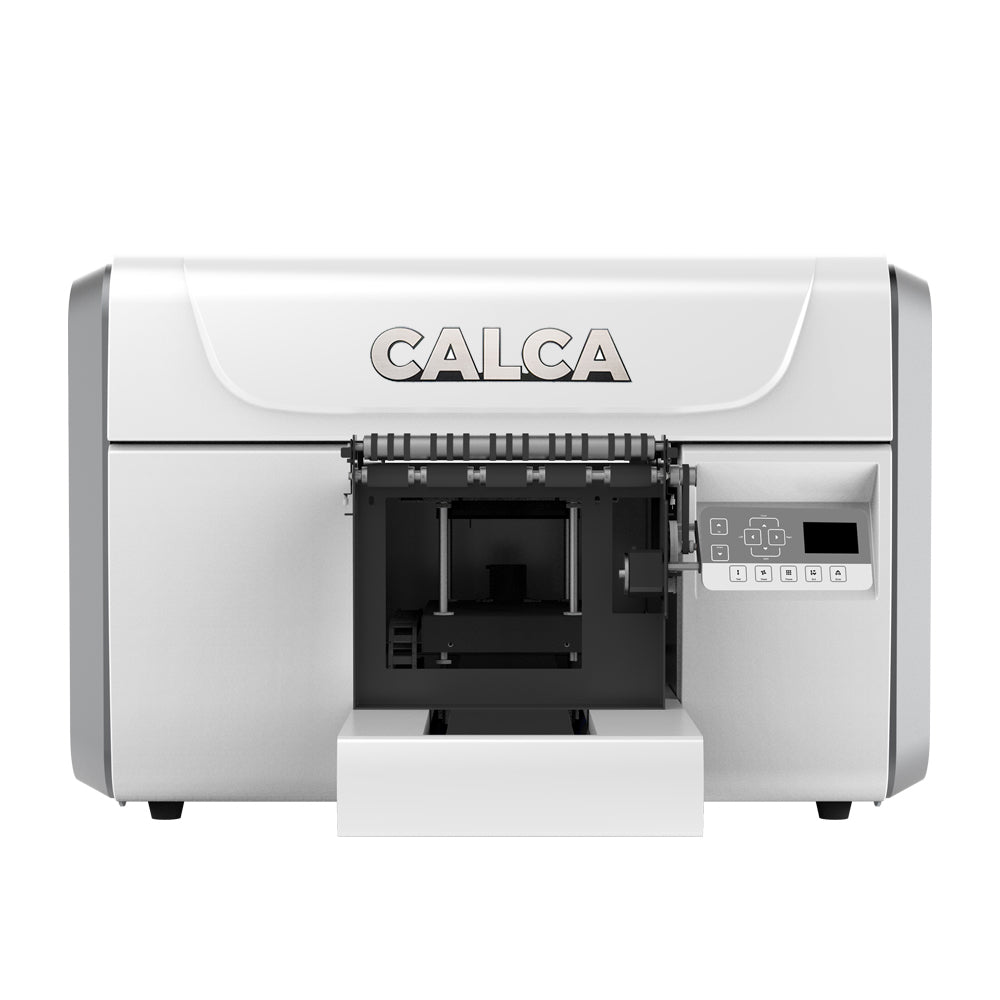

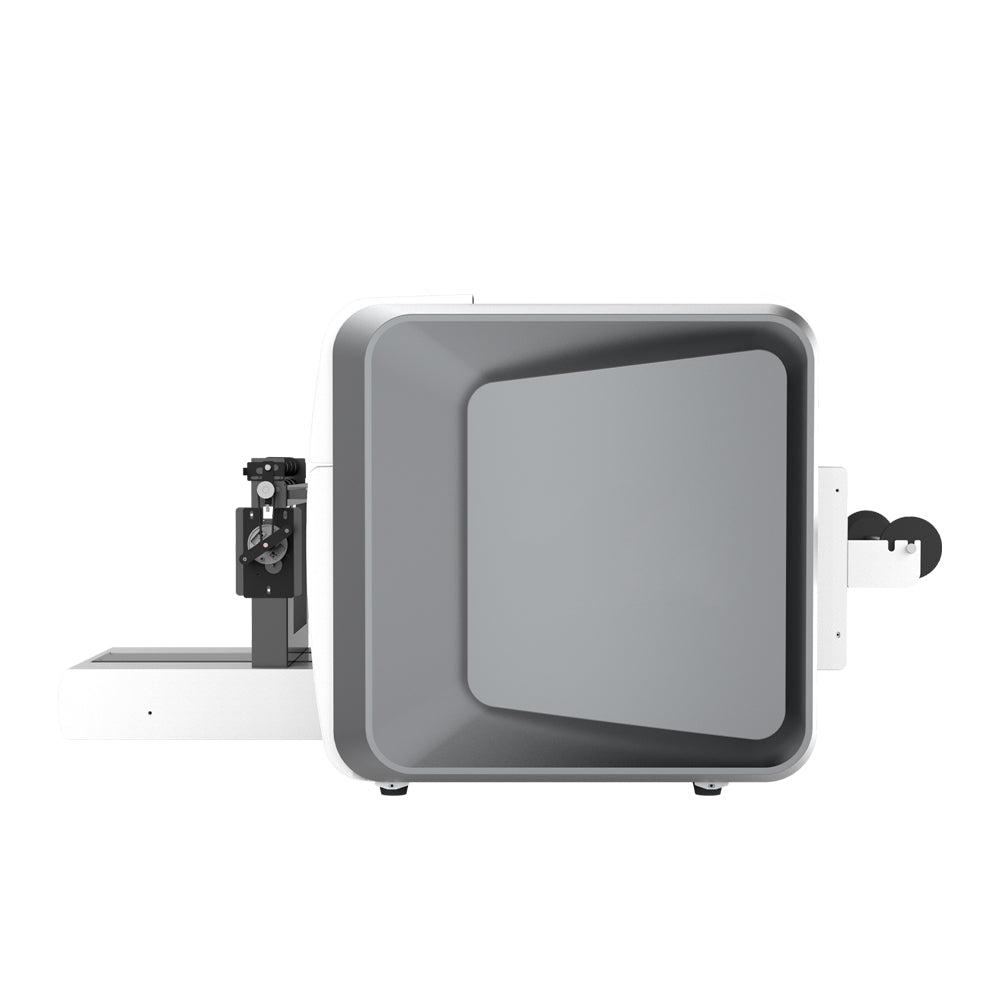

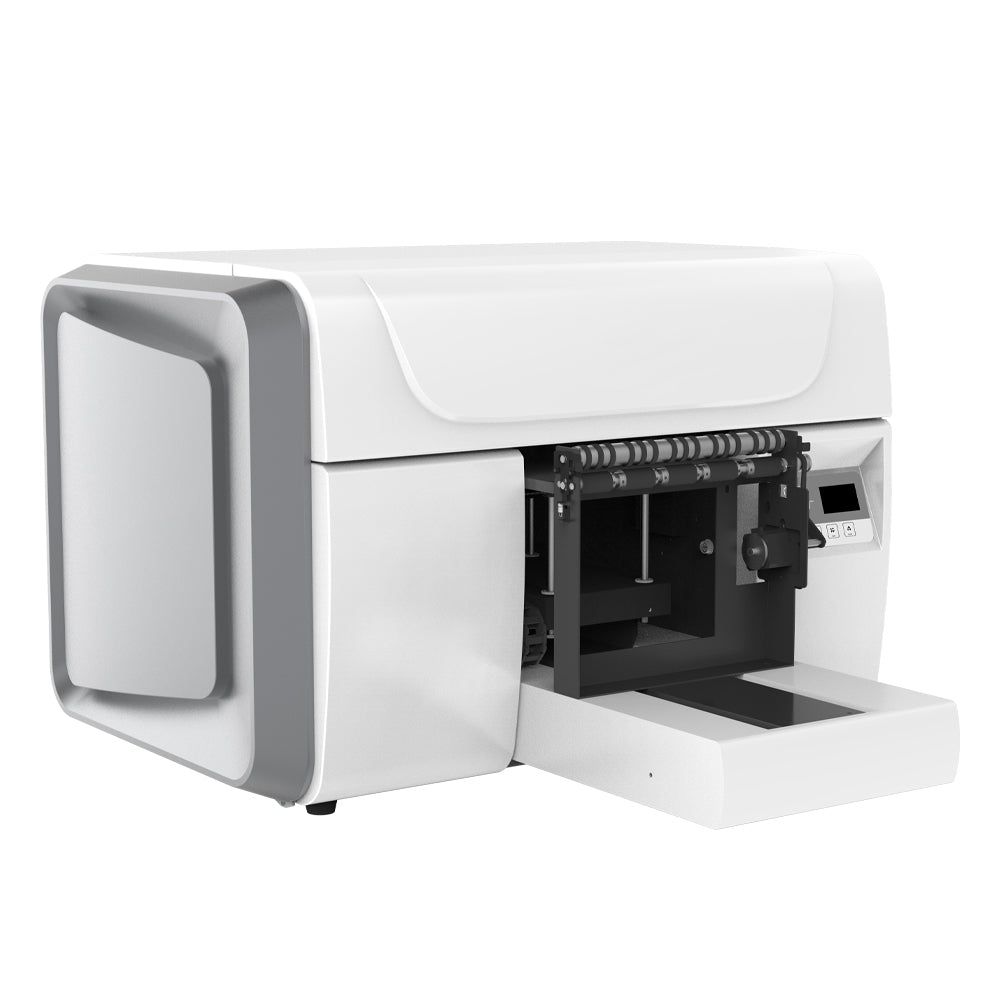

CALCA A3 11.7in x 16.5in LED UV/UVDTF Printer For Flat and Roll Media With Epson I3200-S1HD Printhead

Features:

• The resolution can reach 1200 dpi, and it can produce up to 8-color output.

• Compact, less foot print.

• Humanized design operation panel, convenient and fast operation.

• Various functions, support flat and roll printing.

• Simultaneous output of white, color and varnish.

• High precision lifting vacuum table - the flatness can be controlled within 0.1mm.

• Intelligent ink supply system - with ink shortage alarm function. Fixture (optional)


Roll fixture (Standard): Suitable for blanks within 11lbs (5kg) weight, from 30mm (1.1811in) to 250mm (9.8425in) width, inner core diameter of 3in.
Cylindrical fixture (Optional): Suitable for blanks within 25mm (0.9842in) to 80mm (3.1496in) diameter and 20mm(0.7874in) to 210mm (8.2677in) length.

Technical Specifications:

• Print size: 297 x 420mm(11.69in x 16.53in)

• Print Head: I3200-S1HD x 1pc

• Nozzle spray force range: 2-3mm(0.0787in-0.0118in)

• Number of nozzle: 3200 (Individual)

• Distance between nozzles: 1/300inch

• Numbers of nozzle rows: 8

• Maximum number of supported ink colors: 8

• Effective print width: 300npi/1 list, 600npi/2 list, 1200npi/4 list

• Droplet ejection performance(Droplet volume and ejection frequency):

• 2 levels of grayscale 5 pl (43.2KHz)

• 3 levels of grayscale 6, 12.5 pl (21.6KHz)

• 4 levels of grayscale 3.8, 6.2, 9.3 pl (21.6KHz)

• Print height: 0-85mm(0-3.34in)

• Ink type: Environmental UV curing ink

• Print version: White and color and varnish print as same time

• Print mode: CMYK+WWVV/CMYK+lcLmWW/CMYK+LcLmLkLLk/CMYK+CMYK

• RIP Software: Future Rip

• Print speed: 0.28-3sqm/h

• Highest print solution: 720 x 1200dpi

• Connection method: Network cable

• Graphic format: Tiff, Jpg, Eps, Pdf, Png

• Printer dimension(L x W x H): 100 x 902 x 592cm (39.37 x 35.51 x 23.31in)

• Net Weight: 60kg (132.28lbs)

• Packing size(L x W x H):112 x 102 x 78cm (44.09 x 40.16 x 30.71in)

• Gross Weight: 80kg (176.37lbs)

• Power: AC220 / AC110V, 50-60HZ, 1 phase; 140W, 1.3A(110V) / 0.6A(220V)

• Working environment:Temperature:20℃-28℃(68℉-82.4℉); humidity: 35%-65%


Package Includes:

• UV printer x 1

• Future Rip x 1

• Power cable x 1

• Network cable x 1

• Roll fixture
