51" x 98"1325 Ad and Woodworking CNC Router Machine, with 3KW Spindle

51" x 98"1325 Ad and Woodworking CNC Router Machine, with 3KW Spindle

  • $11,999.00

US Stock, 51" x 98" 1325 Ad and Woodworking cnc router Machine, with 3KW (4HP) Spindle

Cnc router texas


Strong and sturdy, for a durable reliable performance. Easy operation at a reasonable price. Multi-functions and wide range of application make it possible to process any wooden products, advertising sign plates, acrylic cutting, etc. Any metal or non-metal material can be processed, for example: copper, aluminum, plastic plate, wood, etc.

Product Highlights:
• Uses an advanced DSP numerical controlling system, more ergonomically designed for convenient operation with the handle, large screen displays, and simple maintenance.
• Optimization of mechanical and electrical design to ensure good performance.
• Furnished with high inverter-driven spindle motor cooled by water.
• Unique intelligent calculation fully develops the potential of the engine and leads to high processing speed, the synchronization of curves and straight lines, smoother curves. Traveling high speed can reach up to 10m (394")/min.
• Unique and dynamic renewal of the system enables the customer (according to different processing requirements) to change the controlling ability of the system, and effectively improves the processing efficiency (start operation with the instructions of the technician from factory or agent)
• 32M saving capacity can store more than 3 processing files simultaneously, and read one at random.
• Connected with the machine via USB interface to enable data transmission in a second.
• More compatible: Ucancam V10, Type3, Router 8, and Type3, etc.
• It is able to keep engraving even when the electricity is cut off or the tool is broken.

Remark: “Vaccum Table+Vacuum Pump+Dust Collector” for your option, if you want this function, please contact our sale staff.

Industrial steel pipe frame, with stable moving, low noise and high precision

NC Studio Nk-105G3 hand held CNC

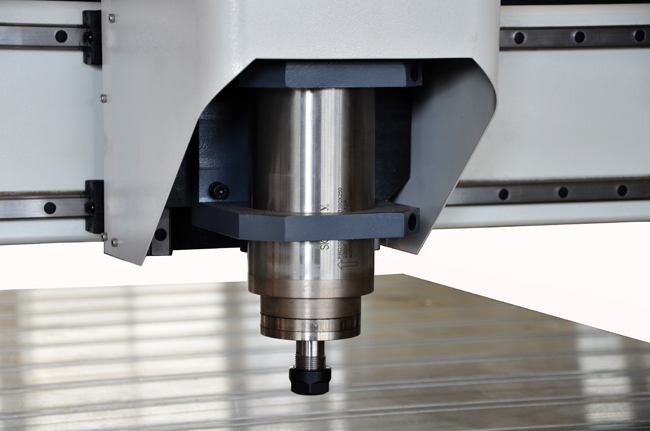

Water Cooling Spindle
Power: 3KW/4HP
Connection type: Collet ER25
Rated voltage: 220V, 50Hz
Rated speed: 24000 rpm
Max speed: 24000rpm
Rotation: Right
Origin: China
Stepper Motor&Pulley drive for X,Y axis
Gear & Rack for X,Y axis
Linear Square Guide: 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools.
