4 Color Screen Printing Full Package Rotary Printer & Flash Dryer

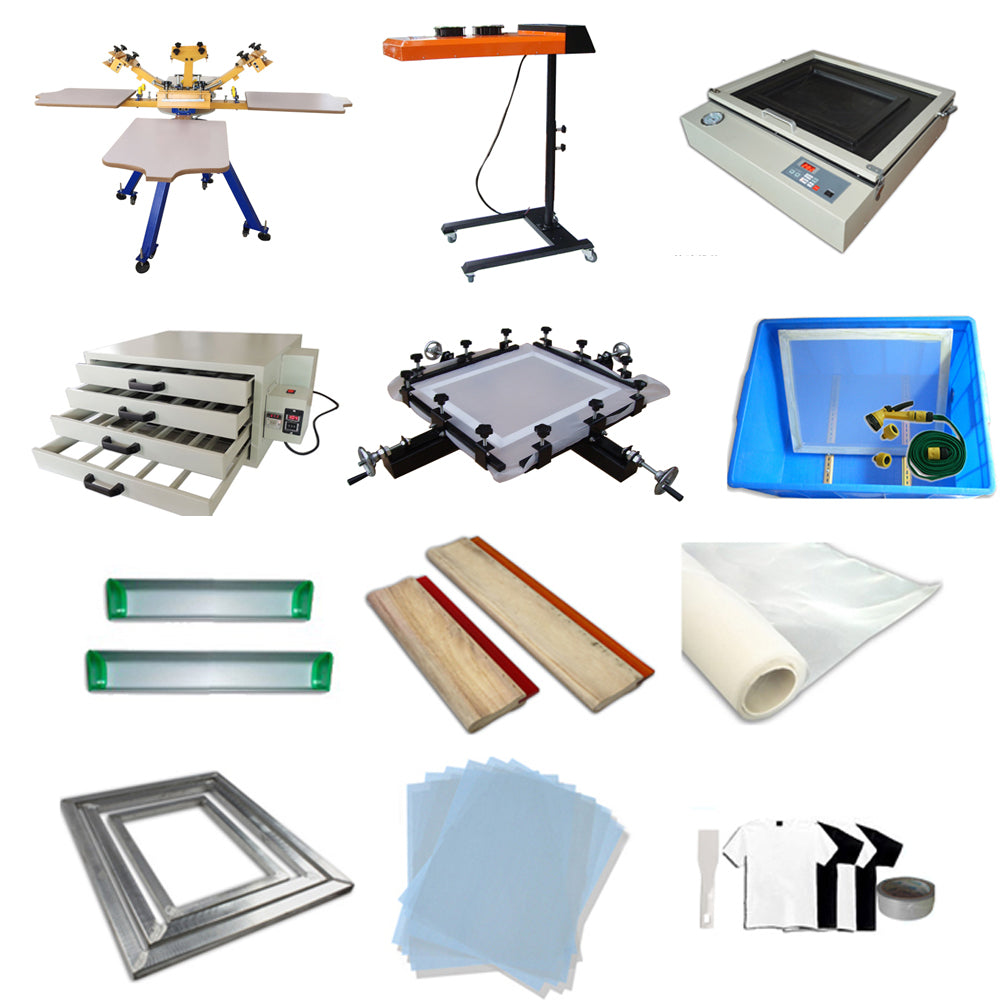

Full S4-4 Screen Printing Package Kit

Screen printing is arguably most versatile in printing, almost everything can be used as substrate. Our company provide this 4 color 4 station screen printing package with all stuff needed by a small screen printing workshop. we show buyers skilled operation and application by words and video, achieving integration of technique ,equipment, material and service.

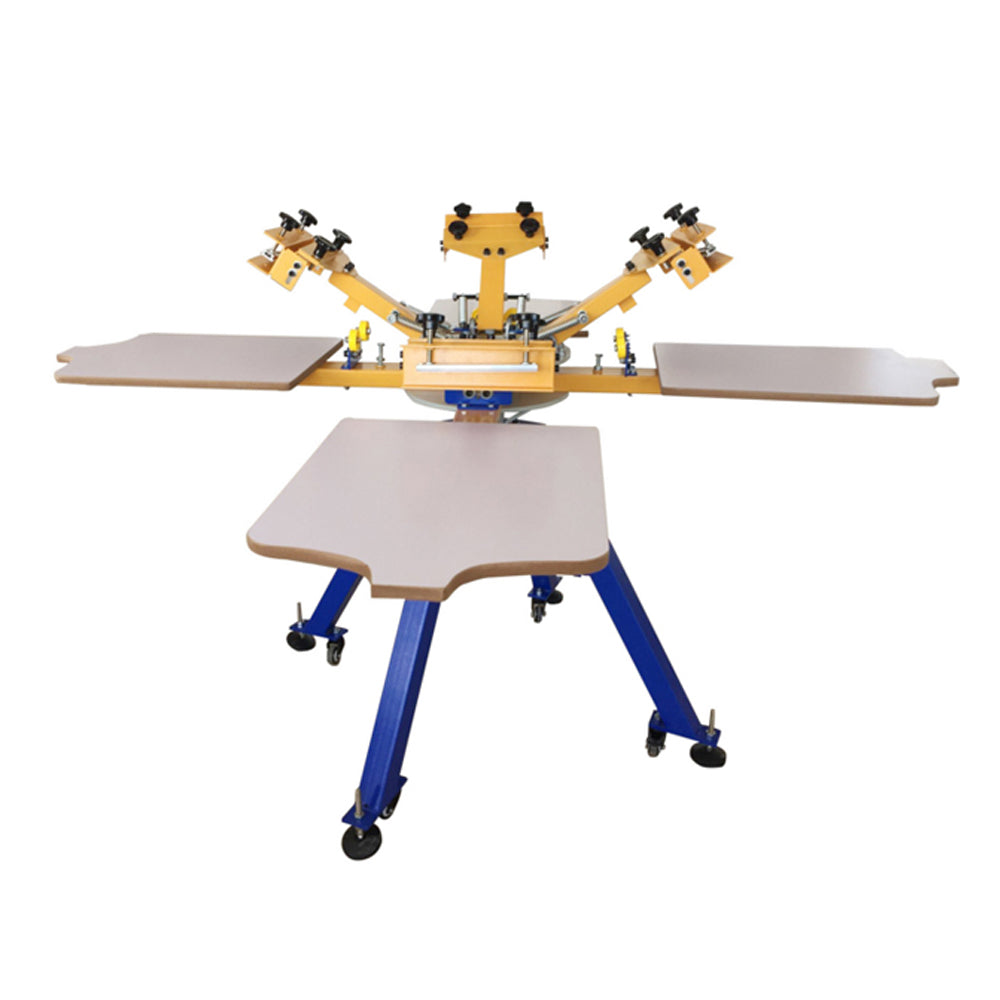

4 Color 4 Station Screen Printing Machine

Specifications:

Pallet size: 450 x 600mm
Packing: 1 strong carton box (86 x 63 x 25cm)
1 strong plywood box(51 x 47 x 53cm)
Gross Weight: 120KG

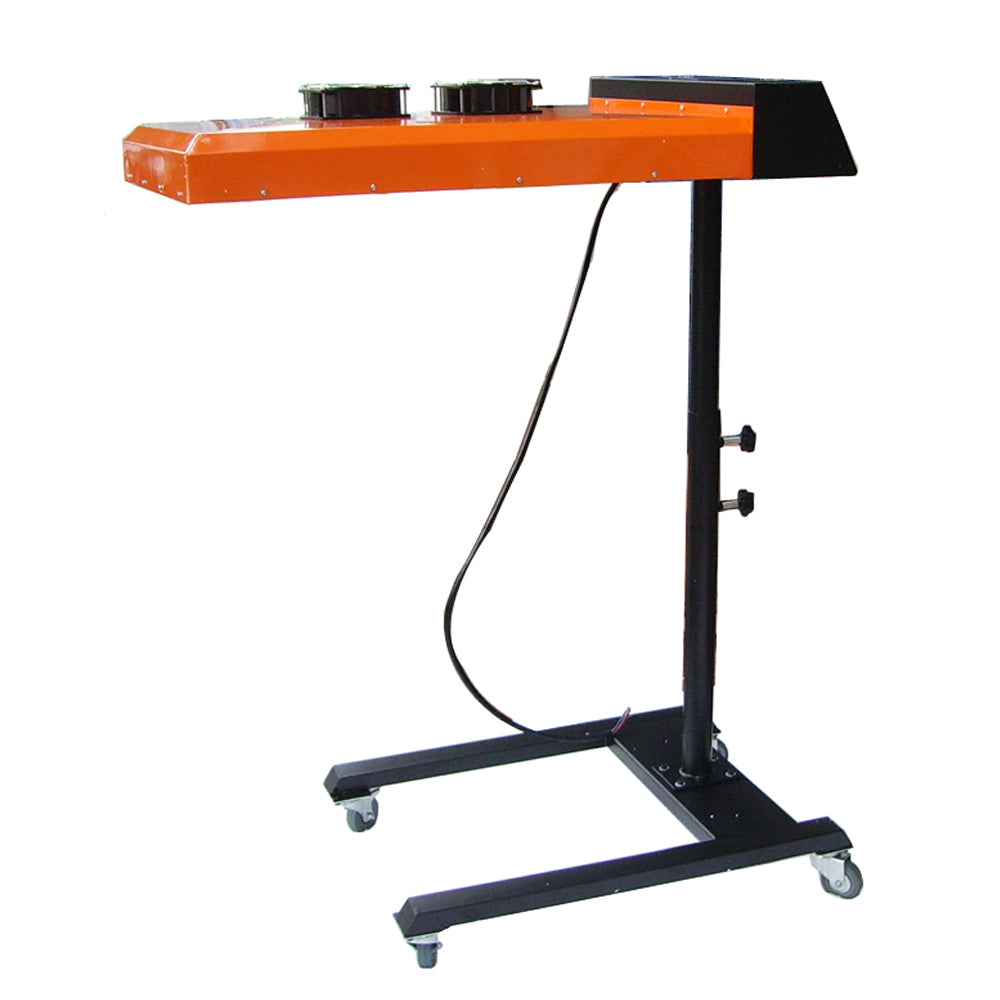

3600W 20" x 24" Double Fan Temperature Controller Flash Dryer (220V)

Parameters:
1. Heating Area: 20" x 24"
2. Input: 220v/50Hz
3. Power: 3600 Watts
4. Highest Heating Temperature: 200℃
5. Gross Weight: 69 lbs(31kg)
6. Packing Size: 57 x 94 x 29cm

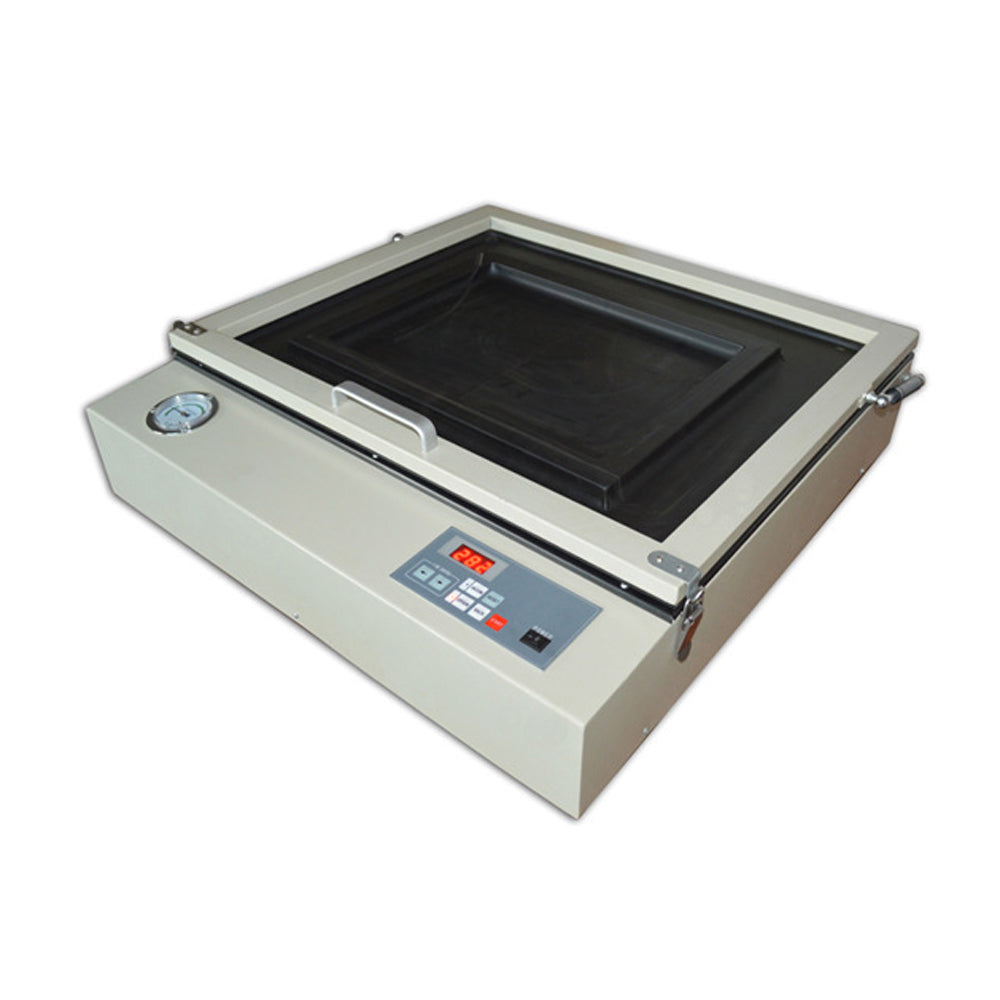

Tabletop Precise 20" x 24" Vacuum UV Exposure Unit

Feature:
Power: 220V,50HZ/110V,60HZ,250W
Max.working area: 500 x 600mm( 20" x 24")
Light source: UV light
Lamp power x amount: 20W x 8pcs
Digital display of exposure time setting
Package size: 84 x83 x 25 cm
Gross Weight: 42 KG

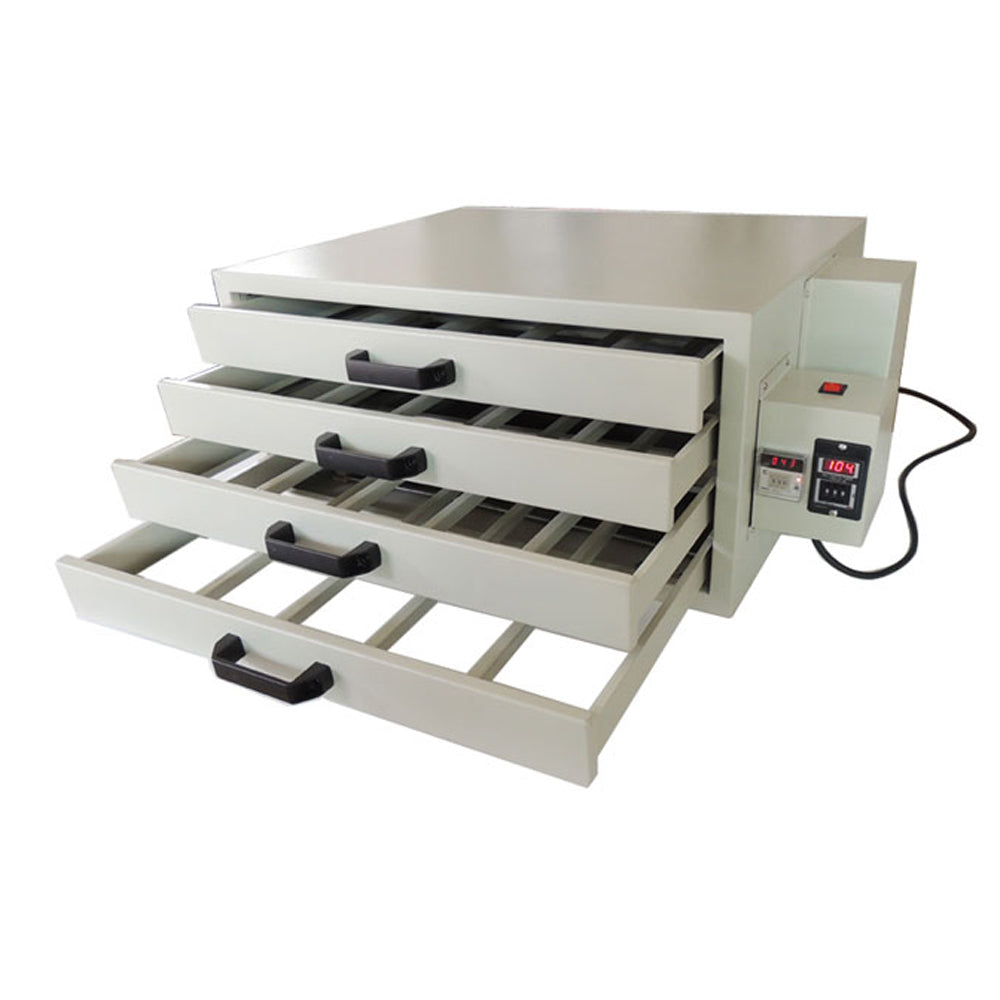

Screen Drying Cabinet

Specifications:
1. Maximum Screen Drying Area: 640×530×45mm
2. Power: 2000W
3. Max. amount of drying plate:4 pieces
4. Power voltage: 110V/60Hz or 220V/50Hz
5. Max temperature: 75degree
6. Net Weight: 45 kg
7. Gross Weight: 60 kg
8. Packing : 1 strong plywood box(89x54x62cm)

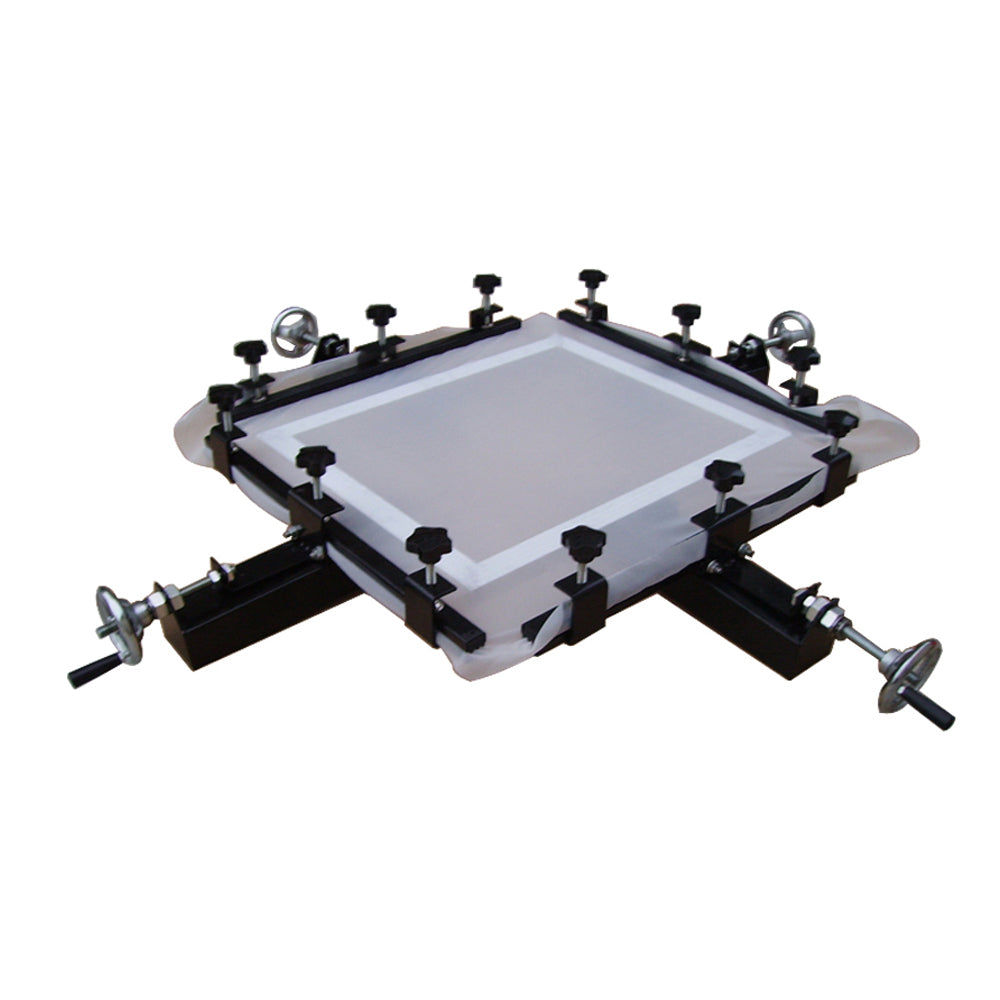

Hand Screen Stretcher

Parameter:
Max.area: 60 x 60 cm
Packing size: 67*53*21cm/31*29*8inch
Gross Weight: 19 KG /42 lb

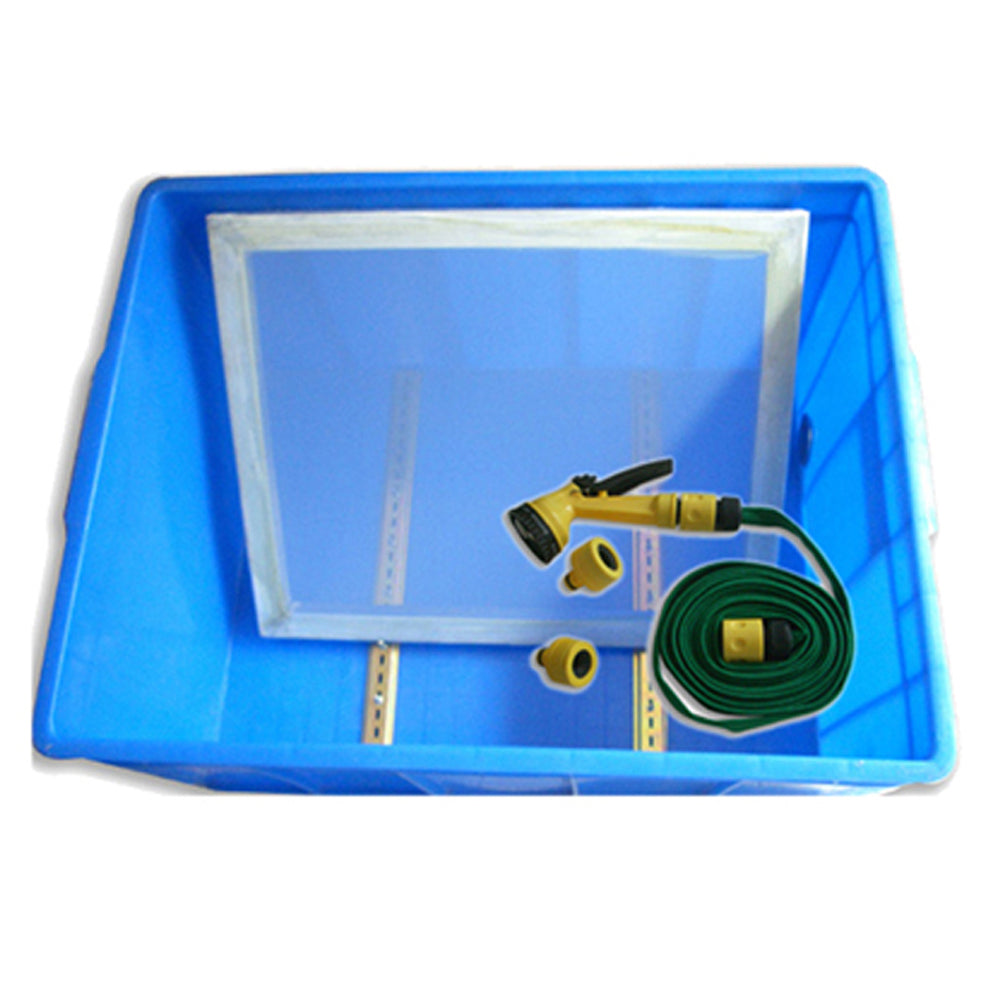

Washout Tank & Water Gun
NOTE: All the items related in the following are all well packaged into one box;

Washout is one of the most important processes during screen printing. Based on the customer and market, our company R&D this washout tank furnished with water tank, automatic pressurizing water spray gun and screen frame clapboard, economical, multifunctional, convenient to use.

Specifications:
Internal dimension: 26"x20"x15"(66x50x37cm)
Crate dimension: 31"x24"x17"(78x60x44cm)　
Net Weight: 15LB(7kg)
Gross Weight: 20LB(9kg)

Item Included:
1) 1 Four color Four station screen press
2) 1 Flash dryer
3) 1 UV exposure unit
4) 1 Screen drying cabinet
5) 1 Hand screen stretcher
6) 4 Colors printing materials kit which includes the following items:
01) 1 Washout tank
02) 1 9.5"Emulsion Scoop Coater
03) 1 14"Emulsion scoop coater
04) 20 sheets of A4 transparent Film
05) 20 sheets of A3 transparent Film
06) 1.39x3Yard 60#screen fabric
07) 1.39x3Yard 110#screen fabric
08) 1.39x3Yard 200#screen fabric
09) 4 20"x24" Aluminum screen frame
10) 4 16"x20" Aluminum screen frame
11) 4 13" (33cm) Squeegee
12) 4 18" (46cm) Squeegee
13) 4 1#Stainless Steel Spatulas
14) 1 Aluminum Frame Tape
15) 4 T-shirt (color random)

Package:
1. Packing size:
1#51 x 47 x 53cm
2#57 x 94 x 29cm
3#84 x83 x 25 cm
4#89x54x62cm
5#67x53x21cmcm
6#78x60x44cm
7#86 x 63 x 25cm
2. Gross weight: 295 kg
