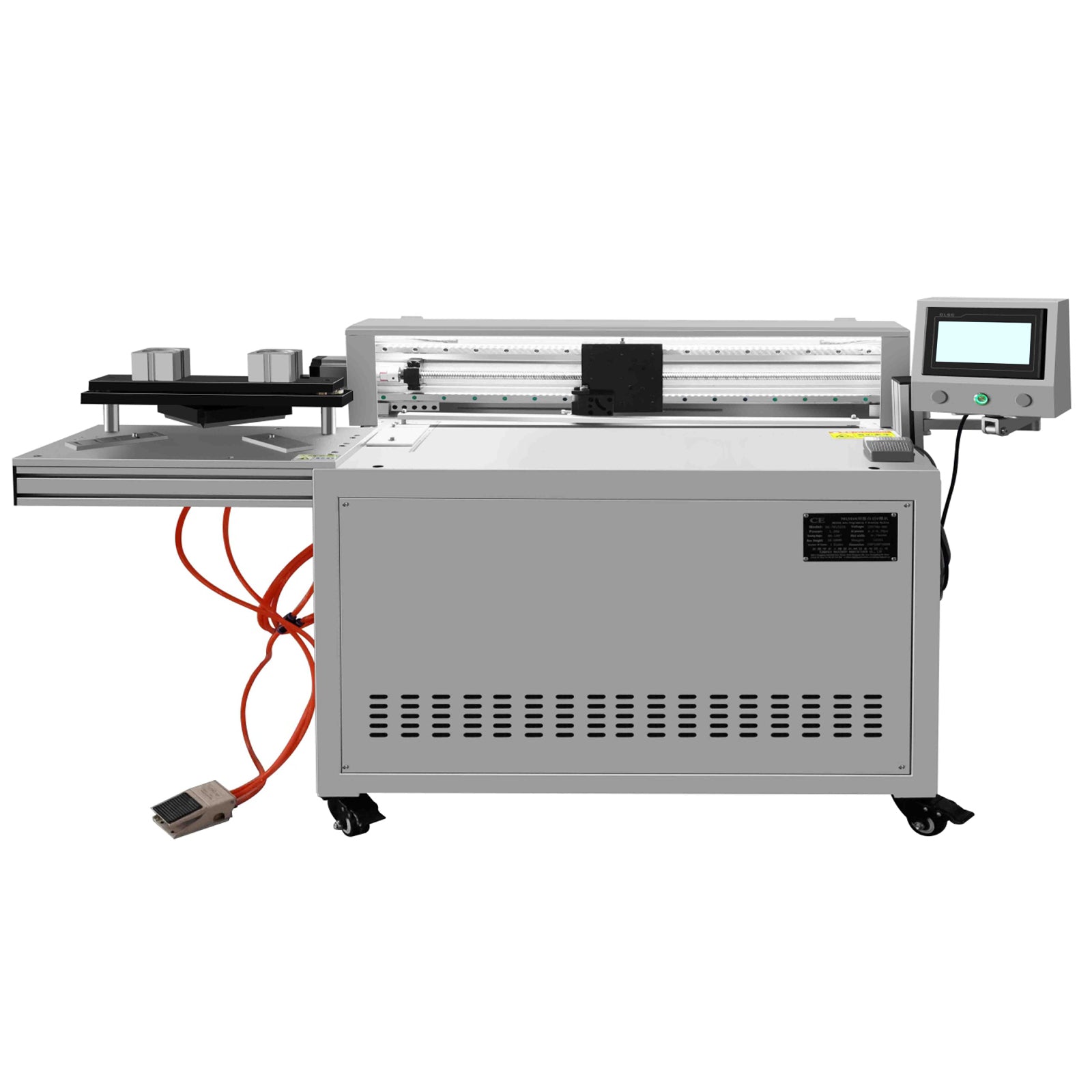

27.5/51.2in(700mm/1300mm) Auto Die-cutting and Auto Programming V slots Grooving Machine

Please choose
$3,898.70
$3,898.70
    27.5/51.2in(700mm/1300mm) Auto Die-cutting and Auto Programming V slots Grooving Machine
    27.5/51.2in(700mm/1300mm) Auto Die-cutting and Auto Programming V slots Grooving Machine

    Tech Specs

    Description

    Auto Programming V grooving machine is wide used for small batch production of rigid boxe and hardcover. lt adopts servo program-controlled system, which is able to adjust the distances of slots automatically and it can control the grooving length on different sizes of paper board, it is more convenient than the traditional grooving machine as this smart innovation. This machine is also equipped with die-cutting unit which can make the half cutting or full cutting to instead of the previous exorbitant costs of die cutting process.

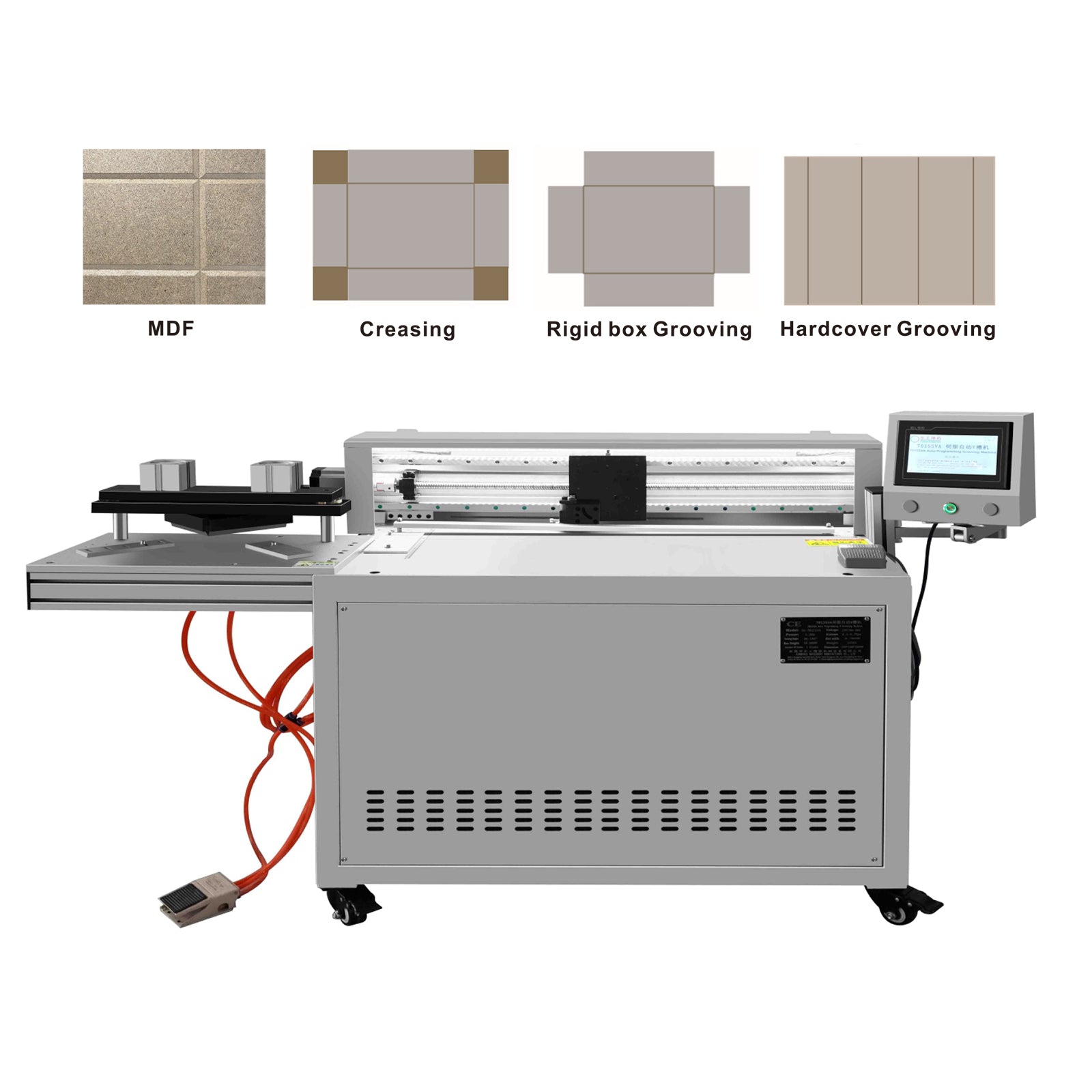

    This machine will be your most cost-effective production solution for gift boxes and hardcover, and it cangroove a variety of materials, such as MDF(Medium Density Fabric), corrugated paper, PVC and PET, etc.

    Specifications

    Model DG-7015SVA DG-1315SVA
    Grooving Angle 80-135° 80-135°
    Workable width 0-27.5in(0-700mm) 0-51.2in(0-1300mm)
    Slots Distance 0-15in(0-380mm) 0-15in(0-380mm)
    Thickness of Board 0-0.031in(0-8mm) 0-0.031in(0-8mm)
    Die cutter 0-5.9in(0-150mm) 0-5.9in(0-150mm)
    Speed 0.5s/Slot 0.5s/Slot
    Grooving Accuracy 0.002in(0.05mm) 0.002in(0.05mm)
    Weight 319lbs(145kg) 506lbs(230kg)
    Dimension 61*51*41in(1560*1300*1050mm) 65*51*41in(1650*1300*1050mm)
    Export Package 451lbs/61*29*43in(205kg / 1560*750*1100mm) 605lbs/69*29*43in(275kg / 1750*750*1100mm)
