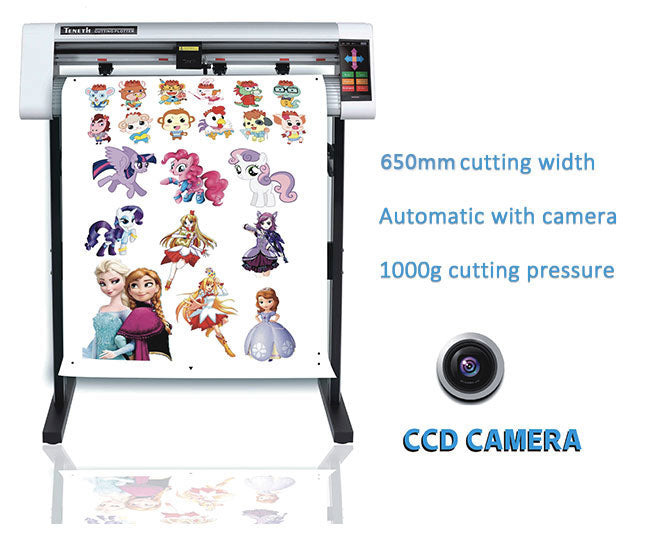

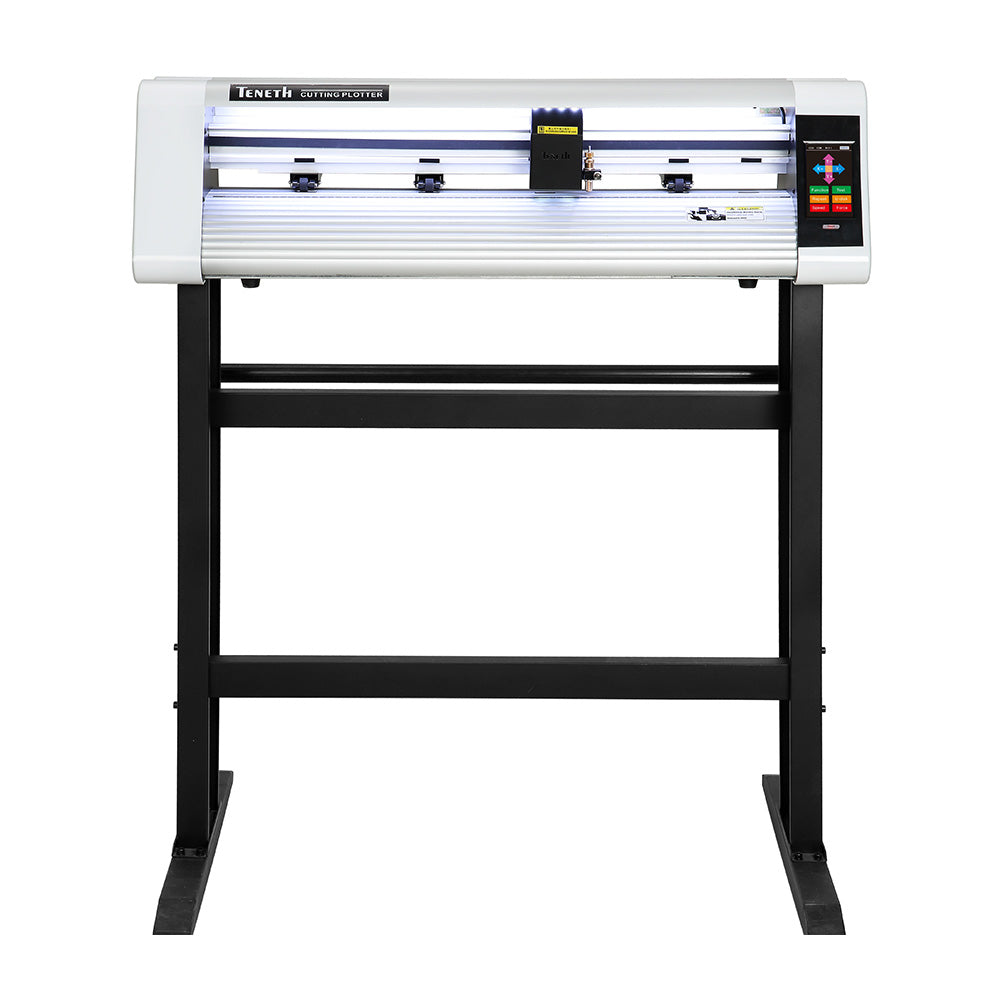

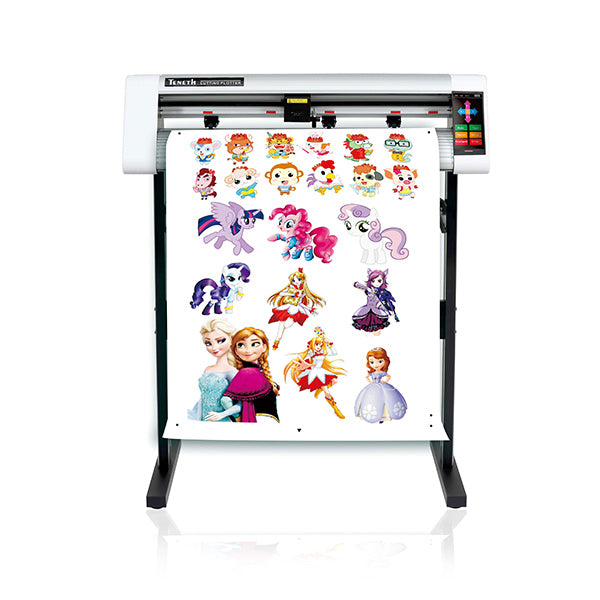

24" Vinyl Cutter Plotter with Full Touch Screen and CCD Camera/Automatic Contour Cut Cutting Plotter
- Regular price
-
$976.30 - Regular price
-
- Sale price
-
$976.30
Couldn't load pickup availability
Tech Specs
Features:
1. High sensitivity 4.3-inch large full touch screen for your easier operation.
2. Real CCD Camera scan, multi-marks, automatic contour cut, automatically correct paper deviation, identify more material and precise cutting.
3. Optional 1000g high force to cut strong 3M reflective films, Normal force to cut different materials. Such as sticker, car sticker, war sticker, reflective film and some others.
4. Work offline with USB flash.
Usage:
1. Cut artwork created by you, such as sticker, logos and labels made from vinyl or card.
2. Can be used to make stickers, transfers, POP signs and graphics, shop signs, window signs logos and graphics
3. Can use at home, school, shop and so on places
| Specification | |
| Media way | Floor Stand |
| Mainboard | 32-bit ARM7 CPU, 128Mb,high-speed cache memory |
| Driver | Step motor or Servo motor (optional) |
| Cutting software | SignMaster |
| Control panel | 4.3" Full Touch Screen |
| Max paper feed width | 750mm(29.5in) |
| Max cutting width | 650mm(25.6in) |
| Max cutting speed | 800 mm/s |
| Cutting force | 10-500g(digital adjustment) |
| Mechanical precision | 0.025 mm |
| Repeatable precision | <±0.025 mm |
| Type of plotter pen | All types diameter 11.4mm plotter pen |
| Plotter instruction | Compatible DM/PL, HP/GL |
| Interface | U disk / USB / serial port |
| Power supply | AC220V/110V, 50Hz |
| Power consumption | <80W |
| Knife | Imported blade |
| Operating environment | Temperature: 5-35℃,Relative humidity: 30%-70% |
