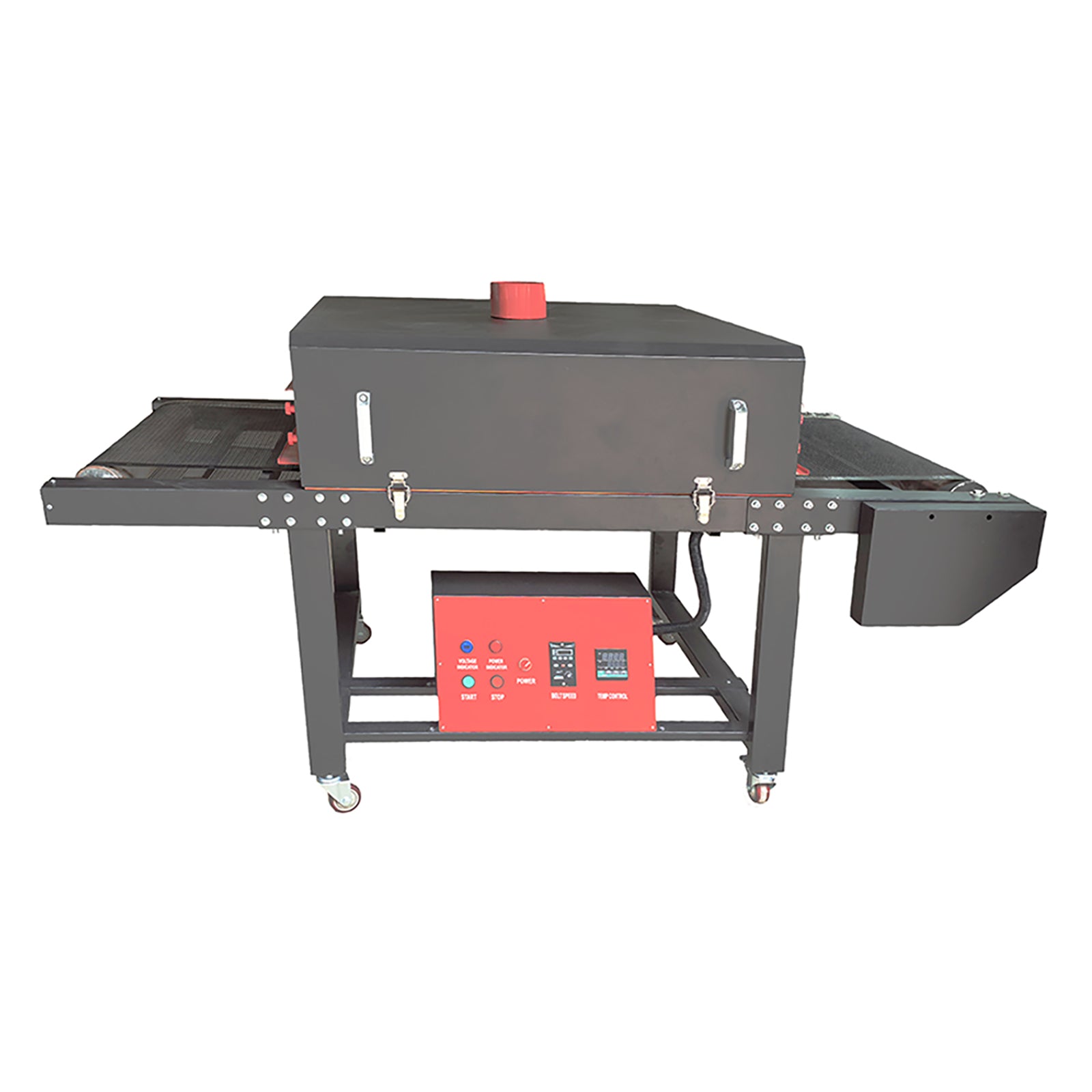

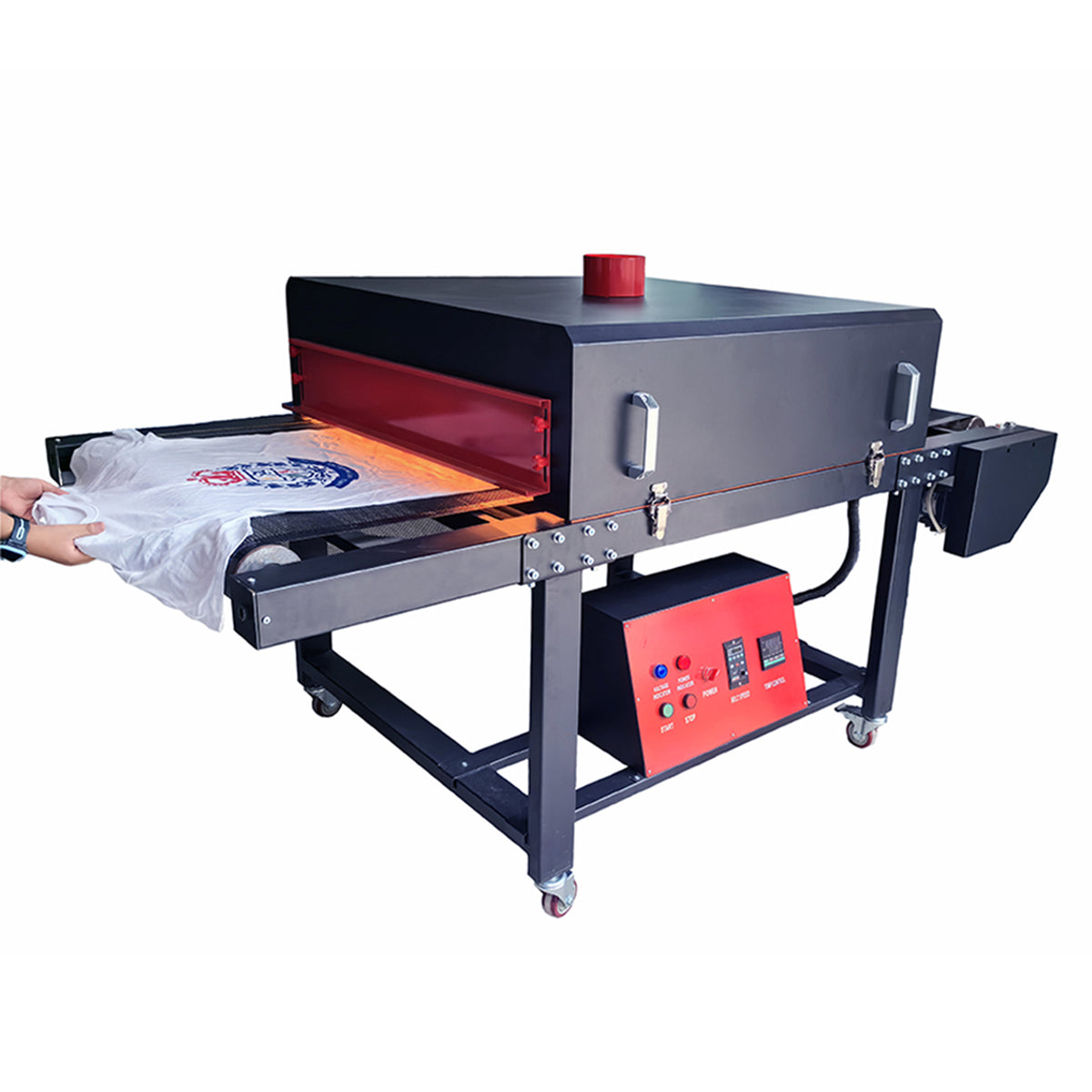

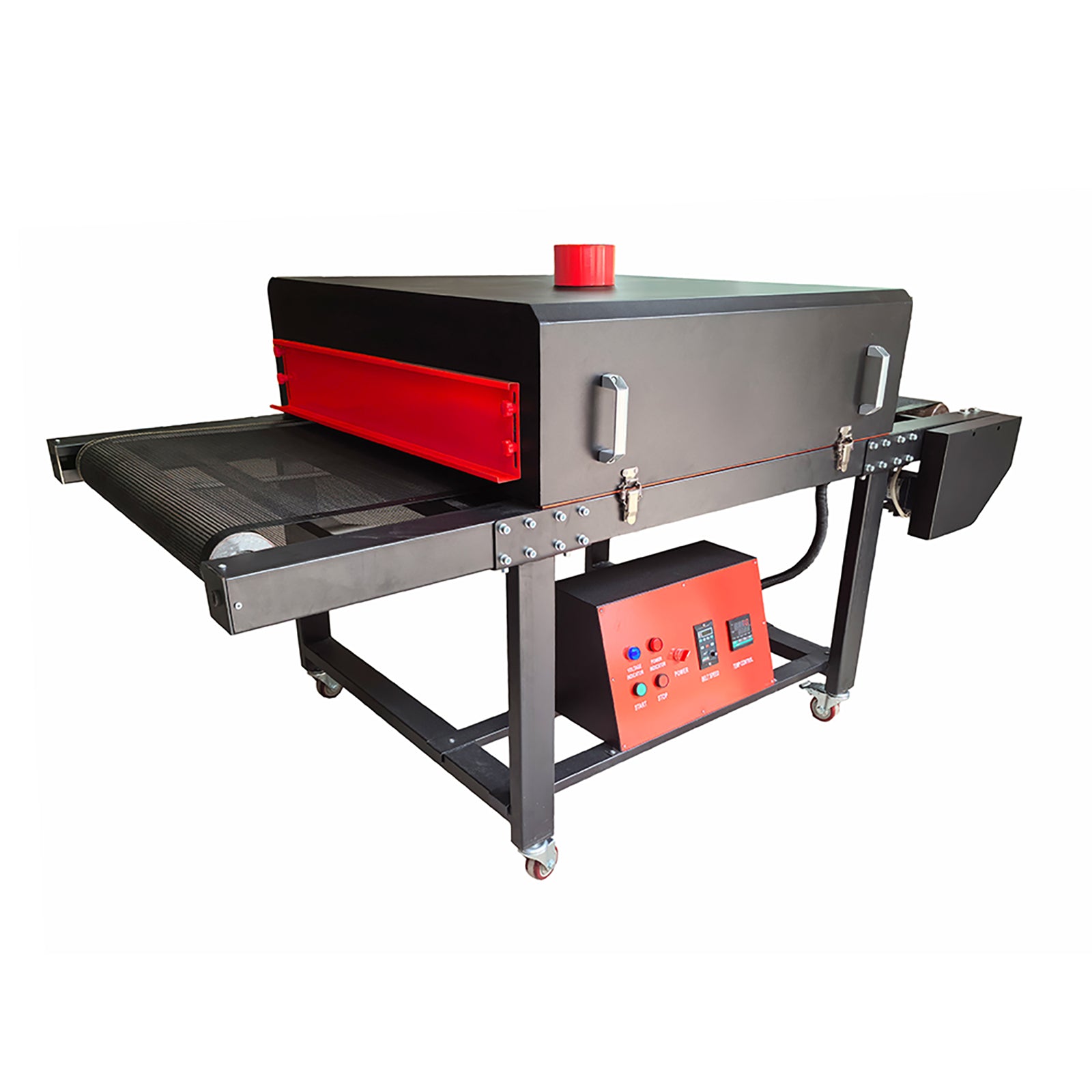

220V 4800W IR Conveyor Tunnel Dryer 6.56ft. Long x 25.6in Belt for Screen Printing

Application:
The infrared tunnel dryer effectively solves many problems which has long beset the utilization of this process,eg. discoloration of printed cloth, the difficulty of fully drying heating-set ink(platisol ink) enables the production of printed products with good colorfastness, high flexibility and high gloss. conveyor dryers are ideally suited for the home based, small shop screen printer, short runs, and on-site jobs.

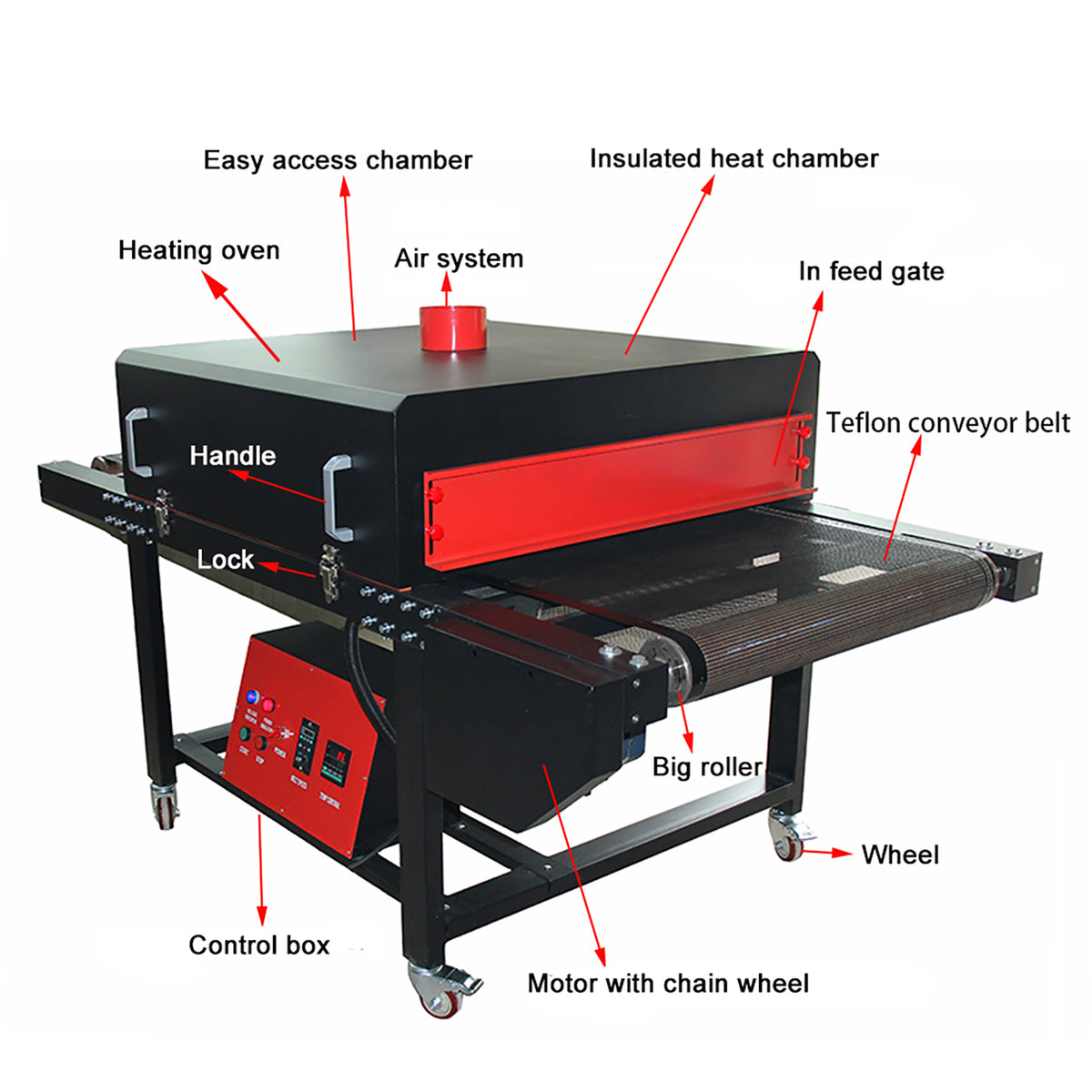

Features:
160inx 30in Teflon conveyor belt , customers' designs are welcome.
Motor can be set to any speed and provides a smooth and even motion.
IR heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
Adjustable belt speed and tunnel temperature controls.
High good quality IR heating tube with Reflective coating
Easy to adjust height of IR heating tube's rack
Adjustable gates on both in-feed and out-feed
Uses over 30% less electricity than other comparable products.
Easy to adjust the 2 roller when install the conveyor belt
Two big roller with guide trough to guaranteed run straight ,never position offset
All industrial strength sheet metal construction with powder coated
Smart assembleable design to save packing volume and shipping cost.

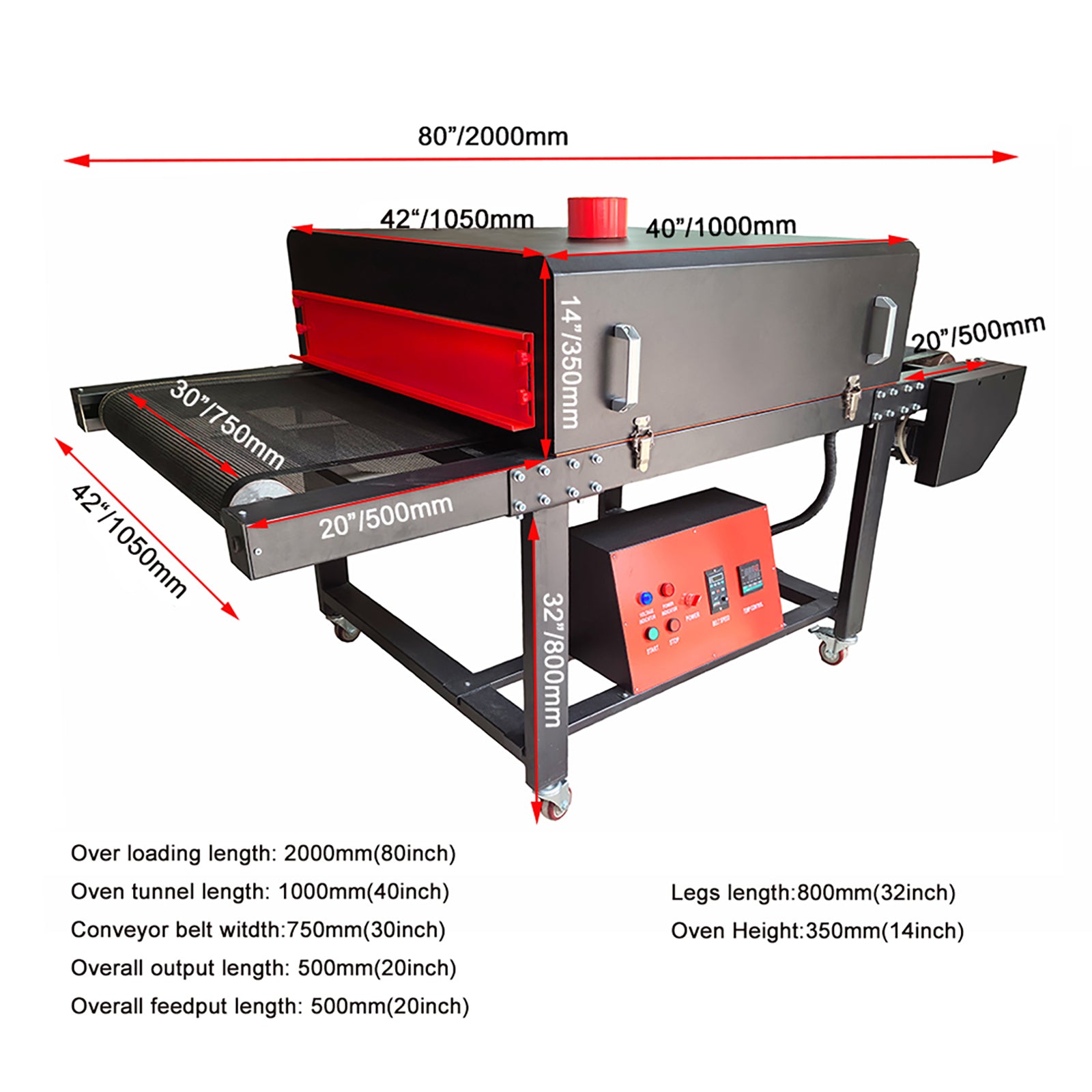

Parameter:
Overall output length:19.7in (500 mm)
Overall feedput length: 19.7in(500mm)
Oven tunnel length: 39.4in(1000mm)
Over loading length: 78.7in(2000 mm)
Conveyor belt witdth:29.5in(750mm)
Heater quantity: 6 Pcs
Total power: 220V,4800W,22A (single phase)
Temperature adjustment: 0-300 Centigrade
Belt speed adustment: 0-50cm/min
Demension: 51.2in x 43.3in x 41.3in(1300mm x 1100mm x 1050mm)
Gross weight:484lbs (220kg)
