1200mm 47" Roll-to-Roll Large Format Heat Transfer Machine for Making Samples (Oil-warming Machine)

$9,584.90
$9,584.90
    1200mm 47" Roll-to-Roll Large Format Heat Transfer Machine for Making Samples (Oil-warming Machine)
    1200mm 47" Roll-to-Roll Large Format Heat Transfer Machine for Making Samples (Oil-warming Machine)
    1200mm 47" Roll-to-Roll Large Format Heat Transfer Machine for Making Samples (Oil-warming Machine)

    Tech Specs

    Description

    1200mm 47" Roll-to-Roll Large Format Heat Transfer Machine for Making Samples (Oil-warming Machine) is designed for roll to roll sublimation & heat transfer use, main application for Textiles, Furnishing, Fashion, Sportswear, Curtain, etc. Compared to other models, this one is more fashion, more suitable for mid-class factory use.

    Features:

    • Constant temperature
    • 1 infrared heating element
    • Easy feeding table
    • Easy access design for felt entry and release
    • 3 x unwind + 3 x rewind
    • Drawer type piece finishing collection
    • Small packing to save shipping cost
    • Manual Felt-alignment Adjustment, Manual Felt- in/off

    Specifications:

    Specification
    Model HTM-FLRTR-1220P-T2B
    Heating Type Oil
    Drum Diameter 200mm
    Variable Working Speed 0 - 2.3m / min
    Recommended Working Temp. 190-230℃
    Alarm Temp. 250℃
    Power Consumption 5.5KW
    Power Requirement 230V,50/60Hz,1 phase
    Machine Size 1870 x 870 x 1300mm
    Shipping Dimensions 2000 x 870 x 1520mm
    Weight (NW/GW) 620/700kg

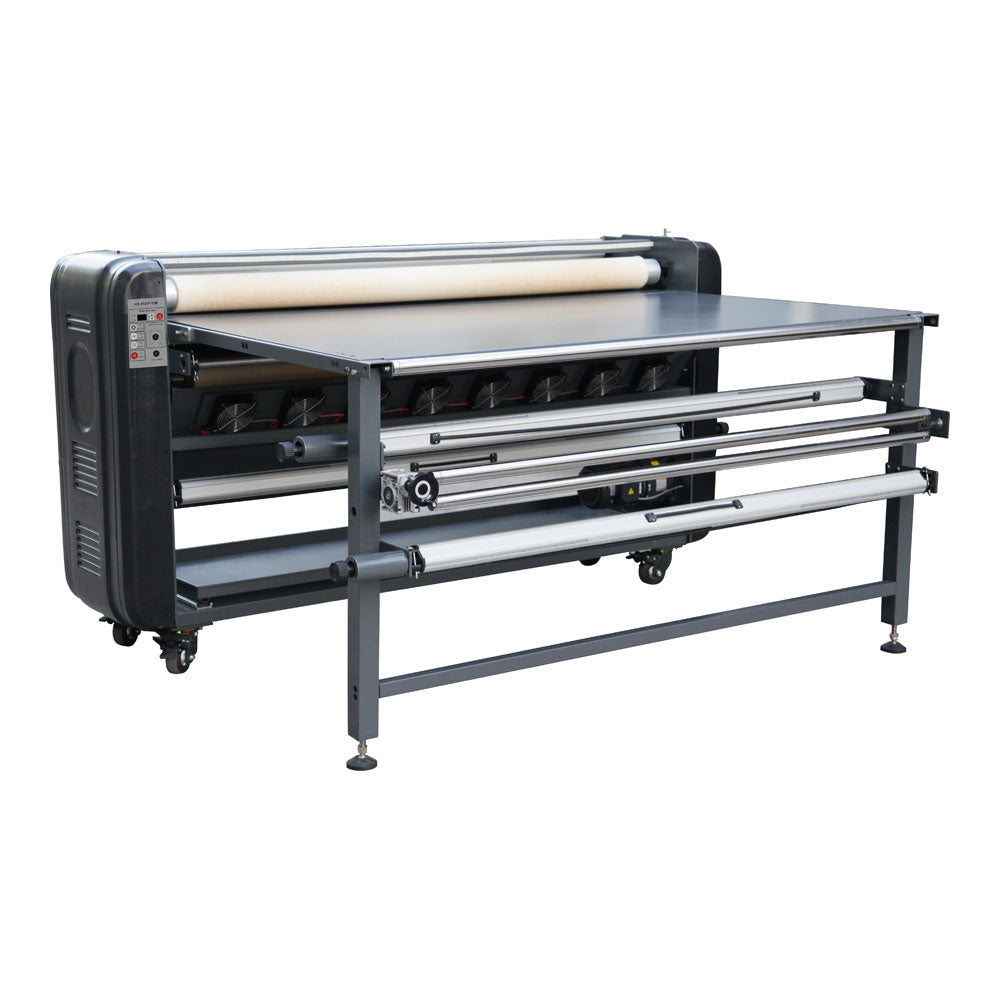

    Front View:

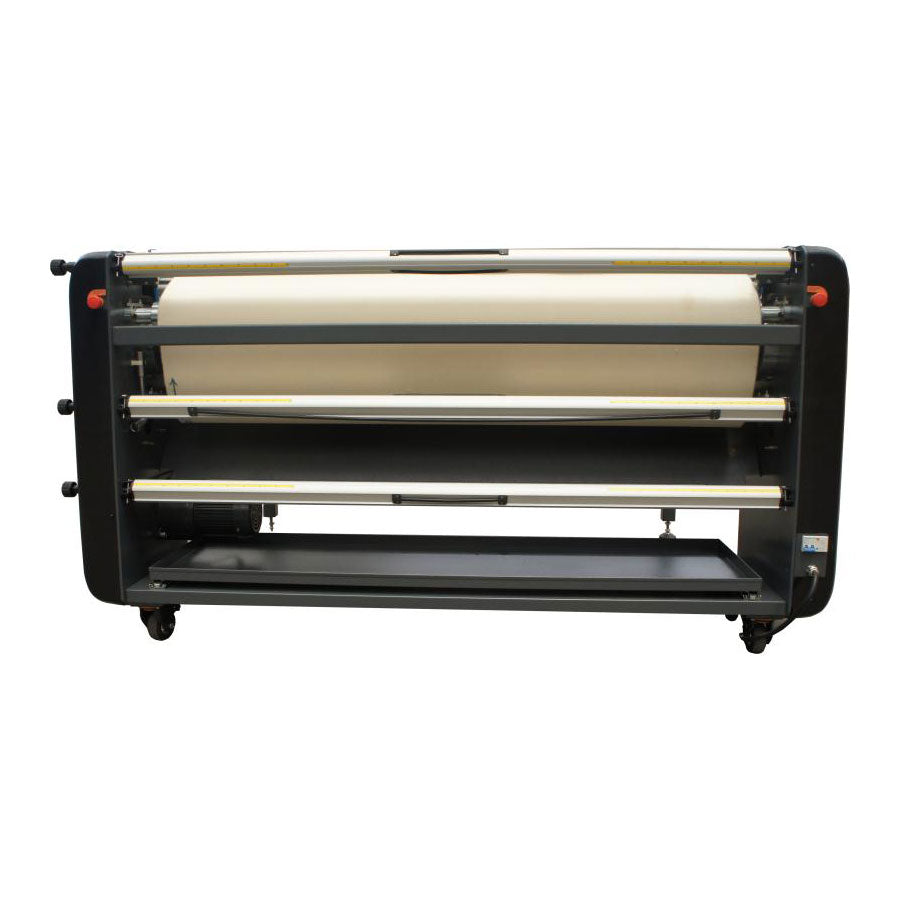

    Rear View:

    Working Principle:

    Applications:

    1. Flag and Banners

    2. T-shirts, Dresses and Sportwares

    3. Home Textiles

    4. Table Cloth & Display

    5. Yoga Mat

    6. Floor Mat

    7. Mouse Pads

    Unpacking:

    Note: This is a schematic diagram. The quantity of bolts is based on the packing dimension
    Caution: When moving the machine by forklift, must put the bottom frame of the machine on the forklift and people should protect the machine on both side. Be careful during transportation to prevent damage from falling off.
