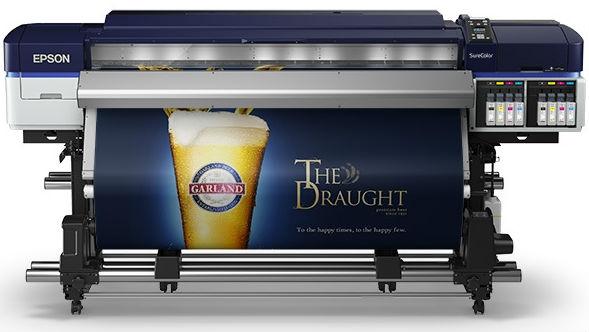

Epson SureColor S60600 Printer Solvent Production Edition 64"

Regular price
$13,995.00
Regular price
Sale price
$13,995.00

30-day free trial

Available gift wrapping

3 years warranty

    Epson SureColor S60600 Printer Solvent Production Edition 64" www.wideimagesolutions.com  15995.00

    Tech Specs

    Epson SureColor S60600 Printer Dual CMYK (Replaces Epson SureColor S50670)

    The Epson SureColor S60600 Printer is a production level wide format printer that delivers fast speeds on a variety of different media types. The versatility of this solvent wide format printer combined with quality engineering makes it a great choice for increasing your production and enhancing workflows.

    A Performance Benchmark Has Been Set.

    Introducing the all-new Epson SureColor S60600 Printer. This blazing fast printer has production print speeds of up to 550 sq. ft. per hour due to a CMYK Dual Array print head.



    Utilizing a Dual-Array PrecisionCore® TFP® print head, the Epson SureColor S60600 is the printer to count on when deadlines need to be met.

     Delivering outstanding everyday production and versatility, the SureColor S60600 Printer redefines the price-performance equation, while delivering unmatched value for any size print shop.

    Epson UltraChrome GS3 Solvent Ink: Newly formulated fast-drying UltraChrome GS3 Ink delivers outstanding print quality, durability, and superior media compatibility than previous SureColor S-Series printers. Individual 700 ml ink cartridges enable users to avoid production downtimes and maximize profitability. The SureColor S-Series printers are designed exclusively for use with Epson ink cartridges.

    New Epson Dual-Array PrecisionCore TFP Print Head: Offers high performance and consistency, along with variable size ink droplet technology for remarkable photographic print quality. In addition, new hardware enhancements offer greater resistance to head strikes and a new Epson Precision Dot™ screening technology provides for output with less visible banding, even at the fastest of production print speeds.

    New Precision Media Feeding System: Robust motorized Roll-to-Roll media handling with Automatic Tension Control technology provides extremely accurate media feed and take-up. Forty individual media Rollers with five independent pinch Rollers offer superior media skew control, drastically reducing print head strikes. And, an innovative media path optimized for consistent media feed enables true unattended Roll-to-Roll printing.

    Simple Operation and Maintenance: Automatic media alignment and setup will allow for faster switching between media types. Automatic print head cleaning – including a newly-developed fabric print head wiper system – significantly reducing the need for manual print head maintenance. Air circulation system keeps the print head cleaner for extended performance in high production environments. And, for a complete workflow solution, Epson includes a full copy of ONYX® GamaPrint Pro with free profile installation for the most popular signage media types.


    Epson SureColor S60600 Print Speeds:

    Banner Production Speed: 550 Sq.ft/hour

    Vinyl Production Speed: 310 Sq.ft/hour

    Base Printing Technology
    Advanced PrecisionCore TFP Print Head
    8-channel, drop-on-demand, ink jet head
    8-cartridge (C x2,M x2,Y x2,K x2)
    Epson Ultrachrome GS3 ink
    Professional-level solvent-based ink technology
    Printer Nozzle Configuration Color and Monochrome; 720 nozzles per Color
    Smallest droplet size is 4.2 picoliters
    Resolutions 1440 x 1440 dpi; 1440 x 720 dpi;
    720 x 720 dpi; 720 x 360 dpi
    Dimensions 103" (W) x 34" (D) x 53" (H)
    Printer Weight 635 lbs
    Printer Engine Speeds
    Banner
    Draft
    Production
    Quality

    Vinyl
    Draft
    Production
    Quality


    1020 sq ft/hr
    550 sq ft/hr
    310 sq ft/hr


    N/A
    310 sq ft/hr
    190 sq ft/hr
    Media Handling

    Media Input

    Cut Sheet Size

    Media Core Compatibility

    Input roll media diameter

    Input roll media weight

    Media Weight/Thickness

    Roll media take-up reel

    Output roll media weight


    Single roll-to-roll minimum 12" wide up to 64" wide

    17" x 22" up to 64" wide

    2" or 3" cored media

    Up to 9.8"

    Up to 95 lbs.

    from 45 gsm up to 1.0 mm thick

    Fully automatic "wind in" or "wind out" with tension bar

    Up to 95 lbs.
    Acoustic Noise Level Approximately 59 dB(A) according to ISO 7779
    Front-End RIP Workflow
    by ONYX

    GammaPrint Pro PANTONE licensed PostScipt
    Language Level 3 compatible RIP by ONYX. Includes
    full workflow software with layout, nesting, tiling,
    custom media support and RIP queue functionality.

    The Epson SureColor S40600 is also supported by
    most leading third-party RIPs and workflows
    Onyx GammaPrint Pro RIP
    Requirements

    Server Workstation:
    Windows 7, 8 or 10 (64-bit only)
    3.2 GHz Intel i7 or better 8 GB memory recommended

    Client Workstation
    Macintosh 10.5+, Windows 7, 8 or 10 (64-bit only)
    Printer Interfaces Includes as standard one Hi-Speed USB 2.0 (1.1
    compatible) and one Gigabit Ethernet port
    Epson Ultrachrome GS3 Ink Black, Cyan Magenta, and Yellow
    Limited Warranty and Service
    Standard one-year on site next business day service
    with toll-free phone support Monday thru Friday.

    Optional Epson SureColor S60600 Extended service
    plans available for purchase for up to three years of
    total coverage.
    Printable Area

    Maximum Paper Width

    Minimum Paper Width

    Left and right margins

    Maximum printable width


    64-inch

    12-inch

    0.20: (0.40" total)

    63.6 -inches

    * The printer is designed exclusivley for use with
    EPSON cartridges for grater reliability.
    Media Heating System

    Pre Heater

    Platen Heater

    Post Heater


    Off or 86 to 122 F (off or 30 to 50C)

    Off or 86 to 122 F (off or 30 to 50C)

    Off or 86 to 131 F (off or 30 to 55C)

    *Independently controlled via control panel or front-
    end RIP
    Epson Intelligent Ink
    Cartridge

    Cartridge fill volume

    Ink cartridge shelf life
    (recommended)



    700 ml each x 4 colors total

    2 years from printed production date or 6 months
    after open
    Image Permanence Ratings

    Full Color - Up to 3 Years

    Test Results based upson Epson Testing Labs using
    the ISO 18930 print surability standard.
    All print results are upon un-laminated prints printed
    on adhesive back vinyl.
    Durability numbers above are estimates of maximum
    image permanence.
    Your actual results may vary depending upson media
    type used. environmental display conditions and
    other factors.
    Epson does not warrant durability.
    Please visit 3M and Avery web site for laminated
    durability claims using their warranty programs.
    Environmental
    Characteristics


    Temperature Operating
    Storage

    Relative Humidity
    Operating

    Recommended Storage

    Installation Requirements



    50 to 95F (10 to 35C)
    -4 to 104F (-20 to 40C)

    20 to 80% (40 to 60% recommended)


    5 to 85% (no condensation)

    Virtually any location with a typical air conditioning or
    other air ventilation system. No forced ventilation or air
    purification systems required.
    Electrical Requirements

    Printer
    Voltage
    Frequency
    Current

    Voltage
    Frequency
    Current

    Power Consumption
    Printer

    Operating
    Standby Heaters ON
    Standby Heaters OFF
    Sleep
    Power Off
    Operating
    Sleep
    Power Off


    Requires Two 110v Outlets
    AC 100-120 V, AC 200-240 V
    50-60 Hz
    20A at AC 110-120 V or 10A at AC 200-240 V

    AC 100-120 V, AC 200-240 V
    50-60 Hz
    1A at AC 110-120 V or 0.5A at AC 200-240 V




    Approx. 650W or Less
    Approx. 520W
    Approx. 30W or less
    Less than 3.5W
    Less than 0.6W or less
    Approx. 45W
    Approx. 0.3W
    Less than 0.6W
