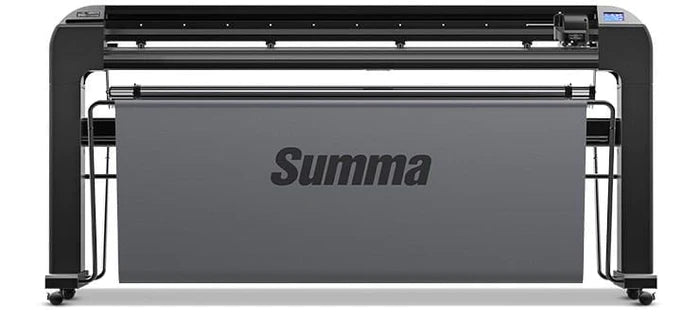

Summa OPOS-CAM S2 TC160 64" Vinyl Cutter - New

Regular price
$14,190.00
Regular price
Sale price
$14,190.00
    Summa OPOS-CAM S2 TC160 64" Vinyl Cutter - New

    Tech Specs

    Description

    OPOS-CAM™ represents the fourth generation evolution of Summa's revolutionary OPOS contour cutting alignment system – a factory upgrade option now available on all new Summa S2 T75, S2 T140 and S2 T160 contour cutting plotters.

    Precision-engineered to increase workflow efficiency when contour cutting printed graphics, signs, labels, vehicle wraps, decals and more, OPOS-CAM is the ideal choice for volume-driven environments that require ultra-fast yet meticulous automated cutting for short or long run jobs.

    By combining advanced camera optics technology with Summa's highly intelligent CameraControl recognition software, OPOS-CAM scores lightning-fast marker-recognition speeds (10 times faster than competing systems) for a wide array of media, including laminate materials.

    Coupled with Summa's state-of-the-art TrueTangential™ cutting head, all-powerful servomotors and exclusively patented MicroSprocket™ drive, Summa T Series operators experience unprecedented speed, confidence and accuracy - the kind of performance others can only dream about.

    Specification


    MODEL Summa S2 T160 with OPOS-CAM
    CUT TYPE True Tangential with OPOS-CAM and Drag Knife Cutting Mode Capability
    CUT WIDTHS 62.2-inch (158 cm), Extended Mode: width of the material
    CUT SPEED All S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal
    AXIAL ACCELERATION Up to 4 G
    MAXIMUM ACCELERATION Up to 5.5 G diagonal
    REPEATABILITY Within ± 0.004 in. (0.1 mm) on plots up to 40 ft. (12 m) long
    TRACKING 164 ft. (50 m) long
    CUT FORCE 0-600 grams of down-force, in 5 gram increments
    DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese
    CONNECTIVITY USB; Ethernet
    POWER REQUIREMENTS AC 100V to 240V ±10% 48-62Hz, 85 VA maximum
    DIMENSIONS 88.6 (W) x 26.8 (D) x 43.7 (H) in. 225 (W) x 68 (D) x 111 (H) cm
    SHIPPING WEIGHT 251 lbs (114 kg)
    OPERATING TEMPERATURE 59˚ to 95˚F (15˚ to 35˚C)
