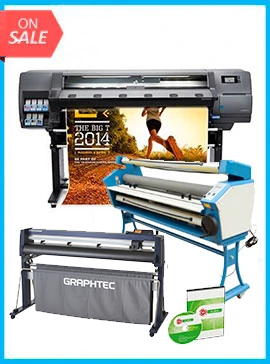

ON SALE - COMPLETE SOLUTION - HP Latex 310 54" Printer - Refurbished (90 Days Warranty) + Graphtec FC9000-140 54" (137.2 CM) Wide Cutter - New + 55" Full-auto Low Temp. Wide Format Cold Laminator, with Heat Assisted + Flexi RIP Software

Regular price
$14,003.98
Regular price
$15,003.98
Sale price
$14,003.98
    COMPLETE SOLUTION - Plotter HP Latex 310 - Recertified - (90 Days Warranty) + GRAPHTEC CUTTER FC9000-140 54" (137.2 cm) Wide Cutter - New + 55" Full-auto Low Temp. Wide Format Cold Laminator, with Heat Assisted + Includes Flexi RIP Software www.wideimagesolutions.com Complete Solutions 14999.99

    Tech Specs

    Business Financing Available



    * Refurbished printers doesn't come with starter supplies, those are sold separately

    This Package includes:

    • HP Latex 310 54" Printer - Refurbished (90 Days Warranty)
    • 55" Full-Auto Low Temp. Cold Laminator, With Heat Assisted - New
    • Graphtec FC9000-140 54" (137.2 CM) Wide Cutter - New
    • Flexi RIP Software for 1 Year (Compatible with Windows 10 and 11)

    HP Latex 310 54" Printer - Specifications

    Print speed, maximum
    48 m²/hr - Billboard (2 pass); 16 m²/hr - Outdoor Plus (6 pass); 12 m²/hr - Indoor Quality (8 pass); 9.7 m²/hr - Indoor High Quality (10 pass); 6.1 m²/hr - Backlits, Textiles, and Canvas (16 pass); 4.9 m²/hr - High Saturation Textiles (20 pass)
    Print quality color (best)
    Up to 1200 x 1200 dpi
    Print technology
    HP Latex Printing Technologies
    Ink types
    HP Latex Inks
    Print Cartridges/Bottle, Number
    7 (black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer)
    Print heads
    6 (2 cyan/black, 2 magenta/yellow, 1 light cyan/light magenta, 1 HP Latex Optimizer)
    Print head nozzles
    2112
    Print repeatability
    Average <= 1 dE2000, 95% of colors <= 2 dE2000
    Finished output handling
    Roll feed; take-up reel (optional)
    Media types
    Banners, self-adhesive vinyls, films, papers, wallcoverings, canvas, synthetics, (fabrics, mesh, textiles and any other porous materials require a liner)
    Non-printable area (roll media)
    0.2 x 0.2 x 0.2 x 0.2 in
    Non-printable area (roll media)
    5 x 5 x 5 x 5 mm
    Roll maximum input
    1
    Media width, maximum
    1371 mm
    Roll maximum weight
    25 kg
    Roll external diameter
    180 mm
    Media thickness
    Up to 19.7 mil
    Dimensions (W x D x H)
    2307 x 840 x 1380 mm 91 x 33 x 54 in
    Weight
    174 kg 384 lb
    Package dimensions (W x D x H)
    2541 x 760 x 1250 mm 100.1 x 30 x 49.3 in
    Package weight
    257.5 kg 568 lb
    Operating temperature range
    15 to 30ºC
    Operating humidity range
    20 to 80% RH (non-condensing)
    Acoustic pressure emissions
    54 dB(A)
    Acoustic pressure emissions (standby)
    38 dB(A)
    Acoustic power emissions (active, printing)
    7.2 B(A)
    Acoustic power emissions (standby)
    5.5 B(A)
    Power consumption
    2.2 kW (printing); 70 watts (ready); < 2.5 watts (sleep) Two power cords, single phase / two wires and PE


    55" Full-Auto Low Temp. Cold Laminator, With Heat Assisted

    Qomolangma 55in full-auto wide format roll to roll top heat assist laminator and mounting machine. No wrinkle, no silvering, no slidding!
    Equipped with heat on the top roller to activate the adhesive on your pressure sensitive lamination film, you can rest assured that you will achieve the perfect finish every time.
    WA series designed for wide format laminating or mounting application use. Entry level Full-auto roll to roll model with metal sheet construction.

    Used for:
    A perfect fit for entry-level customer, who is looking for an affordable and professional cold laminator for projects. This new model can be widely used for pre - masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on.
    Cold roll laminators are the perfect option for someone looking to enter the wide format graphics market. Equipped with all of the features needed to produce most applications, Qomolangma cold roll laminator promises quality, performance and safety – at an affordable price.
    • Great for mounting prints to boards
    • Over laminating digital prints
    • Applying application tapes, applying double side adhesives and vinyl
    Remark: Trimmer cutting function for your option, if you want this function, please choose "with trimmer"

    Features:

    • Good color reducibility and light transmittance, free of bubbles and snowflake point!
    • Free heavy duty floor stand with caster wheels
    • Laminates graphics up to 55in wide
    • Drop in type interchangeable 3 inches aluminum shaft
    • Manual nip adjustment up to 1.38 inch for handling of most substrates
    • 102mm (4in) bigger rollers for best quality laminating control
    • Safety eyes for increased operator safety
    • Foot switch for hands free operation
    • Removable front worktable for easy film setup
    • Adopt new - style aluminum alloy supporting roller.
    • One side hand crank lift up system
    • Button type control panel
    • Variable speed control
    • Forward and reverse direction control
    • E-stop and photocell installed for safety
    • Both auto and foot pedal switch mode
    • Removable pressure plate
    • Stand assembled at customer site

    Specification:
    Electrical Requirements: AC110V / 50 - 60Hz, AC230V / 50 - 60Hz
    Heated Rollers: Heat Assist
    Maximum Roller Temperature: 140F (60C)
    Maximum Speed: 19.685 ft / min (6m / min)
    Maximum Substrate Thickness: 1.38in (35mm)
    Maximum Working Width: 55in (1400mm)

    Usage:

    Qomolangma Laminator's Advantages:
    Hand crank and electric lifting: compared with pneumatic lifting structure, the roll parallel setting is more stable, meet the needs of high end customers with high laminating quality request, and there are fewer after-sales problems;
    Rubber roller: the original raw rubber roller has good elasticity and durability compared with the recycled rubber;
    Mechanical installation: the sheet metal is cut by laser to ensure the correct installation of the mounting hole, so as to ensure that the unwind/rewind shaft is parallel and finishing lamination is without wrinkle and air-bubble;
    Electric wiring: the design of electrical structure is humanized and easy to operate.

    Application:
    Sign & display, window graphics, banner, poster, POP, vehicle wrapping, wallpaper, cutting sheet sticker, labels & decals, proof, POS display, package, sign board,  flyer, document finishing, floor graphics, rigid and flexible indoor displays, board and many more.





    GRAPHTEC CUTTER FC9000-140 54" (137.2 cm) Wide Cutter - New


    Graphtec FC9000 Series Vinyl Cutter

    The flagship FC9000 Series is Graphtec’s most advanced, versatile roll fed cutting plotter to date. Revered around the world for its dependable, high-precision cutting capabilities with both printed and unprinted materials, the FC Series is the ultimate finishing solution for the wide format signage, apparel, and automotive industries. A newly developed feeding system and cutting head has further improved cutting quality of thin and thick materials ranging from delicate window tint to rigid magnet and high intensity reflective. ARMS 8.0 features the introduction of Graphtec’s Datalink barcode generation system which efficiently loads and processes your jobs automatically.

    DATALINK BARCODE

    Save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button. DataLink supports any combination of RIP software & printer in addition to included Cutting Master 4 and Graphtec Pro Studio software. The FC9000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.

    UNRIVALED PRINT / CUT ACCURACY

    Graphtec’s Advanced Registration Mark Sensing technology delivers precise Print / Cut results in addition to efficiency boosting features. The new white LED sensor and improved search algorithm accurately read registration marks printed from any printer onto a large variety of media types including high gloss, metallic, glitter, and high intensity reflective.

    HEAVY DUTY CUTTING

    No flatbed? no problem.

    A re-engineered feeding system has greatly enhanced the cutting capabilities of thin and thick media types. Add additional push rollers for increased precision when cutting heavy, rigid materials such as magnet, rubber, and diamond-grade high intensity reflective. Three pressure settings ensure strong media hold-down without leaving track marks.

    CONTOUR & DIE CUT

    Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.

    TAKE-UP REEL

    The optional take-up reel boosts production efficiency by automatically winding rolls of media up to 65 feet long with equipped infrared sensor.
    Compatible with the FC9000-140 and FC9000-160.

    All FC9000 models are sold with baskets and stands

    SKU:  GRCFC9000
    Max Cutting Length 600 in
    Max Pressure 600 g
    Max Speed 58.5 in/s
    Contour Cutting Yes - Automatic
    Class Pro Vinyl Cutters
    Intended Use Professional
    Price Range $1,000 - Above
    OS Compatibility Windows, Mac OSX
    Size 30|42|54|64 in
    Motor Type Servo
