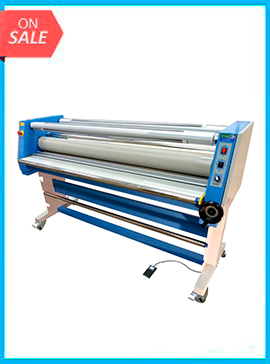

65in Master VT-9600H cold laminator w/Rewind and w/Heat Assist

Regular price
$3,919.99
Regular price
Sale price
$3,919.99
    65in Master VT-9600H cold laminator w/Rewind and w/Heat Assist

    Tech Specs

    USTECH VT - 9600H Professional Cold Laminator
    W/Heat Assist

    65" Professional Cold Laminator
    with Motor driven Auto Liner Pickup System
    ** with rear winder ** New **

    Why USTECH Master WORF VT-9600H?
    VT 9600H is next step up model from MVT Series. It comes with long-waiting rear winder shaft (motor driven directly), which is a must for running longer project; This feature will also save your working space as the finished prints will be automatically roll back on the rear winder shaft.

    VT 9600H is a versatile wide-format roller laminator with ONE Handle adjuster system to open and close the top roller. Maximum 1"+ nip opening make it ideal for various applications, no matter you're a signshop owner, or a photo studio owner.

    Here are some of the most popular application of this laminator:
    1. Vehicle wrap
    2. Mount digital prints on substrate ( up to 1.5" thickness can be used on this unit)
    3. Overlaminating your digital prints.
    4. Pre-mask vinyl decals
    5. Mount vinyl decals (cast or calendared) to any substrates.
    6. Apply adhesive on digital prints

    Feature Highlights
    1. Effective laminating width of 64"
    2. Five(5) inch silicone rollers guarantee results each time
    3. Auto and foot pedal running mode
    4. Speed control from 0-20 ft per minute.
    5. Forward and reverse running mode

    6. Maximum 1.5" nip opening
    7. Removable front working table - for easy material handling.
    8. Auto-grip shafts for easy material setup.
    9. Directly motor driven liner pickup shaft for best performances.
    10. Heavy duty lockable caster wheels
    11. Emergency Stop
    12. Easy Tension adjust on laminate and liner pickup shafts.

    Specifications:
    Model
    WORF VT-9600H
    Max laminating width
    64"
    Accept Media/laminate core size
    3"
    Top Roller Heated Up to 50C (120 F)
    Max Nip Opening
    1.5" (40mm)
    Rollers Diameter
    5"
    Roller Type
    Professional Silicone roller
    Speed Range
    0-20ft per minute adjustable
    Liner pickup shaft system
    Equipped,directly motor driven
    Rear winder shafts Yes. Motor directly driven
    Dual running Mode
    Auto and Foot Pedal control
    Foot Pedal
    Included
    Floor Stand
    Included,
    with lockable caster wheels
    Power Supply
    3A, 110 V, 50/60HZ
    Gross weight
    845 lbs
    Package Style
    wood crate
    Dimension size:
    84"(L) x 30"(W) x 30" (H)
    Warranty One year Limiated Warranty
    ** Specifications are subject to change without notice.
