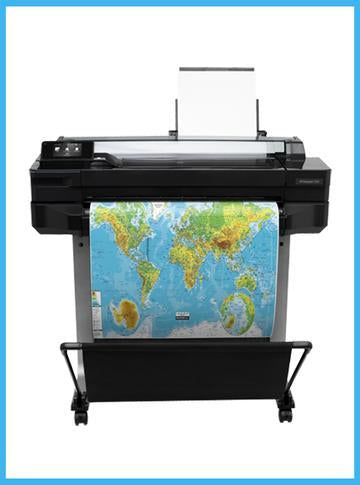

HP Designjet T520 24-in ePrinter - New

Product specifications
HP Data Sheet
View Document
Functions
Print
Mechanical print time, b&w line drawing, draft mode, plain
70 D prints per hour
Mechanical print time, line drawing, economode, plain
70 D prints per hour
Resolution (black)
Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi and Optimization For Photo Paper selected
Resolution (color)
Up to 2400 x 1200 optimized dpi
Print Technology
HP Thermal Inkjet
Number of print cartridges
4 (cyan, magenta, yellow, black)
Compatible ink types
Dye-based (C, M, Y); pigment-based (K)
Print languages
HP-GL/2, HP-RTL, HP PCL 3 GUI, JPEG, CALS G4
Connectivity, standard
Fast Ethernet (100Base-T); Hi-Speed USB 2.0 certified; Wi-Fi
Connectivity, optional
Compatible HP Jetdirect print servers
Network ready
Standard
Minimum system requirements
Mac OS X v 10.6: Mac computer with Intel® Core™ Processor; 1 GB RAM; 2 GB available hard disk space
Microsoft® Windows® 7: 32-bit (x86) or 64-bit (x64) processor (1 GHz); 1 GB RAM (32-bit) or 2 GB RAM (64-bit); 1 GB available hard disk space; Windows Vista® Ultimate/Business/Home Premium: 32-bit (x86) or 64-bit (x64) processor (1 GHz); 1 GB RAM; 1 GB available hard disk space; Windows® XP Professional/Home (SP3 or higher): Intel® Pentium® family or AMD K6™/Athlon™/Duron™ family (1 GHz); 512 MB RAM; 1 GB available hard disk space
Compatible operating systems
Microsoft Windows 7 Ultimate/Professional/Home Premium, Windows Vista Ultimate/Business/Home Premium, Windows XP (32-bit, 64-bit) Professional/Home, Windows Server 2008 (32-bit, 64-bit), Windows Server 2008 R2, Windows Server 2003 (32-bit, 64-bit); Mac OS X v 10.6, v 10.7, v 10.8; Citrix XenApp; Citrix XenServer
Memory, standard
1 GB
Memory, maximum
1 GB
Print speed, color (draft)
Mechanical printing time.
Hard disk
None
Non-printable area (cut-sheet)
0.2 x 0.67 x 0.2 x 0.2 in
Guaranteed minimum line width
0.0028 in (ISO/IEC 13660:2001(E))
Line accuracy
+/- 0.1%
Maximum optical density (black)
8 L* min/2.10 D
Finished output handling
Sheet feed; roll feed; input tray; media bin; automatic cutter
Media sizes supported
Input tray: A4, A3; manual feed: A2, A1
Media sizes, custom
Input tray: 8.3 x 11 to 13 x 19 in; manual feed: 13 x 19 to 24 x 74.7 in; roll: 11 to 24 in
Media types
Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes, standard
8.3 to 24-in wide sheets; 11 to 24-in rolls
Roll maximum output
150 ft
Roll external diameter
3.9 in
Media thickness
Up to 11.8 mil
Power
Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 1200 mA max
Power consumption
< 35 watts (printing), < 4.5 watts (sleep), < 0.3 watts (standby)
Operating temperature range
41 to 104ºF
Dimensions (W X D X H)
38.9 x 20.9 x 36.7 in
Weight
75 lb
Package weight
110.2 lb
What's in the box
HP Designjet T520 ePrinter; printhead; introductory ink cartridges; printer stand; spindle; quick reference guide; setup poster; startup software; power cord
Warranty
One-year limited hardware warranty
Software included
HP Designjet Utility for Mac and Windows, HP Designjet ePrint & Share for Windows
Mechanical print time, US D color image, best mode, glossy
16.3 min/page
Mechanical print time, US D color image, normal mode, glossy
9.3 min/page
Mechanical print time, US D color image, draft mode, coated
1.3 min/page
Mechanical print time, US D color image, normal mode, coated
4.1 min/page
Mechanical print time, color line drawing, draft mode, plain
35 sec/page
US D color line drawings/hr, draft mode, plain
70 D prints per hour
