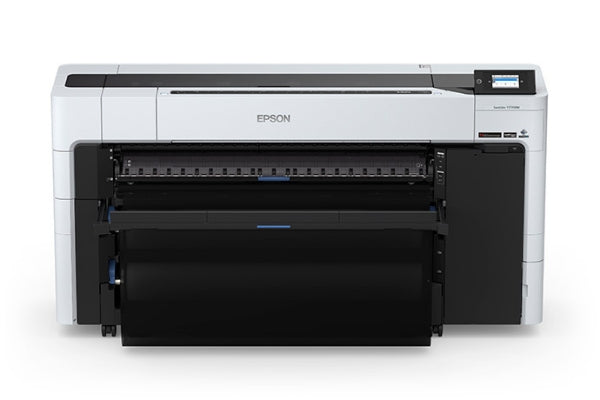

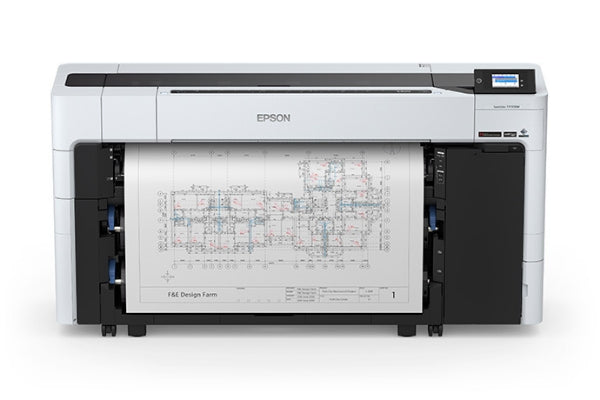

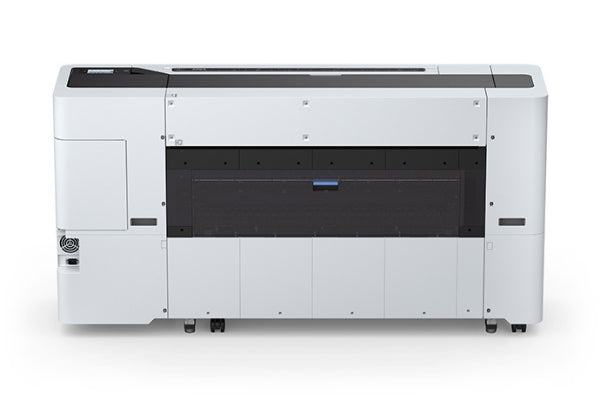

Epson SureColor T7770DM 44-Inch Large-Format Multifunction CAD/Technical Printer - New

$9,995.00
$9,995.00
    Epson SureColor T7770DM 44-Inch Large-Format Multifunction CAD/Technical Printer - New
    Epson SureColor T7770DM 44-Inch Large-Format Multifunction CAD/Technical Printer - New
    Epson SureColor T7770DM 44-Inch Large-Format Multifunction CAD/Technical Printer - New

    Tech Specs

    Description

    This design changes everything

    Epson delivers a first-of-its-kind design that redefines innovation, speed and versatility for its class: the all-in-one SureColor® T7770DM. This multifunction printer features an integrated 36" wide dual-light scanner that enables both high-speed scanning, at up to 10 inches per second (black-and-white) and 4.5 inches per second (color), and copying for wide-format documents. What’s more, there is no additional footprint vs. single-function T7770 Series printers. The scanner’s dual light source reduces the appearance of wrinkles on the original document, and predefined modes help optimize scan quality based on image type. With a compact design that includes full front operation, the T7770DM fits where other printers don’t.

    The T7770DM delivers A1/D-size prints in as fast as 16 seconds and features integrated wireless connectivity, so you can easily print from virtually anywhere in your home or office as well as scan a variety of file formats to your mobile device using the Epson Smart Panel® app. Additionally, the printer’s vibrant UltraChrome® XD3 six-ink set with dedicated Red Ink opens the door to both an extraordinary color gamut for a production printer and rich red branding colors. And simple, carefree operation combined with new levels of versatility and media flexibility helps users do more using less space—all with a low total cost of ownership. Add it all up, and the T7770DM is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.
    • Incredible speed and performance — delivers crisp, detailed, colorful prints using a reliable 2.64" PrecisionCore® MicroTFP printhead, producing remarkable A1/D-size prints in as little as 16 seconds
    • Innovative design fits almost any workflow — unique flattop design with complete front operation, simple automatic roll loading and dual roll/take-up reel integrated
    • Compact design with integrated 36" wide dual-light scanner — scan and copy documents up to 36" wide with no additional footprint vs. single-function T7770 Series printers; dual light source reduces the appearance of wrinkles
    • Versatile high-speed scanning options — scan files to USB, mobile devices, PCs, network folders and more at speeds up to 10 inches per second (black-and-white) and 4.5 inches per second (color); file formats include PDF, JPEG and TIFF; line drawing, blueprint and rendering enhancement predefined modes available based on image type
    • Stunning image quality and precise line detail — vivid UltraChrome XD3 Ink with Red Ink produces crisp lines and vibrant colors for graphics, signage, blueprints, documents and more
    • Print on a wide range of media for various applications — print on a variety of media, including glossy, technical, bond, matte and specialty media, and rigid posterboard up to 1.5 mm thick
    • Seamless, dual-roll productivity — accommodate two media types or sizes, or use the second roll as a take-up reel for roll-to-roll production
    • Easy to use and maintain — configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance and convenient user self-service for long-term operation
    • No assembly required — be up and printing in as little as 30 minutes
    • Versatile connectivity — SuperSpeed USB 3.0, Gigabit Ethernet and Wi-Fi® connectivity (2.4 GHz and 5 GHz) options to fit virtually any production workflow
    • Included Epson® Software Suite and Epson Cloud Solution PORT help maximize productivity — remotely manage and monitor your printer fleet from the convenience of your laptop or smart device

    Designed for use exclusively with Epson ink packs*.



    Technical Specifications

    Print

    Printing Technology PrecisionCore MicroTFP 6-channel drop on demand
    Ink Type UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)
    Nozzle Configuration 9,600 nozzles (1,600 x 6 channels)
    Droplet Technology
    Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle
    Maximum Resolution 2400 x 1200 dpi
    Real-Time Black Ink Selection Dedicated Photo and Matte Black Ink channels selected automatically based on media type
    Print Speed
    A1/D-Size (Plain Paper): 16 sec
    A0-Size (Plain Paper): 32 sec (Speed Mode)
    A0-Size (Glossy): 108 sec (Speed Mode)
    Printer Language/Drivers
    Epson Professional Print Drivers (included), Epson ESC/P® raster, Adobe® PostScript 3™, Adobe PDF 1.7, Adobe Embedded Print Engine (included)
    Memory (Built-In): 6GB Printer + 3GB Scanner


    Ink

    In-Box Cartridge Fill Volume
    Colors (C, M, Y, R): 240 mL each
    Black (MK, PK): 240 mL each
    Retail Cartridge Fill Volume
    Colors (C, M, Y, K, R): 110 mL, 350 mL or 700 mL
    Black (MK, PK): 110 mL, 350 mL or 700 mL
    Printer is designed for use with Epson cartridges only, not thirdparty cartridges or ink*.


    Copy

    Maximum Copies Up to 99
    Reduction/Enlargement 25% – 755%


    Scan

    Scanner Type RGB Color Filter CIS
    Scan/Copy Resolution Up to 600 dpi, reprint 2400 x 2100 dpi
    Scan Speed
    Up to 4.5 ips (color)
    Up to 10 ips (monochrome)
    Maximum Scan Width Up to 36"
    Maximum Scan Length Up to 120" (300 dpi)
    Scan Media Type Plain Paper, Recycled Paper, Coated Paper, Glossy Paper, Tracing Paper, Film, Blueprint, Offset Printing Paper, Newspaper, Flyer, Drafting Paper, Carrier Sheet
    Maximum Copies Up to 99
    Reduction/Enlargement 25% – 755%
    File Type Support JPEG, PDF (Single Page), PDF (Multi-Page), PDF/A, Encrypted PDF, TIFF


    Printer Interfaces

    SuperSpeed USB 3.0, 100Base-TX/1000Base-T, IEEE 802.11 b/g/n/ac, USB memory stick, 960GB (SSD), Adobe Embedded Print Engine, Articulating LCD Display, 4.3" touchscreen and Optional RFID card reader (USB Expansion Port)


    Connectivity

    Standard Connectivity SuperSpeed USB 3.0, Gigabit Ethernet and Wi-Fi connectivity (2.4 GHz and 5 GHz



    Operating Systems Supported

    Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista®, Windows XP® (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/ 2012/2008 R2/2008/2003 R2/2003 SP2 or later


    Paper Handling

    Roll Media Handling
    Number of Input Rolls: 2 (Input Roll #1 can be used optionally as a take-up reel)
    Take-Up Reel: Included
    Take-Up Reel Configuration: Roll print-side in or print-side out
    (selectable)
    Minimum Roll Width: Minimum 10"
    Maximum Roll Width: Up to 44"
    2" or 3" Core Diameter: User-adjustable roll media spindles
    Roll Cutting: High-speed internal rotary cutter; auto or manual
    (replaceable)
    Maximum Roll Diameter: Up to 6.69"
    Maximum Roll Weight: 27 lb
    Roll Media Thickness: 0.07 mm to 0.8 mm
    Roll Paper Remaining: Printable barcode tracking; the amount of remaining paper can be controlled and monitored automatically
    from the control panel
    Sheet Media Handling
    Single Sheet, Front- or Rear-Loading: Up to 44" wide
    Minimum Sheet Width: 8"
    Minimum Sheet Length: 8"
    Sheet Media Maximum Thickness: Up to 1.5 mm
    Posterboard: 0.8 mm – 1.5 mm (rigid posterboard only)
    Printable Area and Accuracy
    Line Accuracy: ±0.1% or ±0.26 mm (whichever is greater)
    Margins:
    Left/Right: 3 mm per side (standard) or 0 mm at BorderFree® widths
    Top/Bottom:
    Roll Paper: Minimum 3 mm top and 3 mm bottom
    Cut Sheet: Minimum 3 mm top and 12.7 mm bottom
    BorderFree Sizes: 10", 13", 16", 17", 20", 24", 36" and 44" wide
    Maximum Printable Length: Up to 298 ft
    Minimum Line Width: 0.08 mm


    General

    Temperature
    Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
    Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)
    Relative Humidity
    Operating: 20% – 80% (no condensation)
    Storage: 5% – 85% (no condensation)
    Acoustic Noise Level
    Operating: 49.6 dBA
    Sleep: 6.6 dBA
    Power Requirements
    Voltage: AC 110 V – 240 V
    Frequency: 50 Hz – 60 Hz
    Current: 3.4 A
    Power Consumption
    Printing: Approx. 90 W
    Ready: Approx. 44 W
    Sleep: 2 W
    Power Off (Standby): 0.3 W
    Safety Approvals
    USA and Canada (NRTL Certified, CSA/UL 62368-1)
    Compliant with FCC Class B Requirements
    Dimensions (W x D x H)
    73" x 20" x 39" (storage and operating)
    73" x 33" x 39" (paper basket extended)
    Weight: 366 lb
