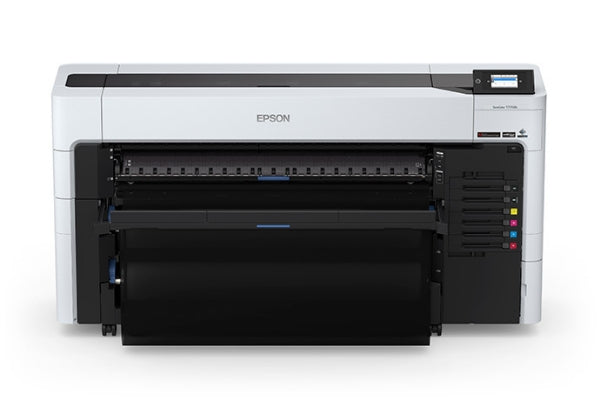

Epson SureColor T7770DL 44-Inch Large-Format Dual-Roll CAD/Technical Printer w/1.6 L Ink Pack System - New

$8,945.00
$8,945.00
    Epson SureColor T7770DL 44-Inch Large-Format Dual-Roll CAD/Technical Printer w/1.6 L Ink Pack System - New
    Epson SureColor T7770DL 44-Inch Large-Format Dual-Roll CAD/Technical Printer w/1.6 L Ink Pack System - New
    Epson SureColor T7770DL 44-Inch Large-Format Dual-Roll CAD/Technical Printer w/1.6 L Ink Pack System - New

    Tech Specs

    Description

    This design changes everything

    Epson delivers a first-of-its-kind design that redefines speed, versatility and efficiency for its class: the SureColor® T7770DL. Having the smallest footprint in its class—up to 25% smaller than its competition—and full-front operation means the T7770DL fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, generating technical drawings at production-class speeds over 1,400 ft2/hr, A1/D-size prints in as little as 16 seconds, and graphics at speeds up to 300 ft2/hr. Its innovative UltraChrome® XD3 six-ink set with dedicated Red Ink opens the door to both an extraordinary color gamut for a production printer and rich red branding colors. Built with a 1.6-liter bulk ink pack system (ink sold separately), this high-quality printer provides over double the ink capacity of previous generations for a remarkably low ink cost per milliliter, as well as helps minimize waste when compared to Epson® SureColor T-Series cartridge systems. And simple, carefree operation combined with new levels of versatility and media flexibility helps users do more using less space—all with a low total cost of ownership. Add it all up, and this is not just a one-of-a-kind printer: it’s the new benchmark in high-speed CAD and graphics.
    • Incredible speed and performance — delivers crisp, detailed, colorful prints using a reliable 2.64" PrecisionCore® MicroTFP printhead, producing remarkable A1/D-size prints in as little as 16 seconds
    • Reduce total cost of ownership — 1.6 L bulk ink pack system (ink sold separately) more than doubles the ink capacity of previous generations for improved efficiency
    • Innovative design fits almost any workflow — unique flattop design with complete front operation, simple automatic roll loading and dual roll/take-up reel integrated
    • Stunning image quality and precise line detail — vivid UltraChrome XD3 Ink with Red Ink produces crisp lines and vibrant colors for graphics, signage, blueprints, documents and more
    • Print on a wide range of media for various applications — print on a variety of media, including glossy, technical, bond, matte and specialty media, and rigid posterboard up to 1.5 mm thick

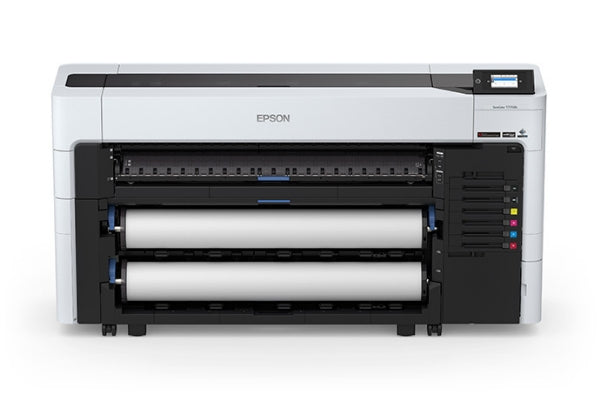

    • Seamless, dual-roll productivity — accommodate two media types or sizes, or use the second roll as a take-up reel for roll-to-roll production
    • Easy to use and maintain — configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance and convenient user self-service for long-term operation
    • No assembly required — be up and printing in as little as 30 minutes
    • Versatile connectivity — SuperSpeed USB 3.0, Gigabit Ethernet and Wi-Fi® connectivity (2.4 GHz and 5 GHz) options to fit virtually any production workflow
    • IT and security features — over 28 IT and security features for office or remote office locations, including IC card option for user control and tracking, SSD Encryption and IEEE 802.1x
    • Maximize productivity with included Epson Software Suite and Epson Cloud Solution PORT — remotely manage and monitor your printer fleet from the convenience of your laptop or smart device
    Designed for use exclusively with Epson ink packs*.

    Technical Specifications

    Print

    Printing Technology PrecisionCore MicroTFP 6-channel drop on demand
    Ink Type UltraChrome XD3 Pigment Ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)
    Nozzle Configuration 9,600 nozzles (1,600 x 6 channels)
    Droplet Technology
    Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle
    Maximum Resolution 2400 x 1200 dpi
    Real-Time Black Ink Selection Dedicated Photo and Matte Black Ink Channels selected automatically based on media type
    Print Speed
    CAD (B0 Size Plain Paper): Over 1,400 ft2/hr
    A1/D Size (Plain Paper): 16 sec
    Poster (Glossy): Over 300 sq ft2/hr
    Printer Language/Drivers
    Epson Professional Print Drivers (Included), Epson ESC/P® raster, HP-GL/2, HP RTL, Adobe® PostScript® 3™, Adobe PDF 1.7, Adobe Embedded Print Engine (Included)
    Memory (Built-In)
    4GB


    Epson Replacement Ink Packs

    Ink packs are not included with this printer.
    Starter Ink Set (T52YM20) is needed to initialize printer and sold separately.
    Retail Ink Pack Fill Volume
    Colors (C, M, Y, R): 1.6 L
    Black (MK, PK): 1.6 L


    Roll Media Handling

    Number of Input Rolls 2 (Input Roll #1 can be used optionally as a take-up reel)
    Take-Up Reel Included
    Take-Up Reel Configuration Roll Print-Side in or Print-Side out (Selectable)
    Minimum Roll Width Minimum 10"
    Maximum Roll Width Up to 44"
    2" or 3" Core Diameter User-adjustable roll media spindles
    Roll Cutting High-speed internal rotary cutter; auto or manual (replaceable)
    Maximum Roll Diameter Up to 6.69"
    Maximum Roll Weight 27 lb
    Roll Media Thickness 0.07 mm to 0.8 mm
    Roll Paper Remaining Printable barcode tracking - the amount of remaining paper can be controlled and monitored automatically from the control panel.


    Sheet Media Handling

    Single Sheet, Front or Rear Loading Up to 44" wide
    Minimum Sheet Width 8"
    Minimum Sheet Length 8"
    Sheet Media Maximum Thickness Up to 1.5 mm
    (Rigid Posterboard)


    Printable Area and Accuracy

    Line Accuracy ±0.1% or ±0.26 mm (whichever is greater)
    Margin:
    Left/Right 3 mm per side (Standard), or 0 mm at BorderFree widths
    Top/Bottom:
    Roll Paper Minimum: 3 mm top/bottom
    Cut Sheet Minimum: 3 mm top and 12.7 mm bottom
    BorderFree Sizes 10", 13", 16", 17", 20", 24", 36" or 44" wide
    Maximum Printable Length 298 feet
    Minimum Line Width 0.08 mm


    Interfaces

    Articulating LCD Display 4.3" Touchscreen
    USB Expansion Port Optional RFID Card Reader


    Printer Interfaces

    SuperSpeed USB 3.0, 100BASE-TX /1000BASE-T/IEEE 802.11b/g/n/ac, USB memory stick, 960GB SSD (optional)


    Operating Systems Supported

    Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista®, Windows XP (32-bit/64-bit), Windows Server® 2019/2016/2012, R2/2012/2008, R2/2008/2003, R2/2003 SP2 or later


    General

    Dimensions (W x D x H) 73" x 19.6" x 38.4" (Storage and Operating)
    Dimensions (W x D x H) 73" x 32.6" x 38.4" (Paper Basket Extended)
    Weight 364 lb
    Acoustic Noise Level
    Operating: 49.6 db(A)
    Sleep: 6.6 db(A)
    Temperature
    Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
    Storage: -4 ˚F to 104 ˚F (-20 C˚ to 40 ˚C)
    Relative Humidity
    Operating: 20% – 80% (no condensation)
    Storage: 5% – 85% (no condensation)
    Safety Standards
    USA and Canada (NRTL Certified, CSA/UL 62368-1)
    Compliant with FCC Class B Requirements
    Electrical Requirements
    Voltage: AC 110 V – 240 V
    Frequency: 50 Hz – 60 Hz
    Current: 3.4 A
    Power Consumption
    Printing: Approx. 75 W
    Ready: Approx. 32 W
    Sleep: 2 W
    Power Off (Standby): 0.3 W
