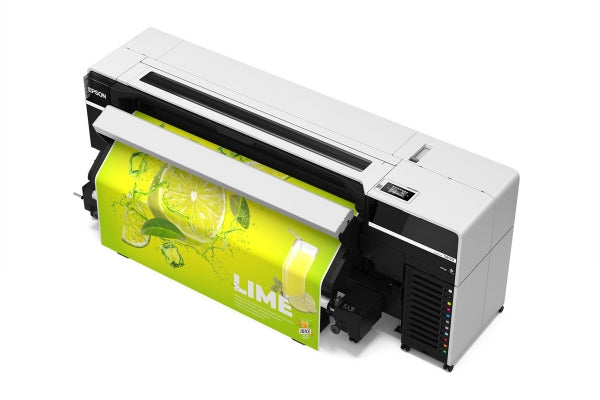

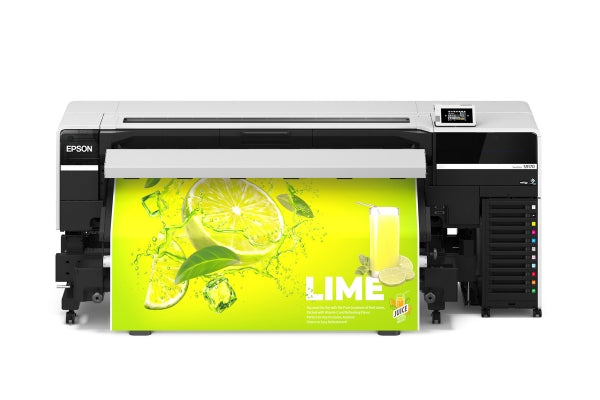

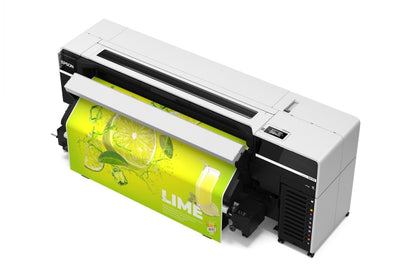

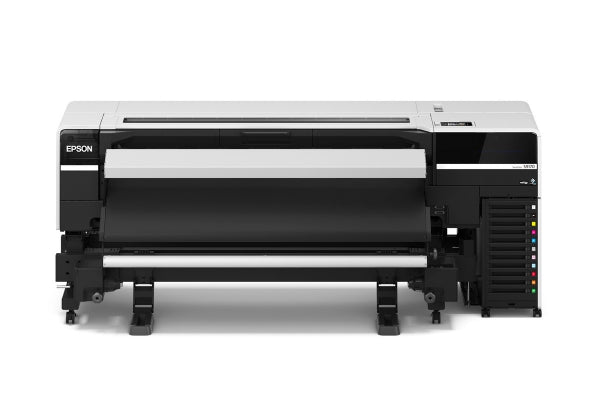

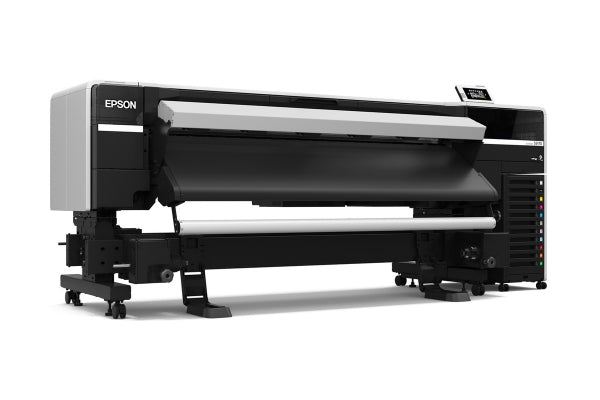

Epson SureColor S9170 64" Roll-to-Roll Solvent Printer - New
- Regular price
-
$26,595.00 - Regular price
-
- Sale price
-
$26,595.00
Couldn't load pickup availability
Tech Specs
Description
The EPSON SureColor S9170 is a new addition to the S-Series lineup, not a replacement for the SureColor S80600. It features an 11-color ink set, with the notable addition of GREEN ink. While it uses the same UltraChrome GS3 ink as the SureColor S80, the Green ink replaces metallic silver, expanding the color gamut by 13-19% compared to the S80.
The S9170 boasts a compact, precise, and efficient design, about a foot narrower than previous models. Its flat-top design not only enhances its aesthetics but also provides functional workspace. This printer introduces the first-ever user-replaceable print head, featuring the new PrecisionCore TFP print head, which is 1.3 times larger than that of the S80. It offers reduced banding and includes an ink temperature sensor directly on the nozzle.
Users can mix and match inks, choosing between 800mL or 1.5L ink packs. The S9170 also offers faster startup times with no need for cleaning packs or cartridges during initialization. Its nozzle verification technology automatically adjusts when a nozzle isn’t firing properly. Additionally, the printer is equipped with front and back loading levers and a media lifter for easier handling. Epson is collaborating with ONYX to provide a supporting RIP.
The EPSON SureColor S9170 is scheduled to ship in 2025. To secure your spot in the pre-order queue, call us at 1-800-771-9665, and we'll ensure you're among the first to receive it!
Key Features
- Class-leading image quality — offers the same extreme color gamut Epson is known for; reach up to 99% PANTONE coverage
- Game-changing UltraChrome® GS3 color ink set — expanded color gamut with Red, Orange and an all-new Green Ink; extremely fast dry times for same-day lamination
- Sleek and compact — features an all-new precise and efficient footprint
- Breakthrough design — built with the latest generation PrecisionCore TFP printhead
- Save time and hassle — first-ever user-replaceable solvent printhead in its class
- White Ink adds versatility and enhances colors — opaque White Ink can be used on clear or dark substrates
- Versatile ink — mix and match ink sizes; 800 mL or 1,500 mL
- Easy to maintain — automatic daily printhead maintenance
- Advanced software — simple integration to Epson Cloud Solution PORT® printer monitoring system
- World-class service and support — 1-year limited warranty included for your peace of mind
Technical Specifications
| Feature | Details |
|---|---|
| Printing Technology | PrecisionCore Micro TFP printhead with Nozzle Verification Technology |
| Ink Type | UltraChrome GS3 eco-solvent ink |
| Ink Colors | C, M, Y, K, Lc, Lm, Lk, Or, G, R, W or Cl |
| Nozzle Configuration | 9,000 nozzles: 800 nozzles x 10 colors; 1,600 nozzles x 1 color (White) |
| Maximum Resolution | 1200 x 1200 dpi |
| Minimum Ink Droplet | Smallest Droplet Size: 4.3 picoliters; Variable Droplet Technology can produce up to three different sizes per line |
| Left/Right Margin (Roll Paper) | 5 mm |
| Printer Language/Drivers | ESC/P raster |
| Memory | 4 GB |
| Feature | Details |
|---|---|
| Ink Pack Fill Volume | 800 mL or 1.5 L |
| Ink Case | Ink Supply Unit |
| Compatibility | Use only with genuine Epson ink packs, not third party ink systems* |
| Feature | Details |
|---|---|
| Paper Path | Single Roll |
| Paper Feed Method | Friction feed |
| Maximum Roll Weight | 99.21 lb (45 kg) |
| Maximum Roll Diameter | 9.84" (250 mm) |
| Paper Width (Roll) | 11.81" to 64" (300 mm to 1,625.6 mm) |
| Paper Thickness (Roll) | Less than 1 mm |
| SuperSpeed USB 3.0 | 1 port |
| Ethernet | 100Base-TX/1000Base-T (1 port) |
|
Windows® 8.1 x64 or later, macOS® 10.7 or later Epson Edge® Print Pro Minimum PC Requirements: Intel® Core i3 3.0 GHz or faster, 8GB RAM or more, 50GB HDD or more, DVD-ROM, and internet connection |
| Control Panel | 4.3" Optical Touch Color LCD |
|---|---|
| Dimensions (Printing) | 102.2" x 39.2" x 102.2" |
| Dimensions (Stowed) | 107.9" x 29.9" x 45.1" |
| Weight | 754 lb (342 kg) |
| Acoustic Noise Level | Operation: ≤ 7.9 dBA, Sound Pressure: ≤ 60.5 dB(A) |
| Temperature | Operating: 59 °F to 95 °F (15 °C to 35 °C), Storage: -4 °F to 104 °F (-20 °C to 40 °C) |
| Relative Humidity | Operating: 20 – 80% (no condensation) Operating (recommended): 40% - 60% (no condensation), Storage: 5 – 85% (no condensation) |
| Voltage | AC 100 – 120 V / 200 – 240 V (50/60 Hz) |
| Power Consumption | Operating: 1190 W, Ready: 500 W, Sleep: 3.4 W, Power Off: 0.3 W |
| Country of Origin | China |
|
ENERGY STAR® qualified RoHS compliant End-of-life options available SmartWay® Transport Partner |
| Color | Part Number |
|---|---|
| Black | T51N120 |
| Cyan | T51N220 |
| Magenta | T51N320 |
| Yellow | T51N420 |
| Light Cyan | T51N520 |
| Light Magenta | T51N620 |
| Light Black | T51N720 |
| Orange | T51N820 |
| Green | T51NF20 |
| Red | T51N920 |
| Cleaning | T56L000 |
| White | T51NA20 |
| Color | Part Number |
|---|---|
| Black | T51U120 |
| Cyan | T51U220 |
| Magenta | T51U320 |
| Yellow | T51U420 |
| Light Cyan | T51U520 |
| Light Magenta | T51U620 |
| Light Black | T51U720 |
| Orange | T51U820 |
| Green | T51UF20 |
| Red | T51U920 |
| White | T51UA20 |
