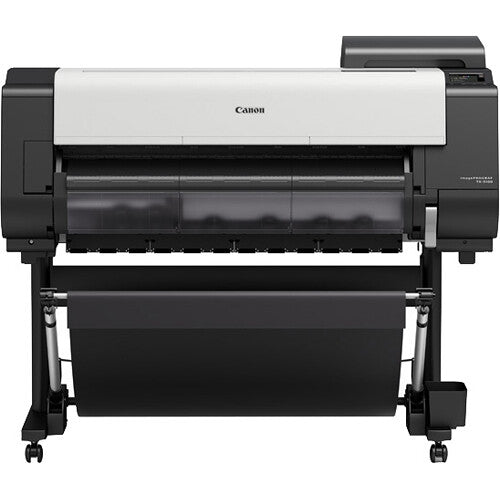

• Canon imagePROGRAF TX-3100 36" Large Format Printer with Catch Basket - New
1 1

Wide Image Solutions

Canon imagePROGRAF TX-3100 36" Large Format Printer with Catch Basket - New

$6,397.00
$6,397.00
    Canon imagePROGRAF TX-3100 36" Large Format Printer with Catch Basket - New

    Tech Specs

    Specifications

    Printer Type
    5-Color 36-inch PrinterNumber of NozzlesTotal: 15,360
    MBK: 5,120 nozzles
    C, M, Y, BK: 2,560 nozzles each
    Nozzle Pitch
    1200 dpi
    Non-firing nozzle detection and compensationPrint Resolution (Up to)2400×1200dpi (Max)
    OS Compatibility
    Windows® 7, 8.1, 10 (32/64bit)
    Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019 (64bit)
    Macintosh® OS 10.12.6 and later
    Standard Interfaces
    USB 2.0 High-Speed
    10/100/1000 Base-T/TX
    Ink Droplet Size
    5 picoliter
    Ink Capacity
    160 ml, 330ml or 700ml per colorInk Droplet SizePigment Ink
    Color Set
    Pigment: Matte Black, Black, Cyan, Magenta, Yellow
    Buffer Ram
    128 GB (Virtual)
    2 GB (Physical)
    Hard Drive
    500 GB
    Media Width
    Cut Sheet - 6"- 36"
    Roll Feed - 6" - 36"
    Media Thickness
    Roll: 0.07 - 0.8 mm (2.8 - 31.4mil)
    Maximum Roll Print Length
    Roll Feed - 59 (18 meters)
    Maximum Media Roll Diameter
    6.7" (170mm)
    Borderless Printing Width
    All sizes
    Paper Feed Method
    Roll Feed: One Roll, Front-loading, Front Output Front Loading Manual Feed: One Roll, Front Output LanguagesSGRaster, HPGL/2, HP-RTL, PDF, JPEG
    Noise Level Approx
    Operation: 51 dB (A) or less
    Standby: 35 dB (A) or less
    Acoustic Power: 6.9 Bels or less
    Physical Dimensions
    46“ x 55“ x 47“ (Main unit and TX Stacker; roll holder included, no inks, no print heads)
    46" x 55" x 39" (Main unit and TX Catch Basket Opened)
    Weight
    approx. 257 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
    approx. 231 lbs (Main unit and Catch Basket roll holder included, no inks, no print heads)
    Power Source
    AC-100-240V (50-60Hz)
    Power Consumption
    Maximum: 115W or less
    Standby 2.0W or less
    Power Off: 0.3W or less (Compliant with Executive Order)
    Operating Environment
    Temperature: 59°-86° F (15°-30° C)
    Relative Humidity: 10-80% (No Condensation) User-replaceable itemsPrint Head (PF-06)Maintenance Cartridge (MC-30)Ink Tanks (PFI-110/PFI-310/PFI-710)
    Software Included

    Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Printer Driver Extra Kit, Free Layout Plus, TX Unified Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select
