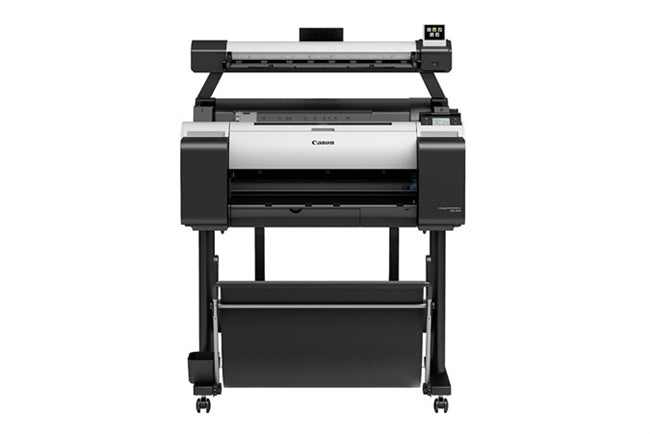

Canon imagePROGRAF TM-200 MFP L24ei 24" Printer

$4,720.00
$4,720.00
    Canon imagePROGRAF TM-200 MFP L24ei 24" Printer

    Tech Specs

    Printer Type


    5-Color 24-inch Printer

    Number of Nozzles


    Total: 15,360
    MBK: 5,120 nozzles
    C, M, Y, BK: 2,560 nozzles each

    Nozzle Pitch


    1,200 dpi
    Non-firing nozzle detection and compensation

    OS Compatibility


    Windows® 7, 8.1, 10 (32/64bit)
    Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
    Macintosh OS X v10.10.5-v10.12x

    Standard Interfaces


    USB 2.0 High-Speed
    10/100/1000 Base-T/TX
    Wireless LAN (IEEE 802.11 b/g/n)

    Ink Droplet Size


    5 picoliter

    Ink Capacity


    130 ml or 300ml per color

    Ink Droplet Size


    Pigment Ink

    Color Set


    Pigment: Matte Black, Black, Cyan, Magenta, Yellow

    Buffer Ram


    2 GB (Physical)

    Media Width


    Cut Sheet - 8- 24
    Roll Feed - 8 - 24

    Media Thickness


    0.07-0.8mm

    Maximum Roll Print Length


    Roll Feed - 59' (18 meters)

    Maximum Media Roll Diameter


    5.9 (150mm)

    Borderless Printing Width


    8, 10, 12, 14, 16 17, 20, 24 B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm)

    Paper Feed Method


    Roll Feed: One Roll, Top-loading, Front Output
    Cut Sheet: Top Loading, Front Output

    Languages


    SGRaster, HPGL/2, HP-RTL, JPEG

    Noise Level Approx


    Operation: 44 dB (A) or less
    Standby: 35 dB (A) or less
    Acoustic Power: 6.0 Bels or less

    Physical Dimensions


    42.0 x 38 x 34

    Weight


    approx.112 lbs (roll holder included, no inks, no print heads)

    Power Source


    AC-100-240V (50-60Hz)

    Power Consumption


    Maximum: 69W or less
    Standby 3.6W or less
    Power Off: 0.3W or less (Compliant with Executive Order)

    Operating Environment


    Temperature: 59°-86° F (15°-30° C)
    Relative Humidity: 10-80% (No Condensation)

    User-replaceable items


    Print Head (PF-06)Maintenance Cartridge (MC-31)Ink Tanks (PFI-120/PFI-320)Cutter Blade (CT-08)

    Software Included


    TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor †Scanner Type: Contact Image Sensor (CIS) technology
    Scan Accuracy: +/- 0.20%
    Speed: 3 ips monochrome, 1 ips color (Copy, Standard Mode)
    Optical Resolutions: 600 dpi
    Max Resolutions: 600 dpi
    Max. Document Size Width: 26 inch document width (24 inch image width)
    Length: 109 inch
    Thickness: 0.5mm
    Standard Interface: (Scan to USB) USB 2.0 / (Scan to Network) Gigabit ethernet
