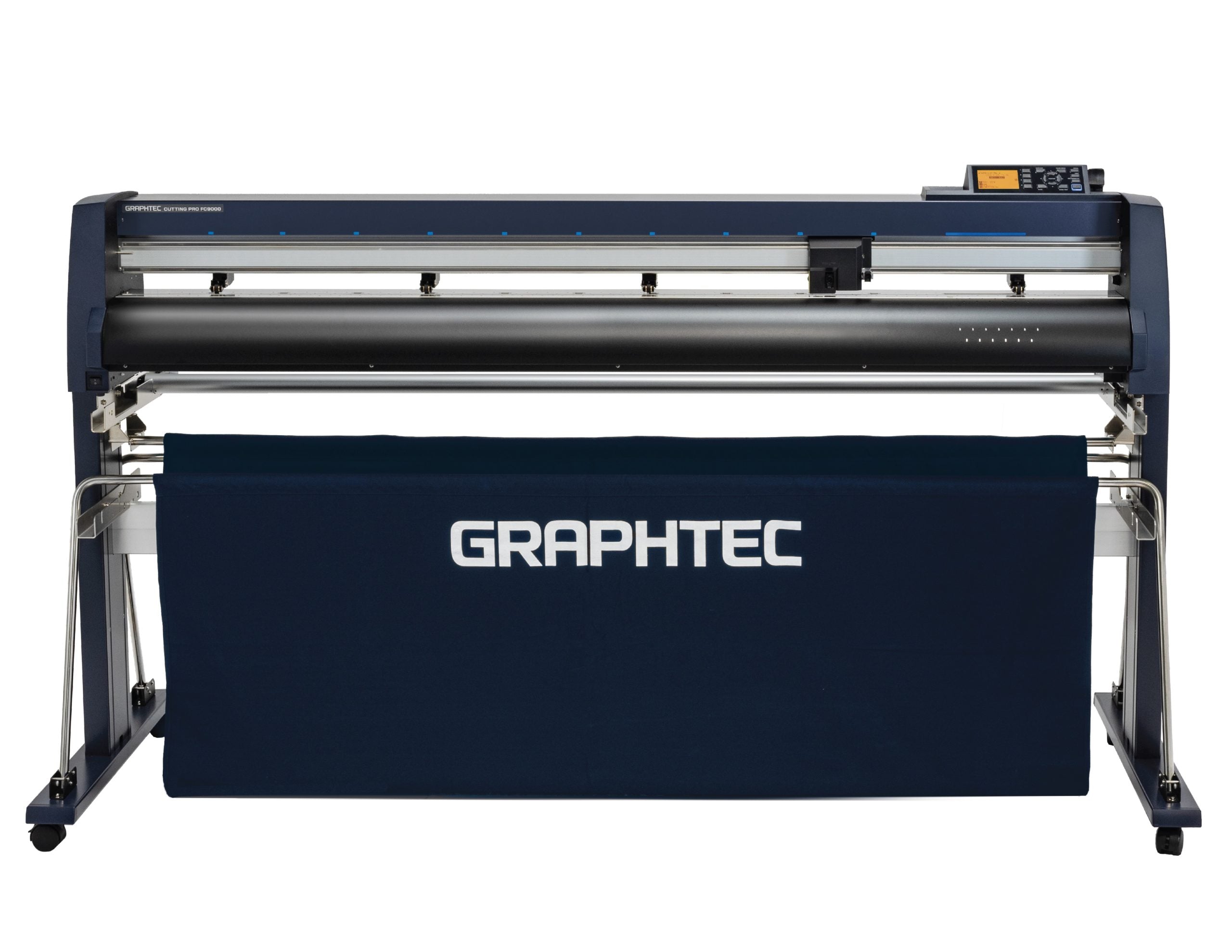

SALE - 64" Graphtec FC9000-160 Wide Cutter - New Open Box

$7,295.00
$7,295.00
  • Hurry, only 2 items left in stock!
SALE - 64" Graphtec FC9000-160 Wide Cutter - New Open Box

Tech Specs

Description

The flagship Graphtec FC9000 is their most advanced, versatile roll-fed cutting plotter to date.  Revered around the world for its dependable, high-precision cutting capabilities with both printed and unprinted materials, the FC Series Graphtec vinyl cutter is the ultimate finishing solution for the wide-format signage, apparel, and automotive industries. A newly developed feeding system and cutting head have further improved cutting quality of thin and thick materials ranging from delicate window tint to rigid magnet and high intensity reflective. ARMS 8.0 features the introduction of Graphtec’s Datalink barcode generation system which efficiently loads and processes your jobs automatically.

New FC 9000 features:

  • Flange kit (media handling system) is included with the FC9000, which was optional for the FC8600.
  • New USB Datalink where you can run the FC9000 from a USB thumb drive.
  • New grit roller configuration for longer tracking.
  • New stand and basket configuration.
  • New 8.0 ARMS for print and cut.
  • New barcode feature for print and cut.
  • New optional take-up reel for the FC9000-140 and 160 (see attached video)

DATALINK BARCODE

Save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button. DataLink supports any combination of RIP software & printer in addition to included Cutting Master 4 and Graphtec Pro Studio software. The FC9000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.

Specifications:

CPU:

32-bit CPU

Configuration:

Grit rolling plotter

Drive method:

Digital servo drive

Max. cutting speed:

58.5 inches per second (45 degree direction) 41.3 (axis direction)

Cutting force:

Max. 600 gf in 48 steps

Axial acceleration:

Max. 39.2 m/s2 (4 G) in 8 steps

Max. cutting area (WxL) (*1):

64in x 164ft 1626mm x 50m

Guaranteed precision cutting area:

63 in x 32ft , 35.2 in x 50 ft

Mountable media width (*2):

  • Min. 1.96 in
  • Max. 72.83 in

Max. cross cut width:

64 in

Number of push rollers:

4 rollers

Compatible roll media diameter:

Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)

Mechanical resolution:

0.005 mm

Programmable resolution:

GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Distance accuracy (*2):

Max. 0.1 mm or 0.1 % of plotted length

Repeatability (*2):

Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)

Minimum character size:

Approx. 5 mm alphanumeric (varies depending on character font and media)

Mountable number of tools:

1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed

Blade types:

Supersteel (0.9 mm or 1.5 mm diameter)

Pen types:

Water-based fiber-tip pen, Oil-based ballpoint pen

Pouncing tool type:

Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)

Media types (*3):

Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Sandblast resist rubber up to 1 mm thick

Compatible paper for pouncing:

Regular paper from 0.06 to 0.13 mm thick

Cross-cutter:

Built into the tool carriage

Perforation cutting:

Supported (performed by force control)

Interface:

USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

Buffer memory:

2 MB

Command sets:

GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)

Condition settings:

Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)

Display:

Graphic type LCD (3.7-inch, backlight)

Power source:

100 V to 240 V AC, 50 / 60 Hz

Power consumption:

AC100-240 V, 50/60 Hz

Operating environment:

50 to 95 ºF, 35 to 75 % R.H. (non-condensing)

Guaranteed accuracy environment:

60 to 89 ºF, 35 to 70 % R.H. (non-condensing)

External dimensions (W x D x H):

Approx. 84" x 28" x 48" (2130 x 711 x 1219 mm)

Weight (*8):

154 lbs. , 195lbs. /w take-up

Included software (*6):

Windows driver, Plotter controller, Graphtec Pro Studio (*5), Cutting Master 4, Graphtec Studio for Mac

Compatible OS (*5):

  • Windows 10 / 8.1 / 7
  • Mac OS X 10.6 to 10.11
  • Mac OS 10.12 to 1.14
  • Graphtec Studio: 10.6 to 10.14
  • Cutting Master 4: 10.7-10.14

Safety:

PSE, UL/cUL, CE mark)

EMC:

VCCI Class A, FCC Class A, CE mark

Re-engineered for greatness



The flagship FC9000 Series is Graphtec’s most advanced, versatile roll fed cutting plotter to date.

Revered around the world for its dependable, high-precision cutting capabilities with both printed and unprinted materials, the FC Series is the ultimate finishing solution for the wide format signage, apparel, and automotive industries.

A newly developed feeding system and cutting head has further improved cutting quality of thin and thick materials ranging from delicate window tint to rigid magnet and high intensity reflective.

ARMS 8.0 features the introduction of Graphtec’s Datalink Barcode Datalink System which efficiently loads and processes your jobs automatically.
