Print:
Printing Technology:
Advanced PrecisionCore TFP 10-channel, drop-on-demand printhead with ink-repelling coating technology
Minimum Ink Droplet Size:
Smallest droplet size: 3.5 picoliters; Variable Droplet Technology can produce up to three different sizes per line
Maximum Print Resolution:
2880 x 1440 dpi
Print Speed:
8" x 10" prints from 0:59 to 2:26; normal is 1:28
16" x 20" prints from 2:46 to 6:48; normal is 4:11
Nozzle Configuration:
Color and monochrome heads; 360 nozzles x 10
Ink:
Ink Type:
UltraChrome HDX pigment ink; 11-ink, 10-color
Ink Configuration:
Standard ink configuration: C, LC, VM, VLM, Y, LK, LLK, O, G and PK/MK
Fade Resistance / Print Longevity:
Color: up to 200 years; black-and-white: up to 400 years
General:
Operating Systems:
Apple macOS® 10.13.x-10.12.x, OS X®: 10.11x-10.7x
Microsoft® Windows®: 10, 8.1, 7 (32-bit, 64-bit)
Temperature:
Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)
Humidity:
Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)
Operating (recommended): 45 – 60% (no condensation)
Sound Level:
Less than 47 dB(A) according to ISO 7779
Dimensions:
Exit tray closed: 34.0" x 30.2" x 15.9" (863 x 766 x 405 mm)
Weight:
114.6 lb (52 kg)
Safety Approvals:
FCC part 15 subpart B class B (United States)
CAN ICES-3(B) / NMB-3(B) (Canada)
Country of Origin:
China
Warranty:
Standard 1-year usually next-business-day on-site repair with toll-free phone support Monday through Friday
Ink Supply System:
Ink Supply Fill Volume:
200 mL each color x 11 colors total
In-box Ink Fill Volume:
80 mL each color x 11 colors total
Ink Shelf Life:
2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.*
Printable Area and Accuracy:
Maximum Paper Width:
17"
Minimum Cut-sheet Size:
8" x 10" less margins
Line Accuracy:
+/- 0.2% of specified length (+/- 0.26 mm min.)
Maximum Printable Length:
529"
Sheet Media Handling:
Thickness:
up to 1.5 mm (0.059")
Single Sheet, Top-loading:
Single Sheet, Top-loading: 17" x 22"
Paper Cassette Multiple sheets up to 0.35 mm (0.014") thick, capacity varies by media, 250 sheet maximum on plain paper
Front Media Path Single sheet up to 1.50 mm (0.059") thick
Left/Right Margins:
3 mm each side; 6 mm or 0.24" total
Top/Bottom Margins:
3 mm each side
Roll Media Handling:
Single Roll-to-Roll / Top-loading Roll:
17" wide up to 0.05 mm thick
Media Core:
2" standard core, 3" adapters
Media Thickness:
0.08 to 0.5 mm (0.02") thick
Roll Cutting:
High-speed internal rotary cutter; auto or manual
Minimum Auto Cut Length:
5.0" plus top/bottom margin
Top/Bottom Margins:
varies by media 15, 3, 20, 35 or 0 when using borderless cut
Left/Right Margins:
3 mm each side; 0.24" total; or 0" at supported BorderFree® widths
Roll Paper Remaining:
printable barcode tracking system
Printer Details:
Printer Language:
Epson ESC/P® raster photographic drivers standard
Interfaces:
One Hi-Speed USB 2.0 port (1 port)
1000Base-T Ethernet (1 port)
Power:
Rated Voltage:
AC 110 – 240 V
Rated Frequency:
50-60 Hz
Power Consumption:
Printing: approx. 52 W
Ready: Approx. 19 W
Sleep: Approx. 2.0 W (1000 BaseT Ethernet in Standby)
Power off: Less than 0.5W
Rated Current:
0.7A
Auto-switching Black Ink Technology:
Black Ink Conversion Times, Normal Mode:
Matte to Photo Black: approx. 3:44
Photo to Matte Black: approx. 2:25
Black Ink Conversion Times, Quick Mode:
Matte to Photo Black: approx. 2:00
Photo to Matte Black: approx. 0:58

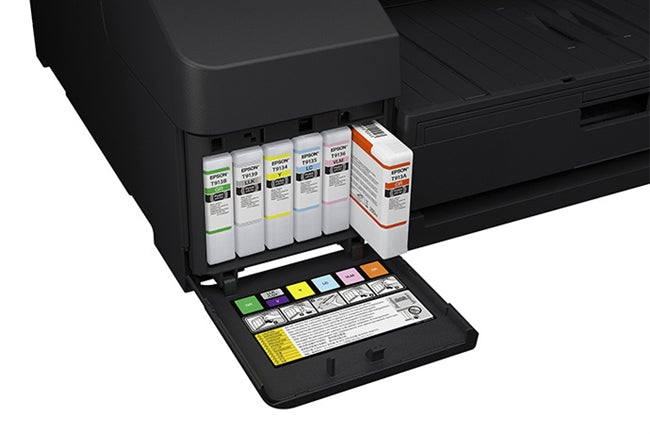

Epson Intelligent Ink Cartridges:
In-box Cartridge Fill Volume:
80 mL each color x 11 colors total
Retail Cartridge Fill Volume:
200 mL each color x 11 colors total
Ink Cartridge Shelf Life:
2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink*.
