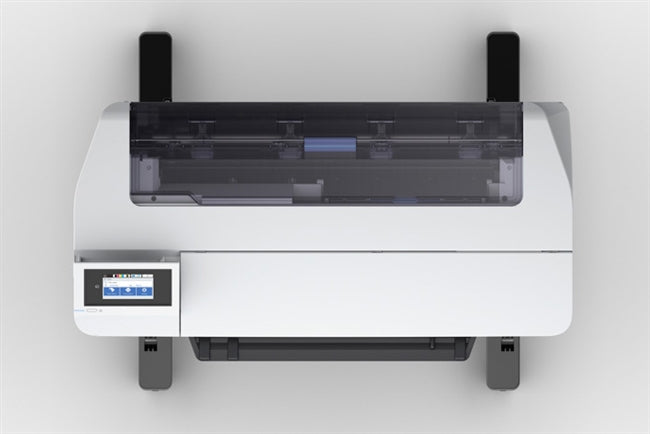

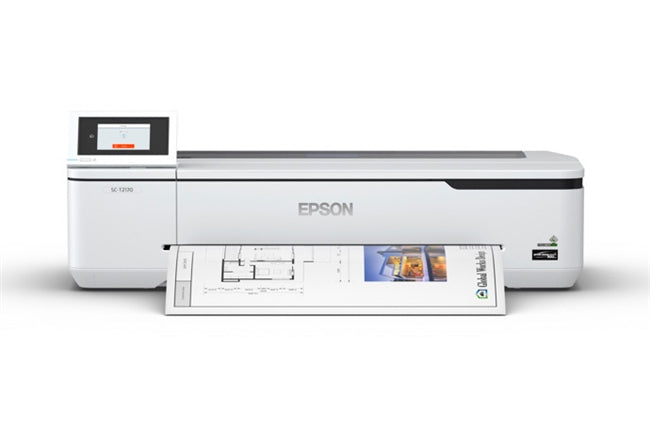

Epson SureColor T2170 24-Inch Wireless Printer
Print:
Printing Technology:PrecisionCore MicroTFP 4-channel, drop-on-demand printhead
Minimum Ink Droplet Size:
4 picoliters; Variable Droplet Technology can produce up to three different sizes per line
Maximum Print Resolution:
2400 x 1200 dpi
Print Speed:
A1/D-sized print: 43 seconds
Nozzle Configuration:
Color and monochrome heads; 800 nozzles x 4 channels
Ink:
Ink Type:
UltraChrome XD2 pigment ink; 4-color (C, M, Y, K)
UltraChrome XD2 pigment ink; 4-color (C, M, Y, K)
Replacement Ink:
- Ink Cartridge (26 ml)
- Cyan T40V220
- Magenta T40V320
- Yellow T40V420
Ink Cartridge (50 ml)
- Black T40V120
- Cyan T40W220
- Magenta T40W320
- Yellow T40W420
Ink Cartridge (80 ml)
Black T40W120
General:
Operating Systems:
macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP
Temperature:
- Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
- Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
- Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)
Humidity:
- Operating: 20–80% (no condensation)
- Operating (Recommended): 45–60% (no condensation)
- Storage: 5–85% (no condensation)
Sound Level:
- Operating: Approx 49 dB(A)
- Sleep: Approx 32 dB(A)
Dimensions:
- Without Stand: 38" x 20" x 9" (970 x 505 x 230 mm)
- With Stand: 38" x 28" x 36" (970 x 696 x 913 mm)
Weight:
- Without Stand: 60 lb (27 kg)
- With Stand: 84 lb (38 kg)
Eco Features:
- ENERGY STAR® qualified
- RoHS compliant
- Recyclable product
- Epson America, Inc. is a SmartWay® Transport Partner
Safety Approvals:
UL (MET), FCC (Class A), CSA, CE, EMC
Country of Origin:
Indonesia
Warranty:
Standard 1-year usually next-business day on-site repair with toll-free phone support Monday through Friday
Printable Area and Accuracy:
Maximum Paper Width:
24"
Minimum Cut-sheet Size:
8.27 x 11 (1 sheet and ASF)
Minimum Paper Width:
Roll: 13"/Sheet: 8.27"
Maximum Printable Length:
Limited by application, OS and driver/RIP used
Sheet Media Handling:
Sheet Loading:
Auto Sheet Feeder, up to 11" x 17"
Single Sheet, Top-loading:
Up to 24" wide
Left/Right Margins:
0 to 3 mm each (0.24" total)
Roll Media Handling:
Single Roll-to-Roll / Top-loading Roll:
Up to 24" wide
Media Core:
2” User-adjustable roll media adapters
Maximum Roll Diameter:
Up to 4.3"
Media Thickness:
Up to 8.6 mil
Roll Cutting:
High-speed internal rotary cutter; auto or manual
Roll Paper Remaining:
The amount of remaining paper can be controlled from the control panel
Printer Details:
Display:
4.3" Touchscreen
Printer Language:
ESC/P raster, HP-GL/2, HP RTL
Interfaces:
SuperSpeed USB (compatible with USB 3.0 specification), Wireless LAN IEEE (802.11 b/g/n), Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct
Power:
Rated Voltage:
AC 110–240 V
Rated Frequency:
50–60 Hz
Power Consumption:
- Printing: Approx. 28 W
- Ready: Approx. 8 W
- Sleep: approx. 1.6 W
- Power Off (Stand By): 0.2 W
Rated Current:
1.4 A
Epson Intelligent Ink Cartridges:
In-box Cartridge Fill Volume:
Colors (C,M,Y) 26 mL, Black (K) 50 mL
Retail Cartridge Fill Volume:
Colors (C,M,Y): 26 or 50 mL, Black (K): 50 or 80 mL
Ink Cartridge Shelf Life:
2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink. *
Specification Notes:
Specification Notes:
* This printer is designed for use with Epson genuine cartridges and ink only, not third-party cartridges or ink. For more information, see www.epson.com/wideformatink
1) Print speeds are based on the print engine speed only. Total throughput time for any print depends on workstation configuration, file size, print resolution, ink coverage, networking, etc. Actual print speeds will vary.
2) Product size excluding optional stand.
3) Most features require an Internet connection to the printer, as well as an Internet- and/or email-enabled device. For a list of Epson Connect™ enabled printers and compatible devices and apps, visit www.epson.com/connect
4) Wi-Fi CERTIFIED™; level of performance subject to the range of the router being used. Wi-Fi Direct may require printer software.
5) Cartridge yields vary considerably based on images printed, print settings, paper type, frequency of use and temperature. For print quality, a variable amount of ink remains in the cartridge after the “replace cartridge” indicator comes on. The printer ships with full set of initial cartridges (CMY – 26 mL/Black – 50 mL) and part of the ink from the first cartridges is used for priming the printer.
6) High-volume cutting of canvas and heavy media stocks may require frequent cutter replacement.
7) Allowed by printer driver for Mac and PC. Application, version of application and operating system version may limit maximum length.
8) For the latest drivers, visit www.epson.com/support
9) For convenient and reasonable recycling options, visit www.epson.com/recycle
10) SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
