• COMPLETE SOLUTION - HP Latex 360 64in Printer - Refurbished (90 Days, 1, 2, 3 or 4 Years Warranty) + 54" Graphtec FC8600-130 High Performance Vinyl Cutting Plotter - Refurbished (90 Days Warranty) + 55in Full-auto Cold Laminator w/Heat Assisted
1 1

www.wideimagesolutions.com

COMPLETE SOLUTION - HP Latex 360 64in Printer - Refurbished (90 Days, 1, 2, 3 or 4 Years Warranty) + 54" Graphtec FC8600-130 High Performance Vinyl Cutting Plotter - Refurbished (90 Days Warranty) + 55in Full-auto Cold Laminator w/Heat Assisted

Latex 360 Printer Warranty Period
$13,497.99
$13,497.99
    COMPLETE SOLUTION - HP Latex 360 64in Printer - Refurbished (90 Days, 1, 2, 3 or 4 Years Warranty) + 54" Graphtec FC8600-130 High Performance Vinyl Cutting Plotter - Refurbished (90 Days Warranty) + 55in Full-auto Cold Laminator w/Heat Assisted

    Tech Specs

    Business Financing Available

    Note - Printer does not include inks or Starter Supplies, those are sold separately

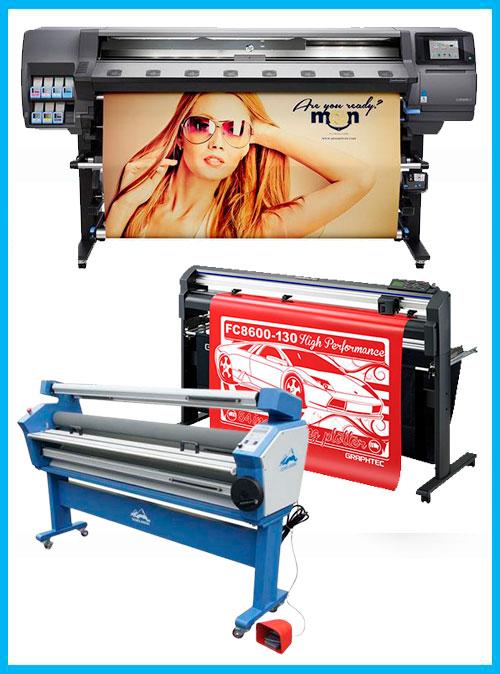

    This Package includes:

    • HP Latex 360 64in Printer - Refurbished (90 Days, 1, 2, 3 or 4 Years Warranty)
    • 54" Graphtec FC8600-130 High Performance Vinyl Cutting Plotter - Refurbished (90 Days Warranty)
    • 55in Full-auto Wide Format Cold Laminator with Heat Assisted

    HP Latex 360 64in Printer

    HP Latex inks have many benefits over even eco-solvent inks, as they are odourless, of a high-quality and have significant health advantages. You don’t need to specially ventilate this printer, or attach hazard labels to it – the water-based inks are nickel-free, non-flammable and non-combustible.

    The versatility makes the HP Latex 360 ideal for print companies providing a range of different services for their clients. As well as the ability to print on various substrates, including textiles, users have access to an intuitive 8-inch touchscreen, through which they can save print profiles and fine-tune jobs to achieve the best possible results every time.

    Printing times are speedy too – the maximum speed the 360 can print at is 91m²/hr (980ft²/hr); 31m²/hr (334ft²/hr) on its high-speed outdoor quality setting, and 17m²/hr (183ft²/hr) on indoor quality.

    Thanks to the HP Latex 360’s innovative inks and curing processes, prints also come out dry and odourless. This means there are no special ventilation requirements, so the printer can be placed almost anywhere in your studio or office – great for those normally restricted by a lack of space.

    Key features

    • Maximum printing speed is 91m²/hr (980ft²/hr).
    • Print up to 64 inches.
    • Print a wider variety of signage and graphics, including billboards, hoardings, taxi wraps, outdoor banners, and more.
    • Achieve high-quality, 1200 dpi images with six colours.
    • No additional ventilation, hazard labels or HAPs are required, and the ink is nickel-free.
    • Perfect for producing outdoor prints, as they last up to five years when laminated, three when not.

    Technical specifications

    Printing

    Printing modes

    91 m²/hr (980 ft²/hr) - Max Speed (1 pass)
    31 m²/hr (334 ft²/hr) - Outdoor High Speed (4 pass)
    23 m²/hr (248 ft²/hr) - Outdoor Plus (6 pass)
    17 m²/hr (183 ft²/hr) - Indoor Quality (8 pass)
    14 m²/hr (151 ft²/hr) - Indoor High Quality (10 pass)
    6 m²/hr (65 ft²/hr)- Backlits, Textiles, and Canvas (16 pass)
    5 m²/hr (54 ft²/hr) - High Saturation Textiles (20 pass)

    Print resolution

    Up to 1200 x 1200 dpi

    Margins

    5 x 5 x 0 x 0 mm (0.2 x 0.2 x 0 x 0 in) (without edge holders)

    Ink types

    HP Latex Inks

    Ink cartridges

    Black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer

    Cartridge size

    775 ml

    Printheads

    6 (2 cyan/black, 2 magenta/yellow, 1 light magenta/light
    cyan, 1 HP Latex Optimizer)

    Color consistency

    <= 2 dE (95% colors)
    <= 1 dE average22

    Media

    Handling

    Roll feed; take-up reel; automatic cutter (for vinyl, paperbased media, backlit polyester film)

    Media types

    Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, textiles

    Roll size

    254 to 1625-mm (10 to 64-in) rolls (580 to 1625-mm (23 to 64-in) rolls with full support)

    Roll weight

    42 kg (92.6 lb)

    Roll diameter

    250 mm (9.8 in)

    Thickness

    Up to 0.5 mm (19.7 mil)

    Applications

    Banners, Displays, Double-sided banners, Exhibition, Event graphics,
    Exterior signage, Indoor posters, Interior decoration, Light boxes – film,
    Light boxes – paper, Murals, POP/POS, Posters, Textile, Vehicle graphics

    Connectivity

    Interfaces (standard)

    Gigabit Ethernet (1000Base-T)

    Dimensions (w x d x h)

    Printer

    2561 x 840 x 1380 mm (101 x 33 x 54 in)

    Shipping

    2795 x 760 x 1250 mm (110.1 x 30 x 49.3 in)

    Weight Printer

    207 kg (456 lb)

    Shipping

    301.5 kg (665 lb)

    54" Graphtec FC8600-130 High Performance Vinyl Cutting Plotter

    Description:
    The FC8600 series high performance cutting plotter is an industry leader for sign makers, graphic artists, automotive aftermarket professionals, countertop installers and other related users. The FC8600 series features a maximum cutting speed of 58.5 in/sec, 4.0G maximum acceleration, and 20 to 600g selectable cutting forces, allowing users to process diamond grade, high-intensity reflective film, sandblast resist rubber, automotive window & paint protection films, self-adhesive vinyl, Amberlith™  and Rubylith™ , among other media types.

    Features:
    • 3 inch wide user-friendly LCD control Panel, a Dual configuration function (two-user set and save customized conditions), included Ethernet capability (run multiple machines from one location), and an option for additional push rollers with 3 tension settings and the new 5th Generation ARMS system (automatically detects registration marks with color variants).

    • Graphtec’s next generation ARMS system adjusts for several types of potential print distortions, allowing for accurate contour cutting of pre-printed images and decals.
    New Features of the New ARMS
    •  Optical Sensor for Auto Alignment
    •  Sensitivity adjustment for registration mark detection on various media and colors.

    PERF CUT ENABLED high performance cutters finish the job!
    • With its included perf cut enabled custom tool settings—you have the ability to perforate cut all the way through your pre printed vinyl media for pop-out full-color stickers and decals without damaging your blade or cutting plotter machine.



    • New manufacturing technologies, along with the latest engineering advancements, have allowed Graphtec to make an unprecedented move forward in the industry. High performance features have been added to the new series yet its competitive pricing remains.
    • With the world’s fastest throughput performance and superb accuracy, the new FC8600 series accommodates the most demanding cutting and plotting projects and provides users with the versatility needed for a wide variety of applications.

    Specifications
    Model
    CPM-FC8600-130
    CPU
    32-Bit
    Configuration
    Digital Servo Friction feed with MicroGritroll™ drive
    Contour Cutting
    Automatic
    Class
    Pro Vinyl Cutters
    Intended Use
    Professional

    Max. cut width
    (expanded mode)
    1372 mm (54 in)

    Max Cutting Length
    15,240mm (600 in)
    Mountable media
    Max. width
    1529 mm (60.2 in)
    Min. width
    50 mm (2 in)
    Max. cross cut area
    1496 mm (58.9 in)
    Max. cutting speed (Axial)
    1485 mm / sec (58.5 in/s) at a 45° angle
    Max. axial acceleration
    4.0 G (39.2 m/s2)
    Cutting pressure
    20 g to 600 g (0.196 N to 5.88 N) in 48 steps
    Min. character size*1
    3 mm (0.125 in) alphanumeric Helvetica med. Font
    Mechanical resolution
    0.005 mm (0.0002 in)
    Programmable resolution
    GP-GL : 0.1 / 0.05 / 0.025 / 0.01 mm , HP-GL™ : 0.025 mm
    Repeatability*2
    Max. 0.1 mm / 2 m (0.0039 in / 80in)
    Tools
    Accepts (1) cutting blade, (1) plotting pen, or (1) pouncing tool ; Second penholder (optional)
    Motor Type
    Servo
    Blade types
    Supersteel (0.9 mm or 1.5 mm), Sapphire(1.5 mm)
    Pen types
    Water-based fiber-tip, oil-based ballpoint, and disposable ink pens
    Pouncing tool type
    Requires optional pouncing tool : (PPA33-TP12, 1.2-mm pin diameter)
    Media types
    Self-adhesive vinyl film, diamond grade, fluorescent film, reflective film, AmberlithTM , RubylithTM , window film, high-intensity reflective film*3 , paint protection film, up to 0.25 mm tick , sandblast resist rubber up to 1 mm thick, etc.
    Compatible paper for pouncing
    Regular paper from 0.06 to 0.13 mm thick
    Standard interfaces
    RS-232C / USB2.0 (Full speed), Ethernet
    Buffer memory
    2 MB
    Command sets
    GP-GL / HP-GLTM*4
    LCD display Graphic type
    3 inches LCD backlight type
    Power supply
    100 to 240 VAC/50 to 60 Hz (Auto switching)
    Power consumption
    160 VA max.
    Operating environment
    Temperature: +10°C to +35°C
    Humidity: 35 % to 75 % (non-condensing)
    Guaranteed accuracy environment
    Temperature: +16°C to +32°C
    Humidity: 35 % to 70 % (non-condensing)
    External dimensions (W x D x H) including stand*5
    1878 x 715 x 1219 mm
    73.9 x 28.1 x 48 in
    Weight including stand
    54 kg (119 lbs)
    Compatible OS
    Windows 2000 / Windows XP / Windows Vista Macintosh OS 10.2 or later
    Certifications
    UL, CUL, CE marking, RoHS, China RoHS




    55in Full-auto Wide Format Cold Laminator with Heat Assisted

    Qomolangma 55in full-auto wide format roll to roll top heat assist laminator and mounting machine. No wrinkle, no silvering, no slidding!
    Equipped with heat on the top roller to activate the adhesive on your pressure sensitive lamination film, you can rest assured that you will achieve the perfect finish every time.
    WA series designed for wide format laminating or mounting application use. Entry level Full-auto roll to roll model with metal sheet construction.

    Used for:
    A perfect fit for entry level customer, who is looking for an affordable and professional cold laminator for projects. This new model can be widely used for pre - masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on.
    Cold roll laminators are the perfect option for someone looking to enter the wide format graphics market. Equipped with all of the features needed to produce most applications, Qomolangma cold roll laminator promises quality, performance and safety – at an affordable price.
    • Great for mounting prints to boards
    • Over laminating digital prints
    • Applying application tapes, applying double side adhesives and vinyl
    Remark: Trimmer cutting function for your option, if you want this function, please choose "with trimmer"

    Features:
    • Good color reducibility and light transmittance, free of bubbles and snowflake point!
    • Free heavy duty floor stand with caster wheels
    • Laminates graphics up to 55in wide
    • Drop in type interchangeable 3 inches aluminum shaft
    • Manual nip adjustment up to 1.38 inch for handling of most substrates
    • 102mm (4in) bigger rollers for best quality laminating control
    • Safety eyes for increased operator safety
    • Foot switch for hands free operation
    • Removable front worktable for easy film setup
    • Adopt new - style aluminum alloy supporting roller.
    • One side hand crank lift up system
    • Button type control panel
    • Variable speed control
    • Forward and reverse direction control
    • E-stop and photocell installed for safety
    • Both auto and foot pedal switch mode
    • Removable pressure plate
    • Stand assembled at customer site

    Specification:
    Electrical Requirements: AC110V / 50 - 60Hz, AC230V / 50 - 60Hz
    Heated Rollers: Heat Assist
    Maximum Roller Temperature: 140F (60C)
    Maximum Speed: 19.685 ft / min (6m / min)
    Maximum Substrate Thickness: 1.38in (35mm)
    Maximum Working Width: 55in (1400mm)

    Usage:

    Qomolangma Laminator's Advantages:
    Hand crank and electric lifting: compared with pneumatic lifting structure, the roll parallel setting is more stable, meet the needs of high end customers with high laminating quality request, and there are fewer after-sales problems;
    Rubber roller: the original raw rubber roller has good elasticity and durability compared with the recycled rubber;
    Mechanical installation: the sheet metal is cut by laser to ensure the correct installation of the mounting hole, so as to ensure that the unwind/rewind shaft is parallel and finishing lamination is without wrinkle and air-bubble;
    Electric wiring: the design of electrical structure is humanized and easy to operate.

    Application:
    Sign & display, window graphics, banner, poster, POP, vehicle wrapping, wallpaper, cutting sheet sticker, labels & decals, proof, POS display, package, sign board,  flyer, document finishing, floor graphics, rigid and flexible indoor displays, board and many more.
