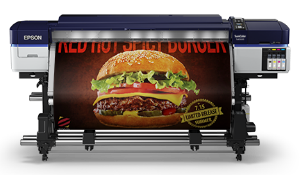

Epson SureColor S40600 64" Production Edition Printer

$10,995.00
$10,995.00
    Epson SureColor S40600 64" Production Edition Printer

    Tech Specs

    Print:

    Printing Technology:
    • Advanced PrecisionCore® TFP® Print Head
    • 8-channel, drop-on-demand, inkjet Print Head
    • 4 Color (C,M,Y,K)
    • Solvent Based Ink Chemistry
    Minimum Ink Droplet Size: 4.2 picoliters; Variable Droplet Technology
    Maximum Print Resolution: 1440 x 1440 dpi
    Maximum Printable Area: 63.6"
    Print Speed:
    • Draft - 610 sqft/hr
    • Production: Banner - 215 sqft/hr, Vinyl 170 sqft/hr
    • Quality: Banner - 170 sqft/hr, Vinyl - 140 sqft/hr
    Nozzle Configuration: Color and Monochrome 720 nozzles per Color

    Ink:

    Ink Type: UltraChrome® GS3
    Ink Configuration: CMYK
    Replacement Ink:
    • Black T890100
    • Cyan T890200
    • Magenta T890300
    • Yellow T890400
    The printer is designed exclusively for use with EPSON cartridges for greater reliability.

    General:

    Operating Systems: Mac OS X 10.8x - 10.11x; Windows 10, 8.1, 7 (64-bit)
    Server Systems: Windows® 7, 8, Windows Vista® o Windows XP (64 bits)
    System Requirements: Intel i7 or better 6GB memory recommended
    Temperature:
    • Operating: 50 to 95 degrees F (10 to 35 degrees C)
    • Storage: -4 to 104 degrees F (-20 to 50 C)
    Humidity:
    • Operating: 20-80%
    • Operating (Recommended): 40-60%
    • 5-85% (no condensation)
    Sound Level: Approximately 59 dB according to ISO 7779
    Dimensions: 103" x 34" x 53" (2616 mm x 609 mm x 1346 mm) W x D x H
    Weight: 615 lb (278 kg)
    Warranty:
    • Standard one-year on-site next business day service with toll-free phone support Monday thru Friday.
    • Optional Epson SureColor S40600 Extended service plans available for purchase for up to three years of total coverage.

    Ink Supply System:

    Ink Supply Fill Volume: 700 mL x 4 colors total
    Ink Shelf Life: 2 years from printed production date or 6 months after open

    Printable Area and Accuracy:

    Maximum Paper Width: 64"
    Minimum Paper Width: 12"
    Maximum Printable Length: Maximum printable length limited by software application, OS, media length, and RIP

    Roll Media Handling:

    Maximum Roll Diameter: Up to 250mm
    Maximum Roll Weight:Up to 95lbs

    Printer Details:

    Software Included:
    Front-End RIP Workflow by Onyx GamaPrint Pro PANTONE licensed PostScript Language Level 3 Compatible RIP by Onyx. Includes full workflow software with layout, nesting, tiling, custom spot color management, custom media support and RIP queue functionality. The Epson SureColor S40600 is also supported by most leading third-party RIPs and workflows.
    Interfaces:
    • One Hi-Speed USB 2.0 (1.1 Compatible)
    • One Gigabit Ethernet Port

    Power:

    Power Supply Voltage: Two (2) 110v Outlets
    Rated Voltage: AC 100 - 120 V, AC 200 - 240 V
    Rated Frequency: 50 - 60 Hz
    Power Consumption:
    • Operating: Approx. 650W or less
    • Standby Heaters On: Approx 520W
    • Standby Heaters Off: Approx 30W or less
    • Power Off: Approx 0.6 W or less
    • Sleep Mode: Less than 3.5W
